Industrial Swing Barrier

TECHNOSPACIO SWING BARRIER-380
Overview

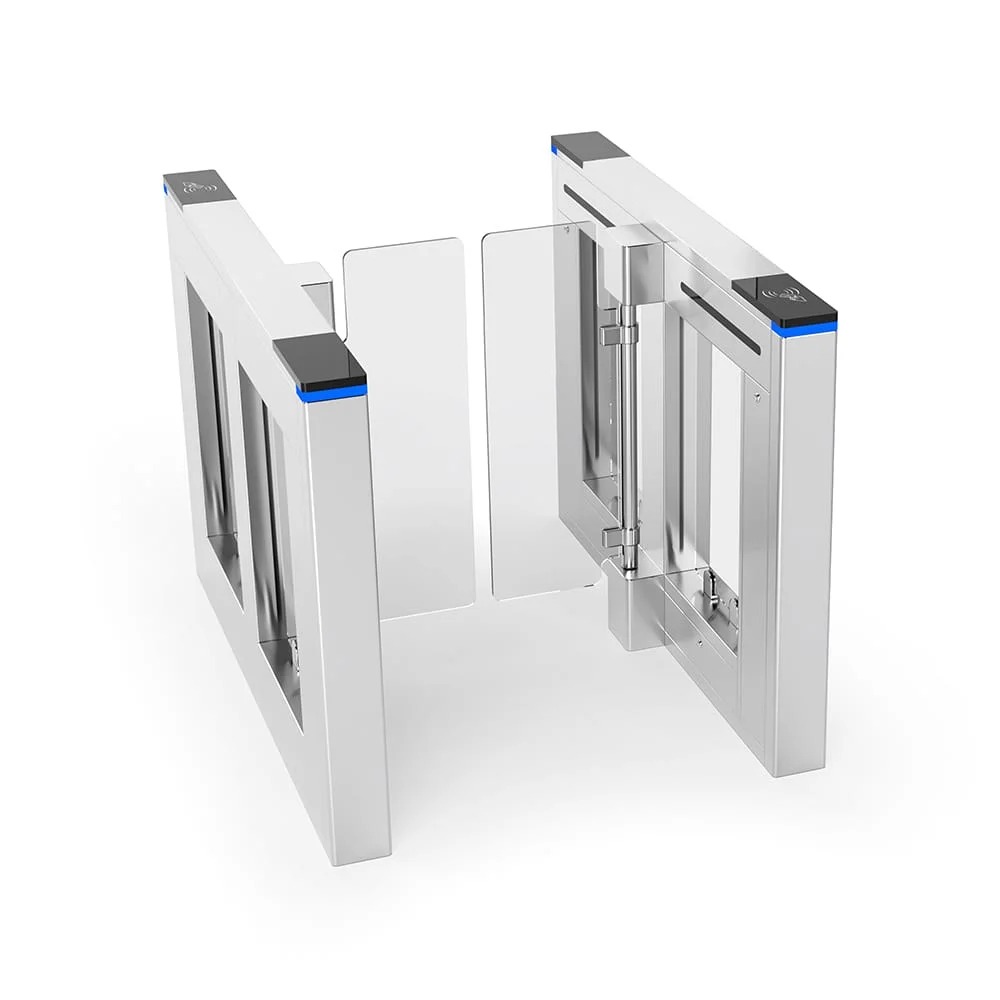

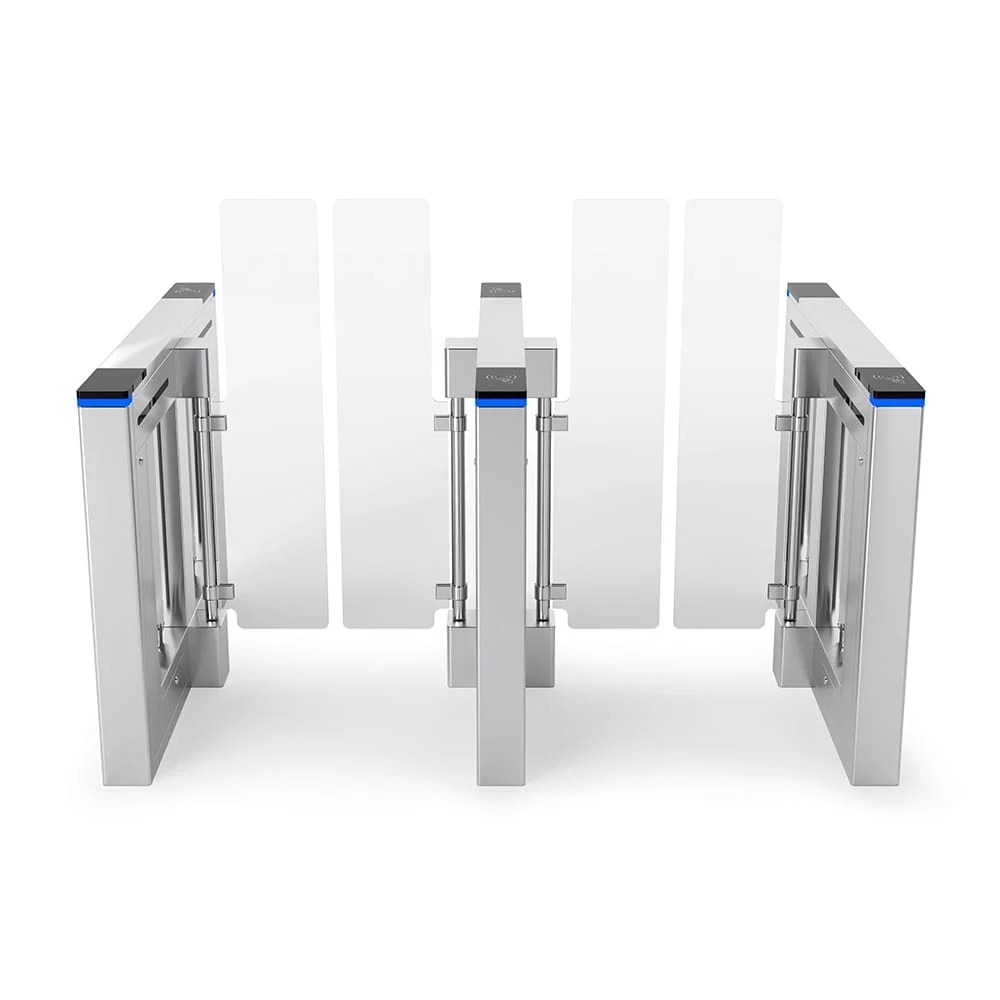

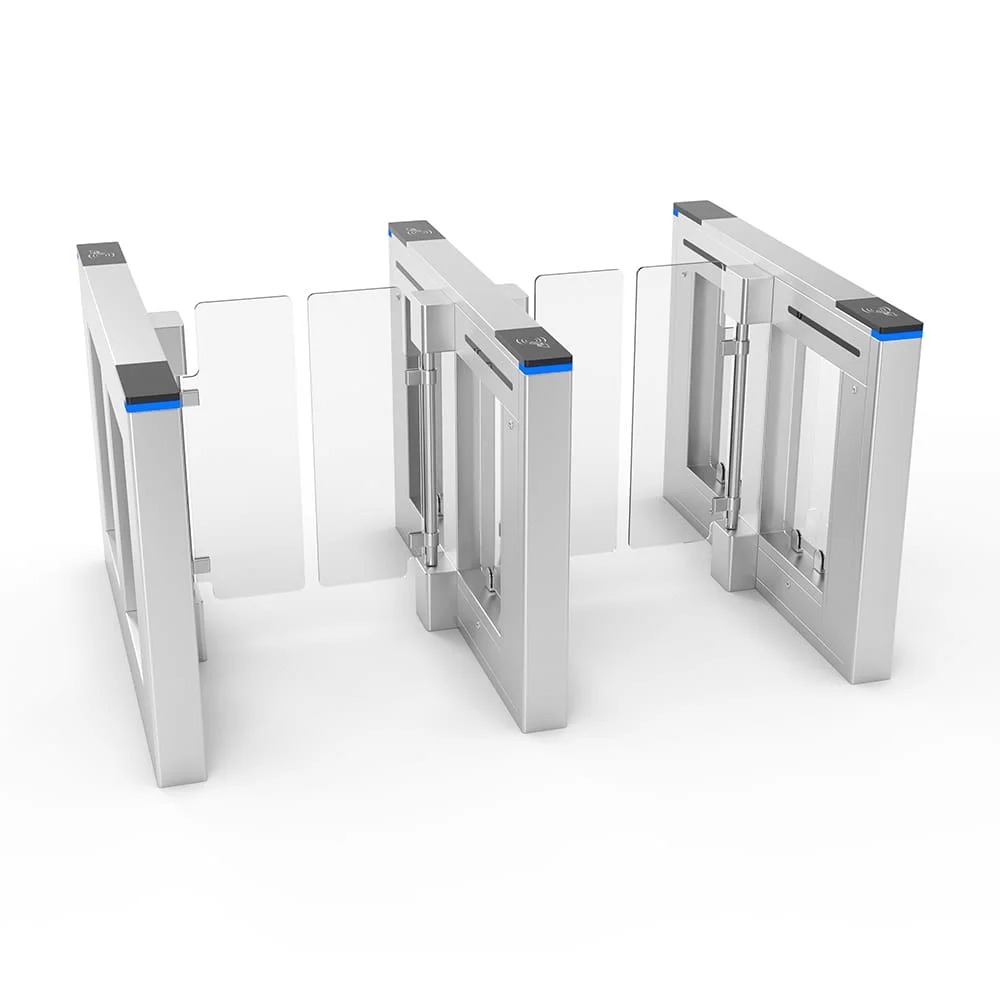

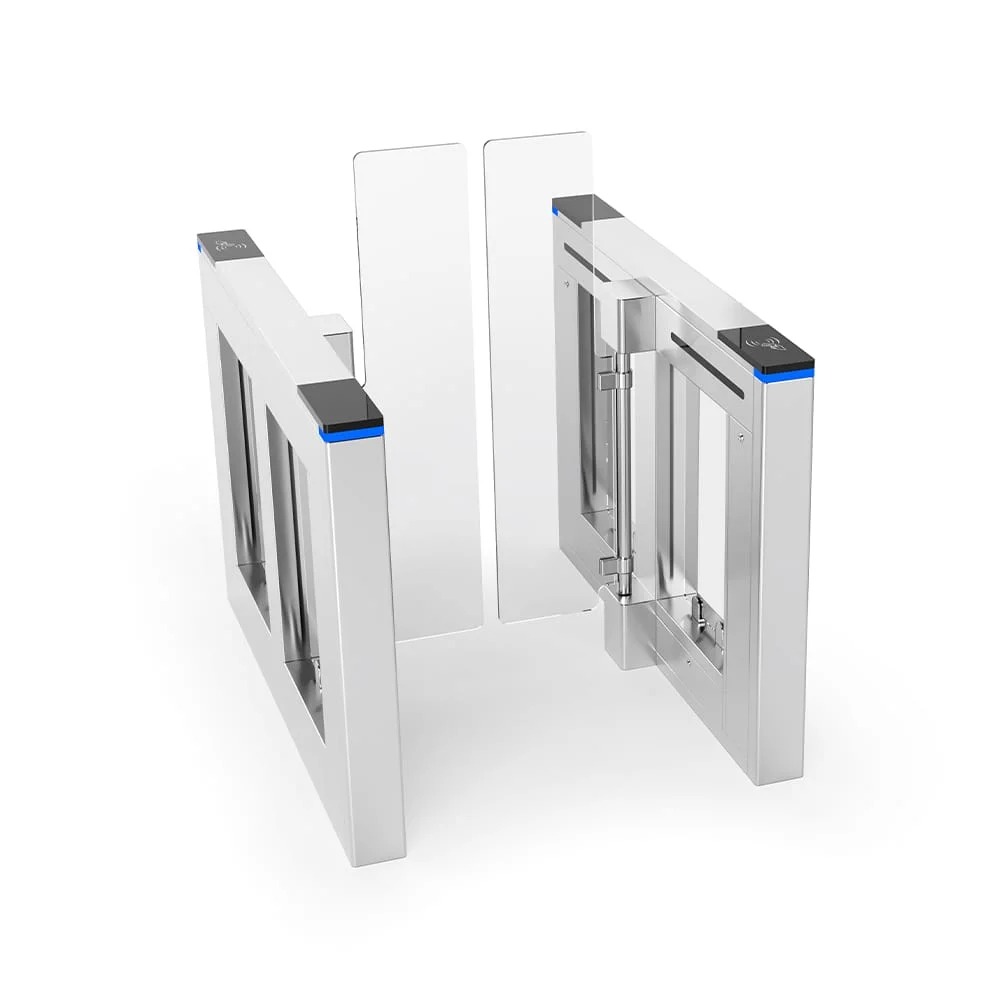

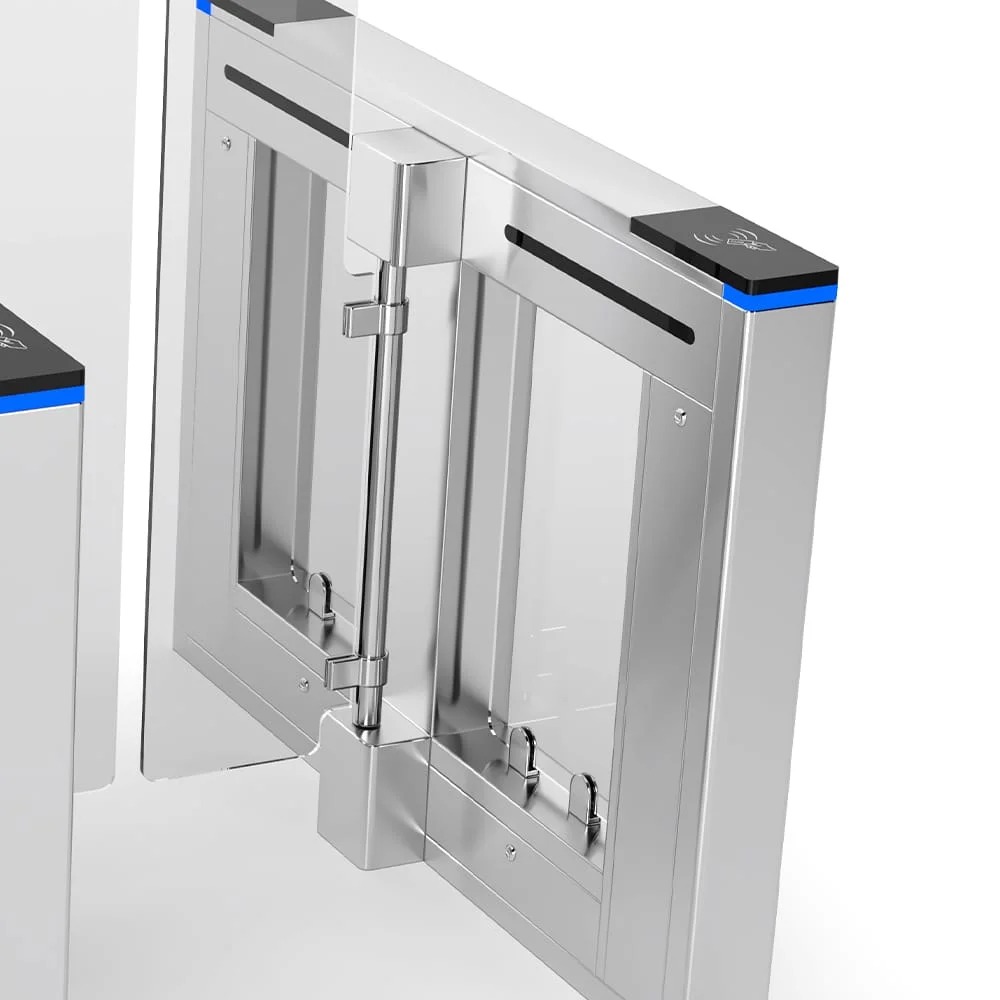

The Technospacio Swing Barrier-380 gates are stylish waist-high security speed gates that operate on the swing open principle with glass (or plastic) panels acting as the barrier gate. Depending on which side of the Swing Lane the person approaches, the gate when authorised, will swing open in the opposing direction allowing them passage through the controlled lane. The Swing Lane has the ability to embed most manufacturers access control readers beneath its top glass cover, and with the intuitive LED user indication and guidance, this security speed gate encompasses safety with high traffic flow capacity. It is offered with different dimensions of swinging gates, which enables lane widths of up to 1000mm.

Brushless Motor
60W Power
30 People/min
Wide Passage
IR Sensors
IP54 Rated
Voice Prompt
×
Flow Rate

0

pass/minute

Max Lane Width

0

mm

Protection Grade

IP54

indoor / covered

Brand Name TECHNOSPACIO
Model Name TS-S-380

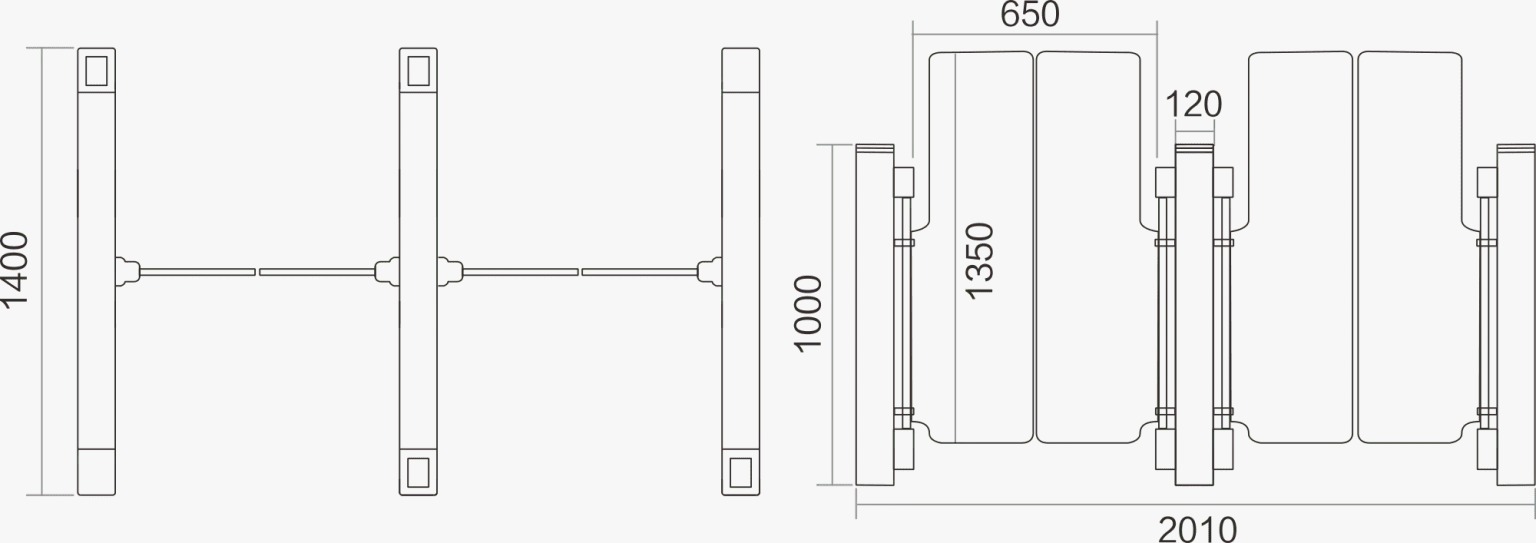

Dimensions 1400 × 120 × 1000 mm
Cabinet Material 304 Stainless Steel
Material Thickness Top Cover: 1.2 mm + Body: 1.5 mm
Passage Width ≤ 1000 mm
Passage Indicator Soft LED Indicator Light on Top + Door RGB 3-Color Welcome Lamp
Operating Environment Indoor / Outdoor (Covered)
Power Rate 60 W
Power Supply AC 100–264V
IP Rating IP54
Drive Mechanism Brushless DC Motor
Traffic Direction Configurable for Unidirectional or Bidirectional Flow
Control Signal Relay Contact Signal (Dry Contact)
Operating Temperature -28°C to +80°C
Passage Speed ≥ 30 Persons/Minute
MCBF DC Brushless Motor: 5 Million Cycles
Servo Motor: 10 Million Cycles
Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Smooth Swing Operation

Motorized swing gates ensure fast and silent movement

SUS304 Body

Stainless steel cabinet for durability and corrosion resistance

Low Power Consumption

Energy-efficient brushless motor reduces power usage

Long Life Mechanism

High-quality motor and components ensure long service life

Wide Passage Access

Supports wheelchair and luggage-friendly access

Anti-Tailgating

Infrared sensors allow only one person per authorization

Safe Design

Obstacle detection ensures user safety during operation

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
