Technospacio Boom Barrier-300

Overview

The Technospacio-Boom Barrier-300 Series is a high-reliability DC brushless boom sbarrier designed for continuous operation in demanding environments such as apartments, toll gates, factories, and commercial parking systems. With a 24V brushless motor, adjustable speeds, and IP65 protection, the system delivers long service life, smooth operation, and stable performance in all weather conditions.

24V Motor

Sec OpenTime

Fast Operation

100% Duty

IP54 Rated

DC Brushless Motor

Get Quote Download Datasheet

Opening Speed

0

sec max

Pole Length

0

meters

Duty Cycle

100%

continuous

     Brand Name
    TECHNOSPACIO


     Model
    TS-B-300


     Operating Speed
    1.5 to 6 Seconds


Boom Length 3 m to 6 m

Boom Type Telescopic Straight Boom

     Motor Type
    DC 24V Brushless Motor


Output Power 150 W

     Operating Voltage
    DC 24V


Power Supply AC 220V/110V, 50Hz–60Hz

     Remote Control Distance
    ≤ 30 m


Operating Temperature -30°C to +75°C

     Protection Level
    IP54

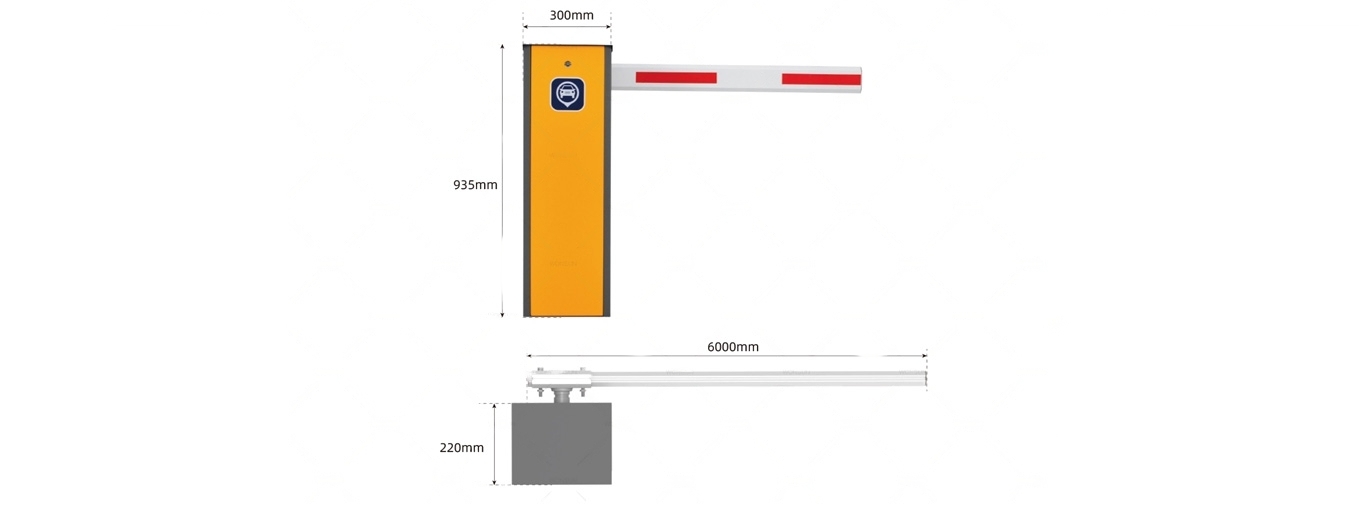

Chassis Dimensions 320 × 265 × 960 mm

     MCBF
    5 Million Cycles


Apartment Entry

Vehicle access control

Industrial Gates

Factory & warehouse control

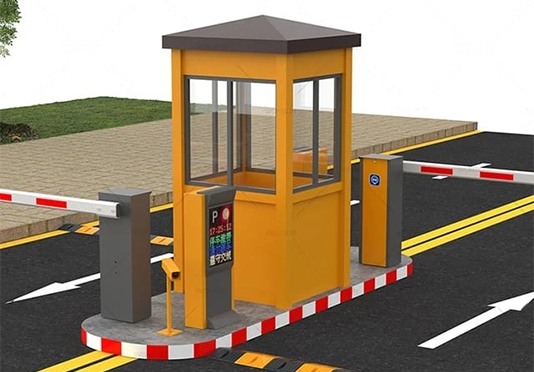

Parking Systems

Mall & office parking

Toll & Security

RFID & LPR integration

100% Duty Cycle

Designed for continuous operation without overheating

Brushless Motor

Energy-efficient 24V motor with planetary gearbox

Heavy Cabinet

2mm rust-resistant iron housing

No Limit Switch

End-position detection without mechanical switches

Adjustable Speed

Variable opening and closing speed control

Dual Springs

Enhanced durability and balanced movement

Left/Right Config

Bi-directional mainshaft installation

Industrial Boom Barrier Gate

TECHNOSPACIO-BOOMBARRIER-300
