Industrial Speed Barrier Gate

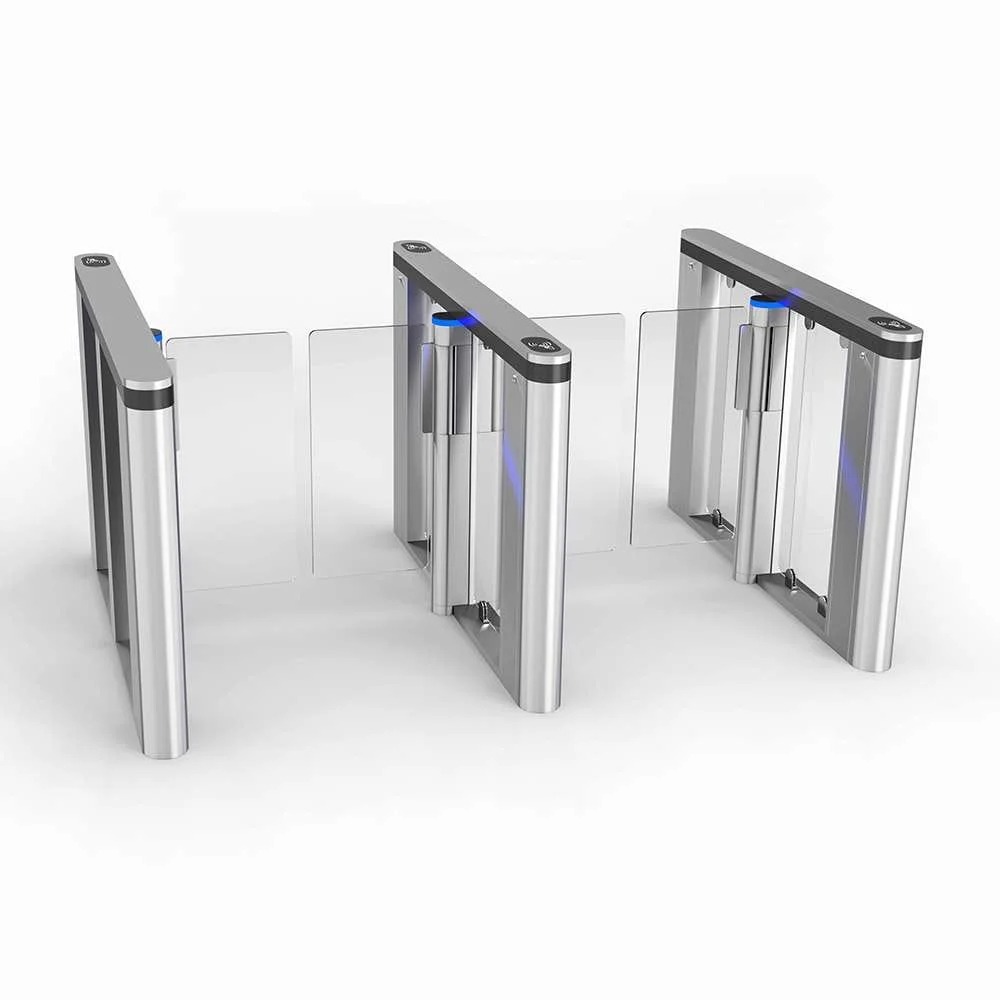

TECHNOSPACIO SPEED GATE-500
Overview

The Technospacio Speed Barrier Gate-500 provide fast and reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space. It features for slim and stylish appearance. full body with clear tempered glass/lazer pattern acrylic (optonal) adaptable to match any aesthetic requirements, while still retaining high level security features.

Servo Motor
60W Power
40 People/min
Wide Passage
IR Sensors
IP54 Rated
Voice Prompt
×
Throughput

0

pass/minute

Lane Width

0

mm

Direction

Dual

mode

Brand Name TECHNOSPACIO
Model Name TS-SG-500

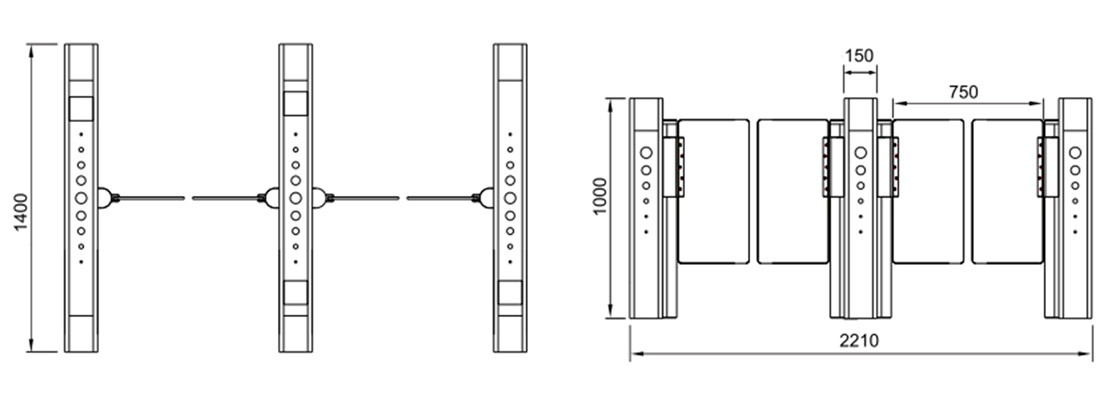

Dimensions 1400 × 120 × 1000 mm
Material Thickness SUS304 Stainless Steel + Side Glass Panels + Black Acrylic Top Lid
Passage Width 600–900 mm
Passage Indicator Soft LED Indicator Light on Top + Door RGB 3-Color Welcome Lamp
Operating Environment Indoor / Outdoor (Covered)
Power Rate 60 W
Power Supply AC 110–220V, 50/60Hz
IP Rating IP54
Drive Mechanism DC Servo Motor
Traffic Direction Configurable for Unidirectional or Bidirectional Flow
Control Signal Relay Contact Signal (Dry Contact)
Operating Temperature -40°C to +60°C
Passage Speed 30–40 Persons/Minute
MCBF 10 Million Cycles
Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Smooth Swing Operation

Motorized swing gates ensure fast and silent movement

SUS304 Body

Stainless steel cabinet for durability and corrosion resistance

Low Power Consumption

Energy-efficient motor reduces power usage

Long Life Mechanism

High-quality motor and components ensure long service life

Wide Passage Access

Supports wheelchair and luggage-friendly access

Anti-Tailgating

Infrared sensors allow only one person per authorization

Safe Design

Obstacle detection ensures user safety during operation

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
