Industrial Speed Barrier Gate

TECHNOSPACIO SPEED GATE-650
Overview

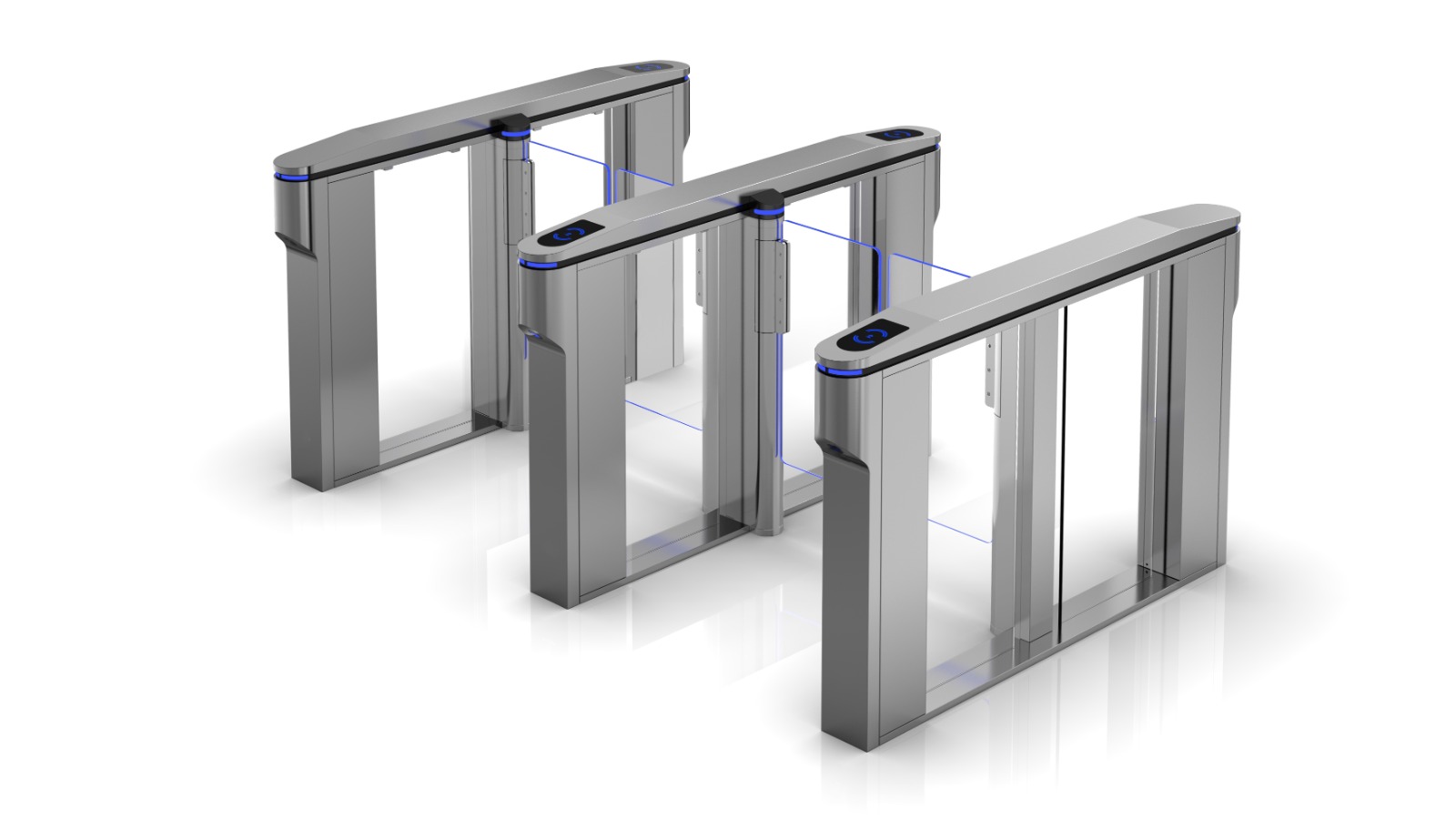

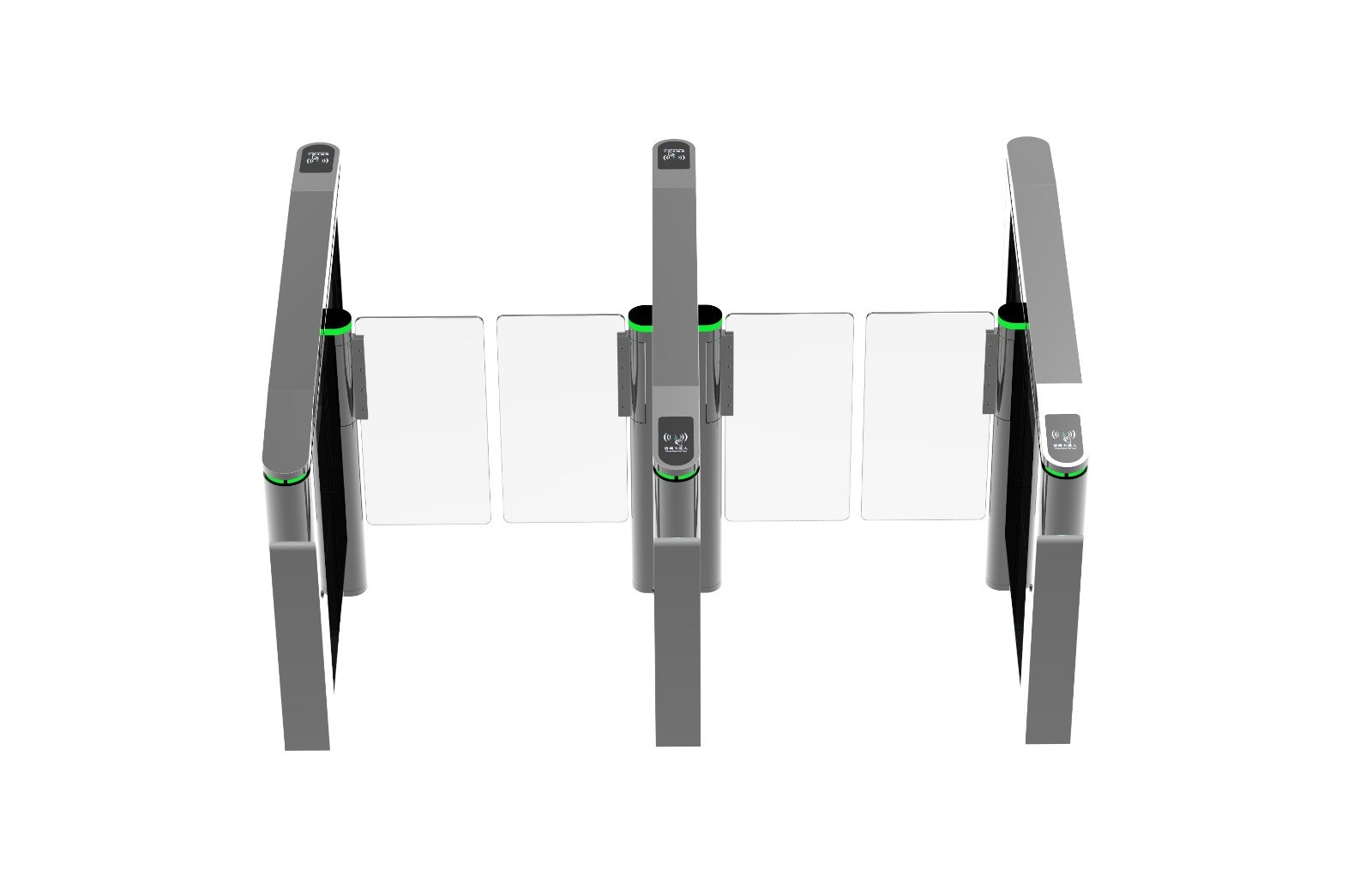

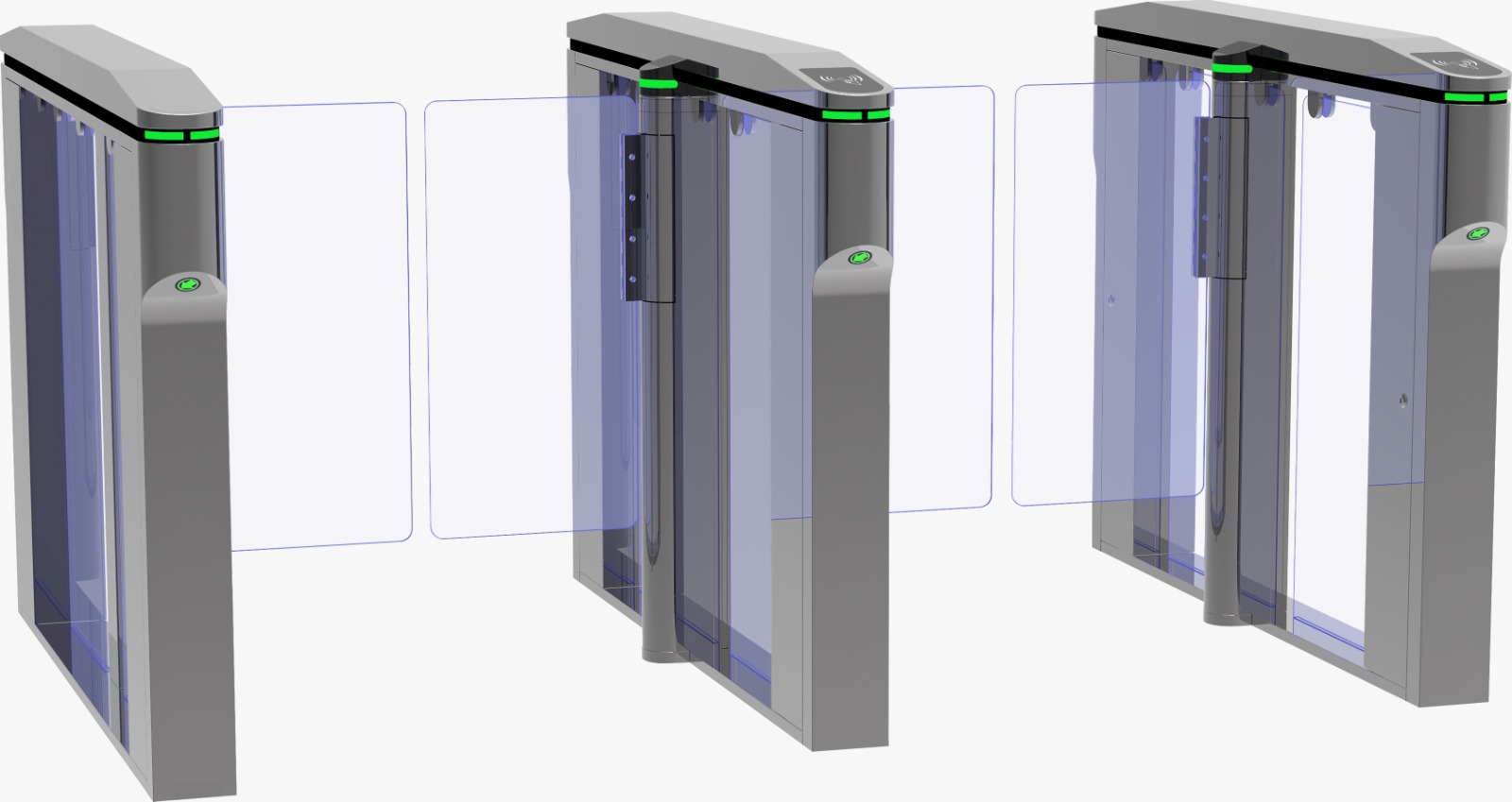

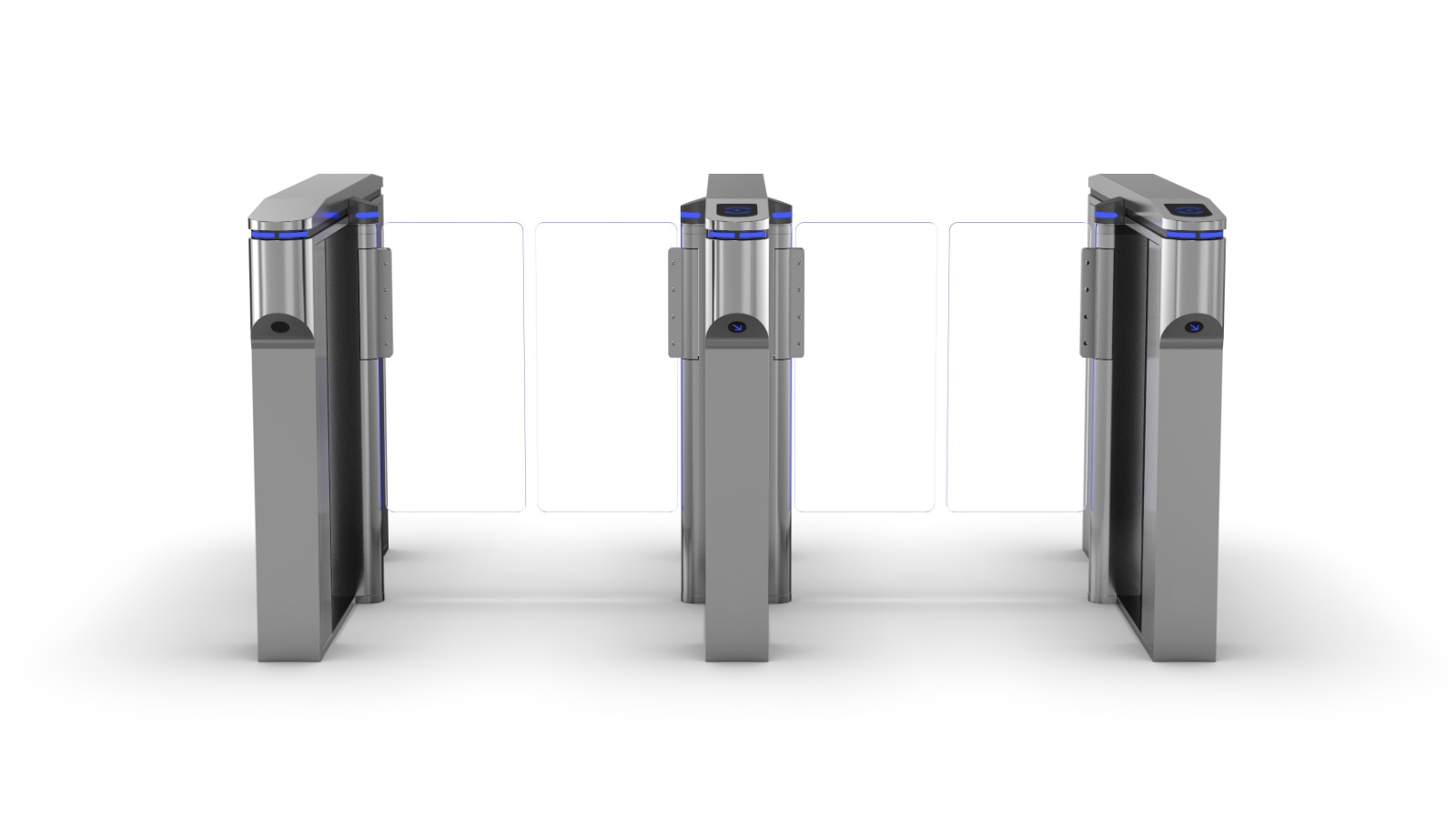

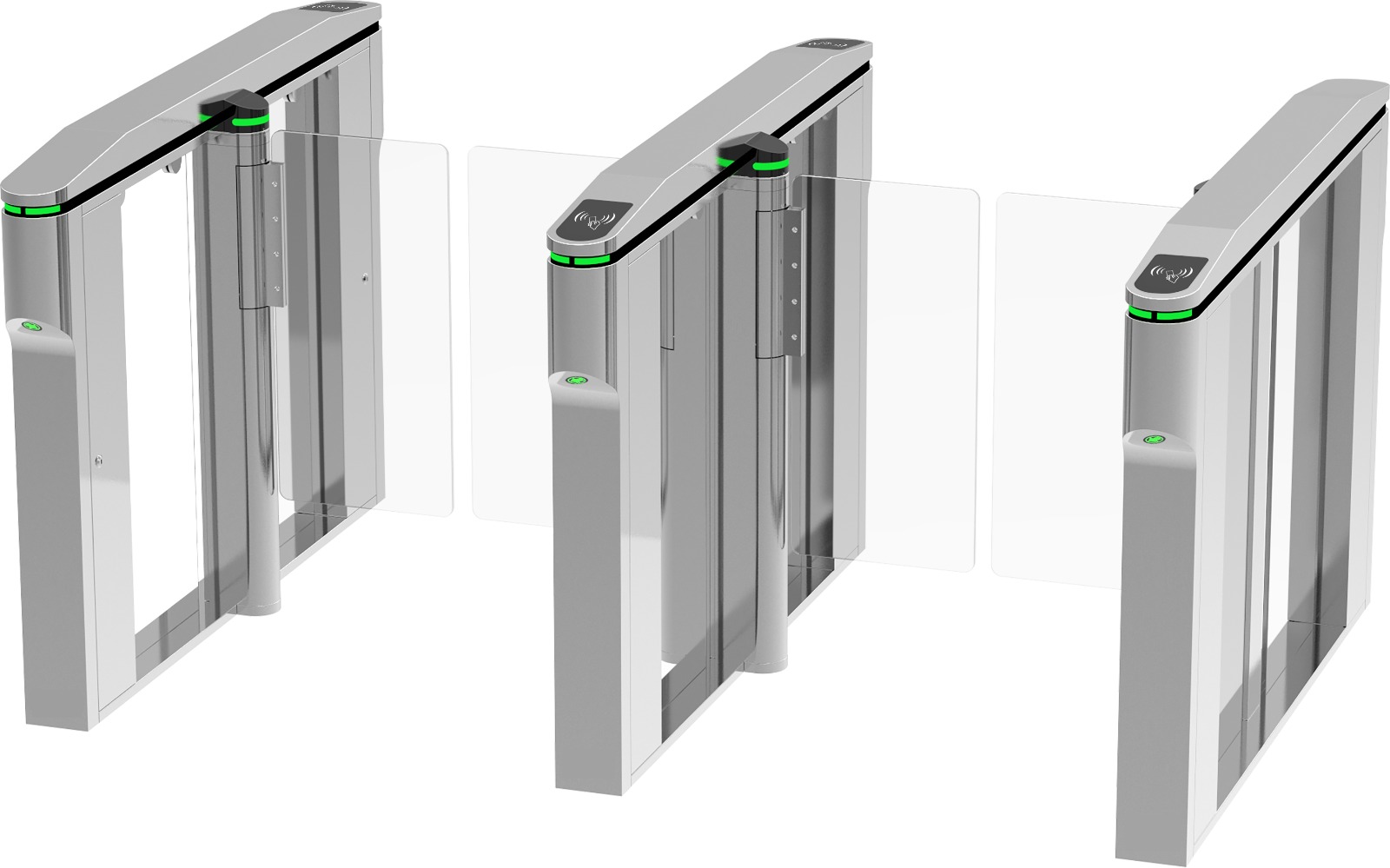

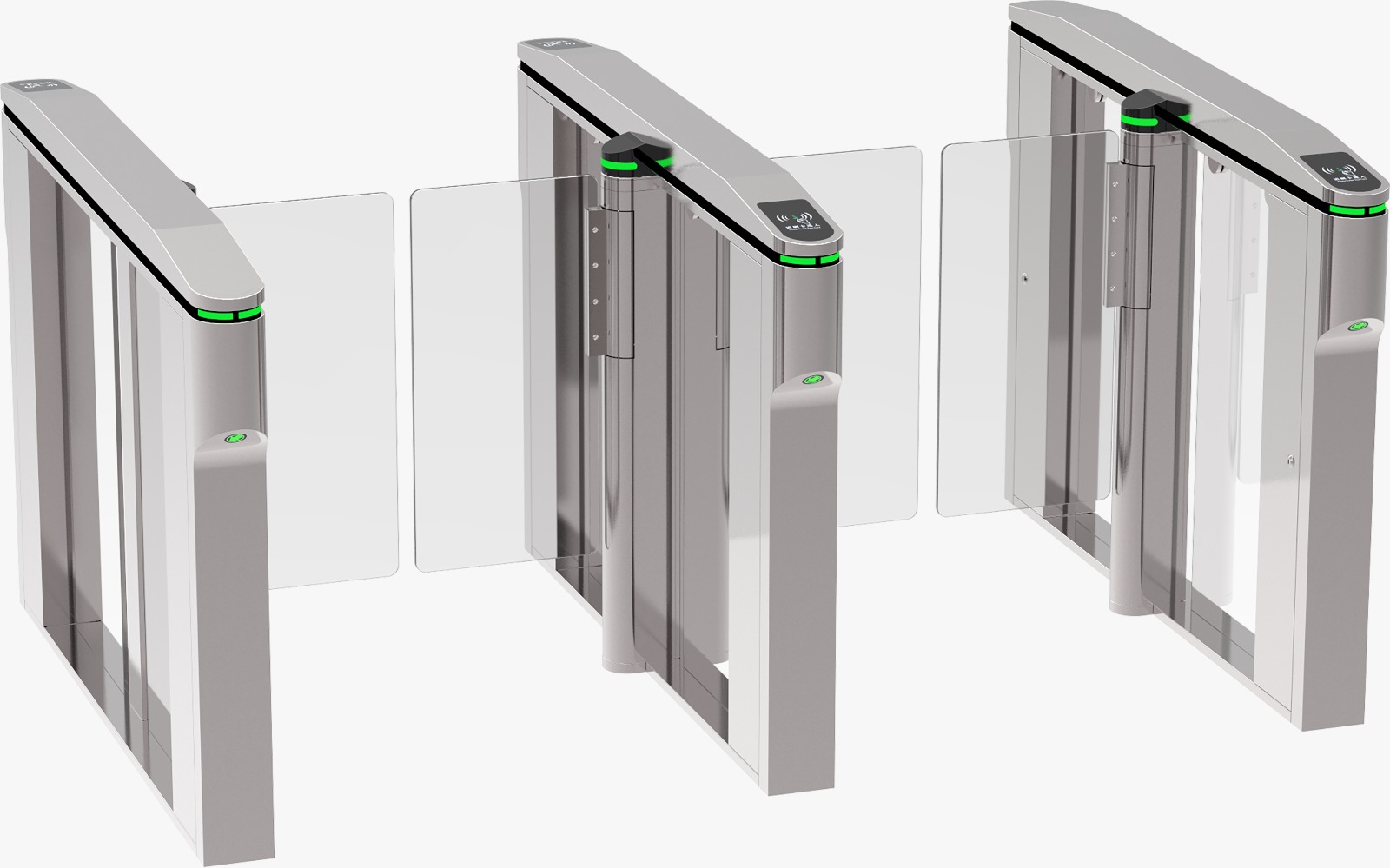

The Technospacio Elegant High-Speed Gate TS-SG-650 is designed to provide fast, reliable and secure access control for modern building entrances. Combining advanced security features with a sleek and stylish design, it seamlessly integrates into corporate offices, commercial buildings, residential complexes, airports and other high-traffic environments. The gate features a slim stainless-steel body with clear tempered glass barriers, while laser-pattern acrylic panels are available as an optional customization. Its elegant design can be adapted to match various architectural and aesthetic requirements without compromising security or performance.

Servo Motor
100W Power
40 People/min
Wide Passage
IR Sensors
IP54 Rated
Voice Prompt
×
Throughput

0

pass/minute

Lane Width

0

mm

Direction

Dual

mode

Brand Name TECHNOSPACIO
Model Name TS-SG-650
Dimensions 1509 × 160 × 1019 mm
Material Thickness SUS304 Stainless Steel + Side Glass Panels + Black Acrylic Top Lid
Passage Width 600–900 mm
Passage Indicator Soft LED Indicator Light on Top + Door RGB 3-Color Welcome Lamp
Operating Environment Indoor / Outdoor (Covered)
Power Rate 100 W
Power Supply AC 110–220V, 50/60Hz
IP Rating IP54
Drive Mechanism DC Servo Motor
Traffic Direction Configurable for Unidirectional or Bidirectional Flow
Control Signal Relay Contact Signal (Dry Contact)
Operating Temperature -40°C to +60°C
Passage Speed 30–40 Persons/Minute
MCBF 10 Million Cycles
Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Smooth Swing Operation

Motorized swing gates ensure fast and silent movement

SUS304 Body

Stainless steel cabinet for durability and corrosion resistance

Low Power Consumption

Energy-efficient motor reduces power usage

Long Life Mechanism

High-quality motor and components ensure long service life

Wide Passage Access

Supports wheelchair and luggage-friendly access

Anti-Tailgating

Infrared sensors allow only one person per authorization

Safe Design

Obstacle detection ensures user safety during operation

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
