TS-ESD
Introduction

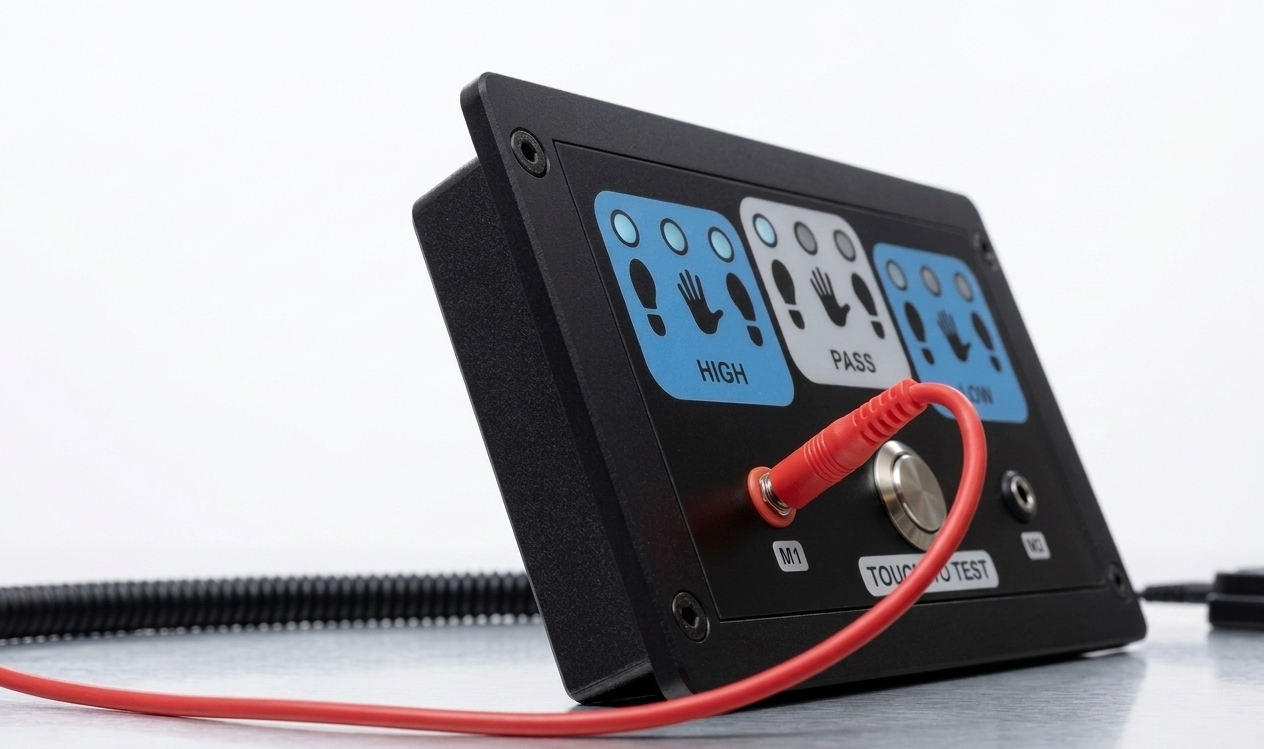

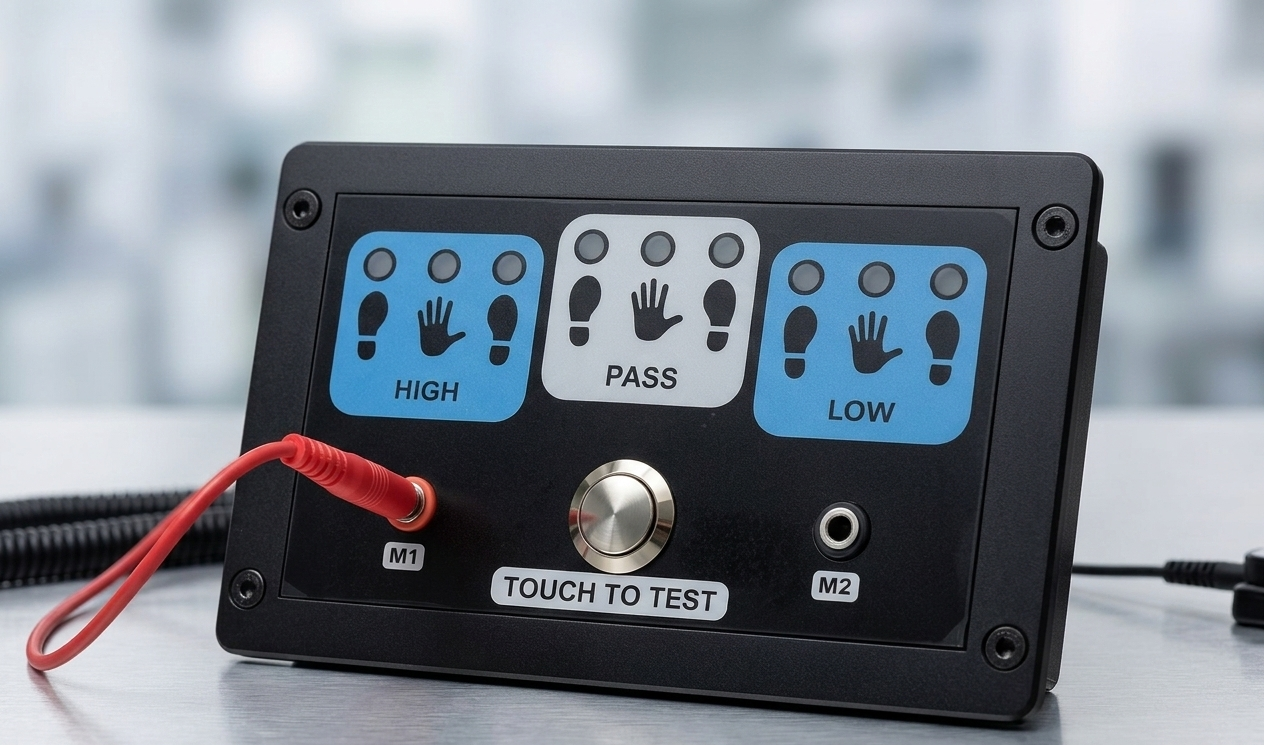

The TS-ESD Tester Kit with Display Unit is a robust and reliable product designed for precise ESD testing. It ensures compliance with safety standards and provides accurate results for wrist straps, anti-static shoes, and other ESD-related parameters. Its compact design and advanced features make it an ideal choice for industrial and commercial applications.
Appearance

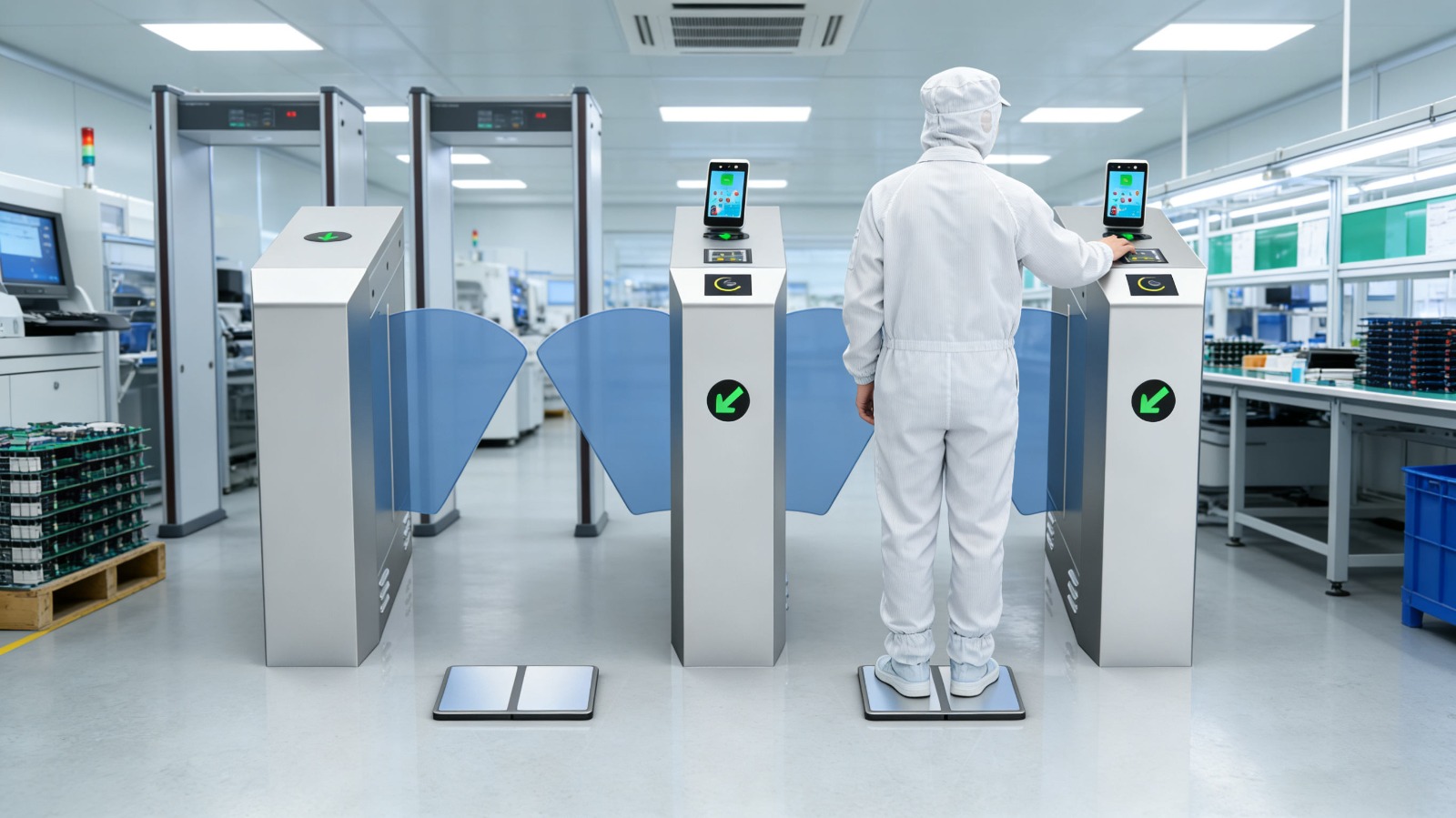

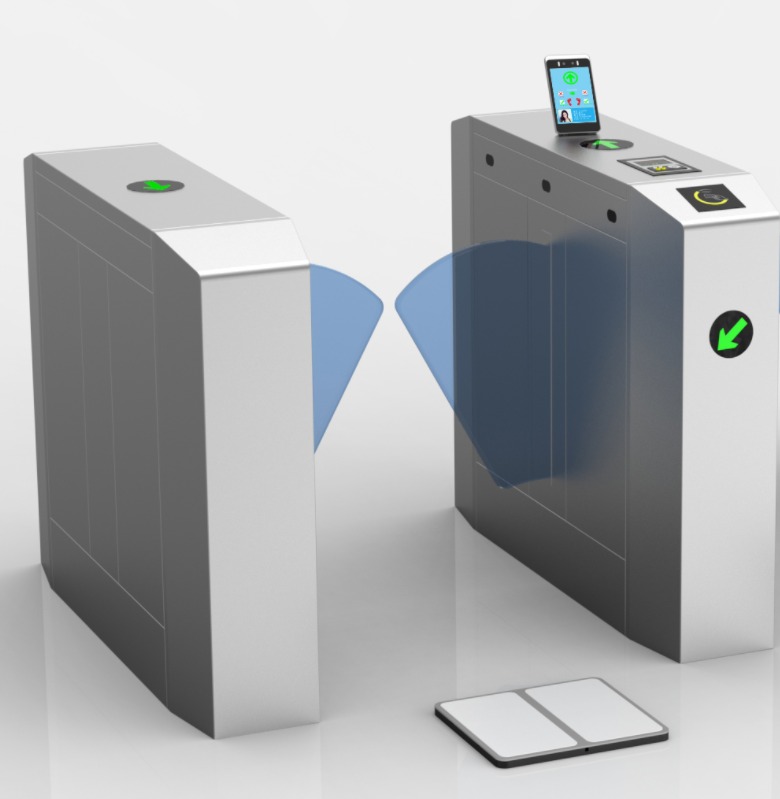

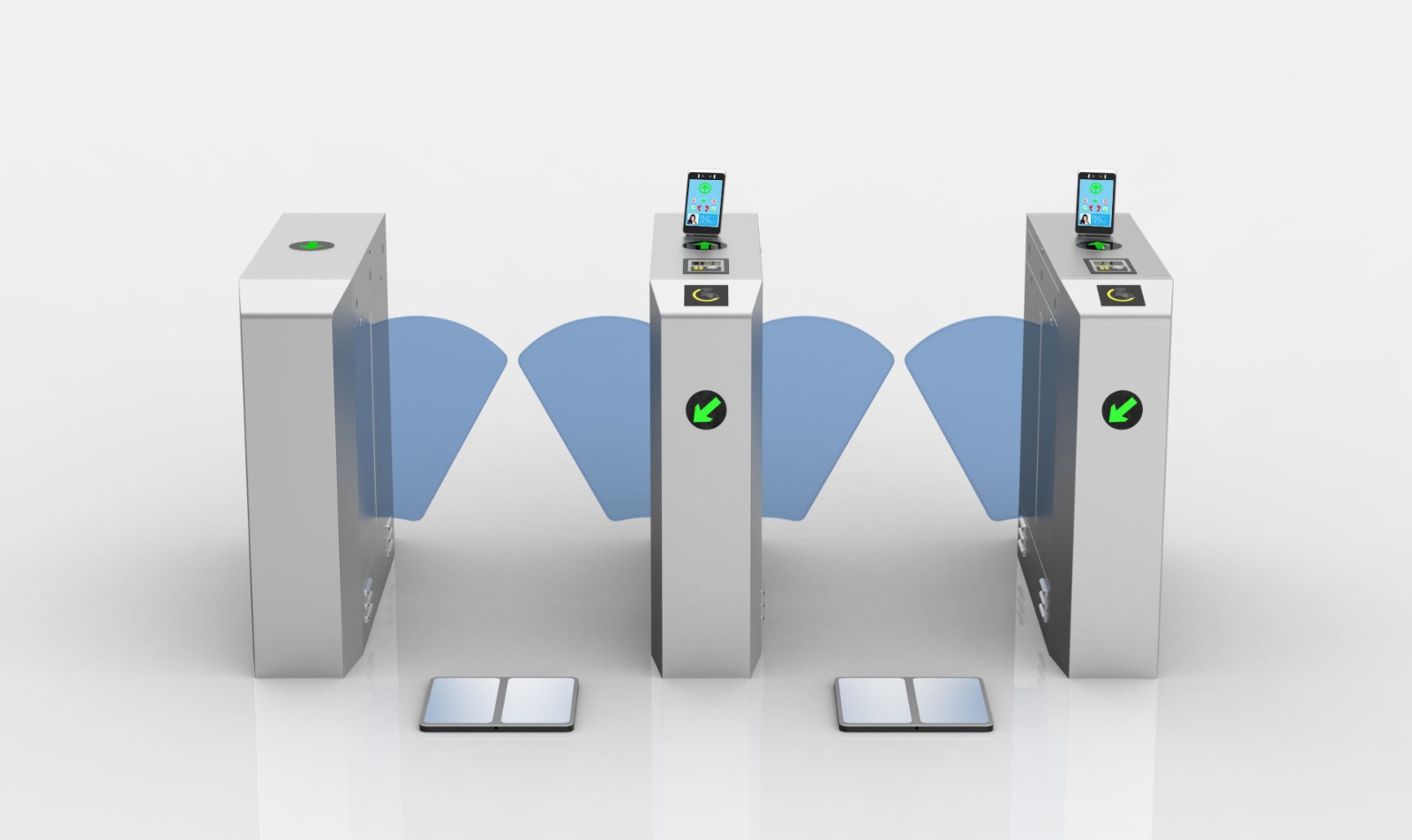

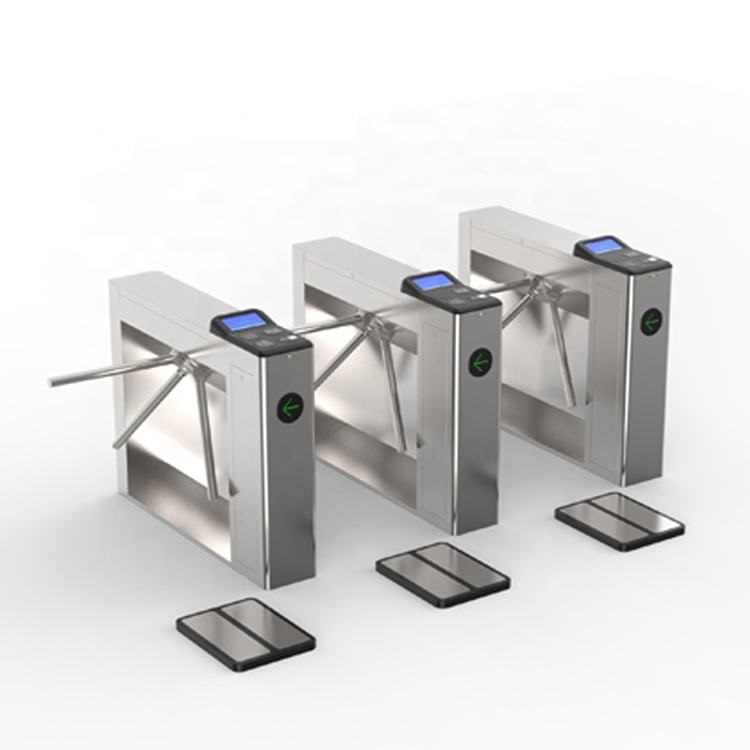

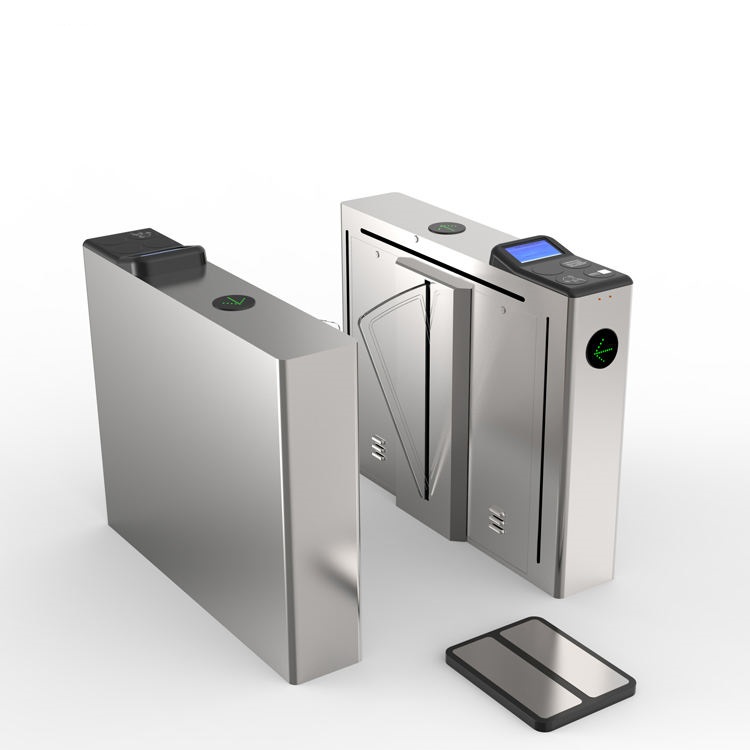

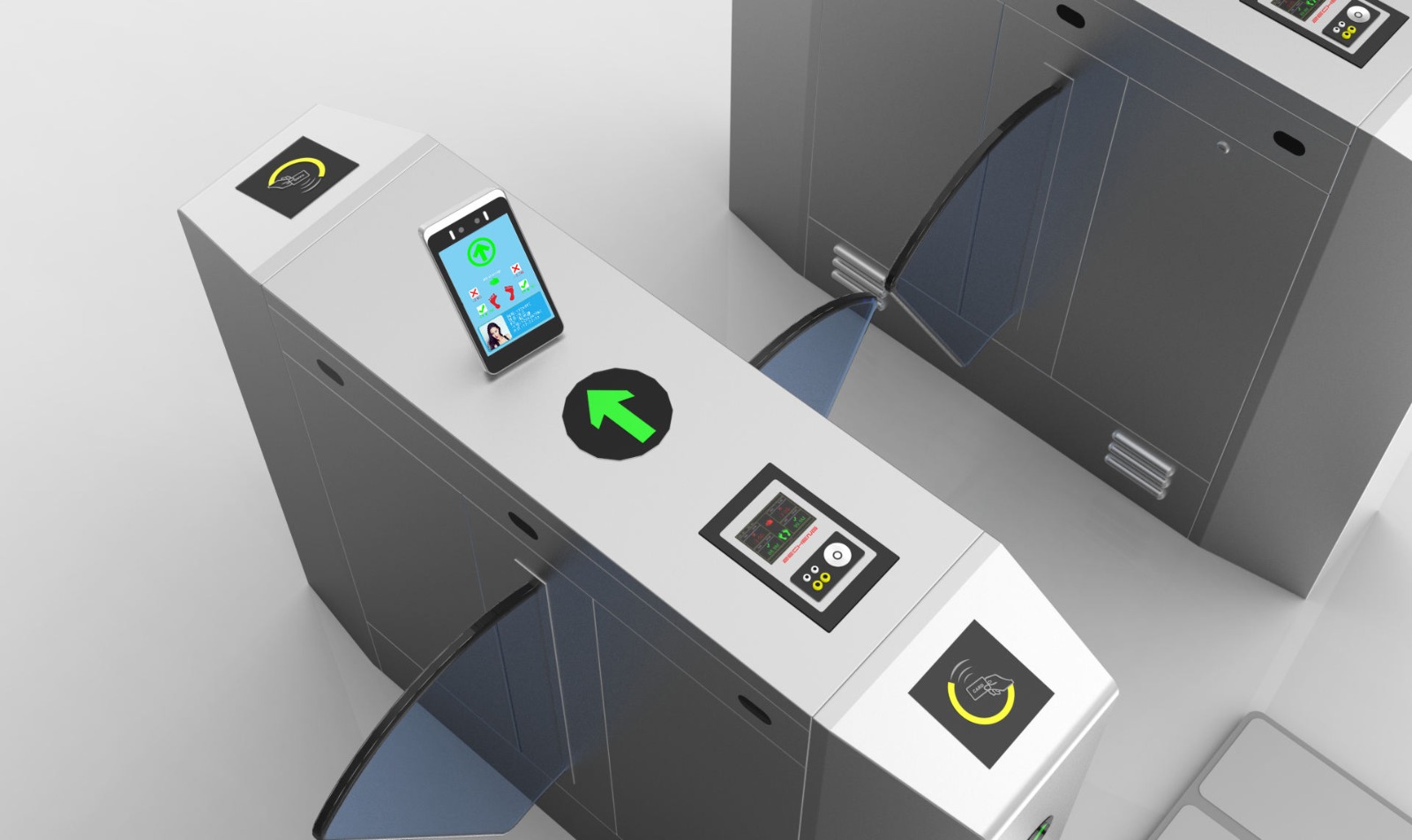

Turnstile Access Control: Delay signal output, barrier opens after ESD test
result is "PASS".

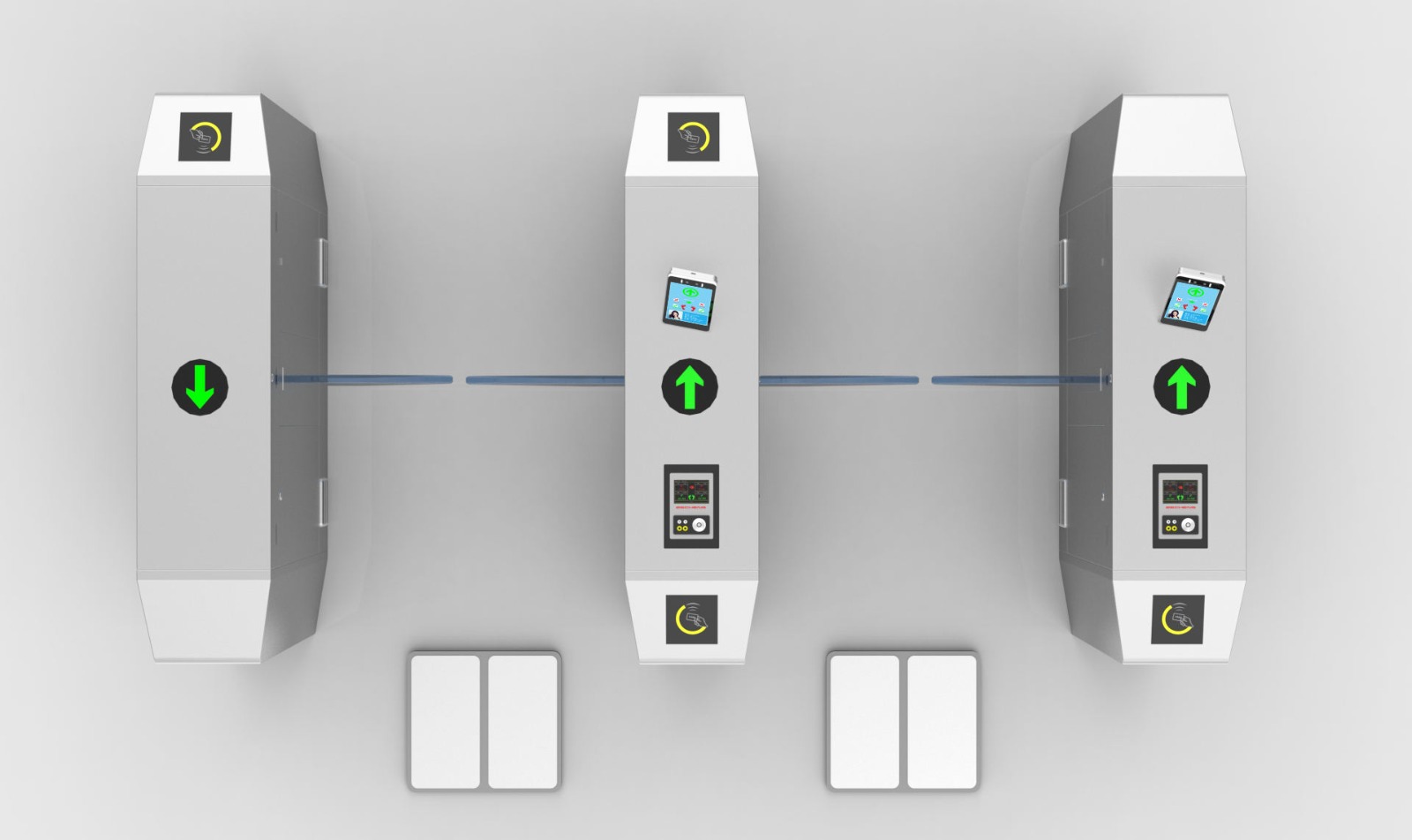

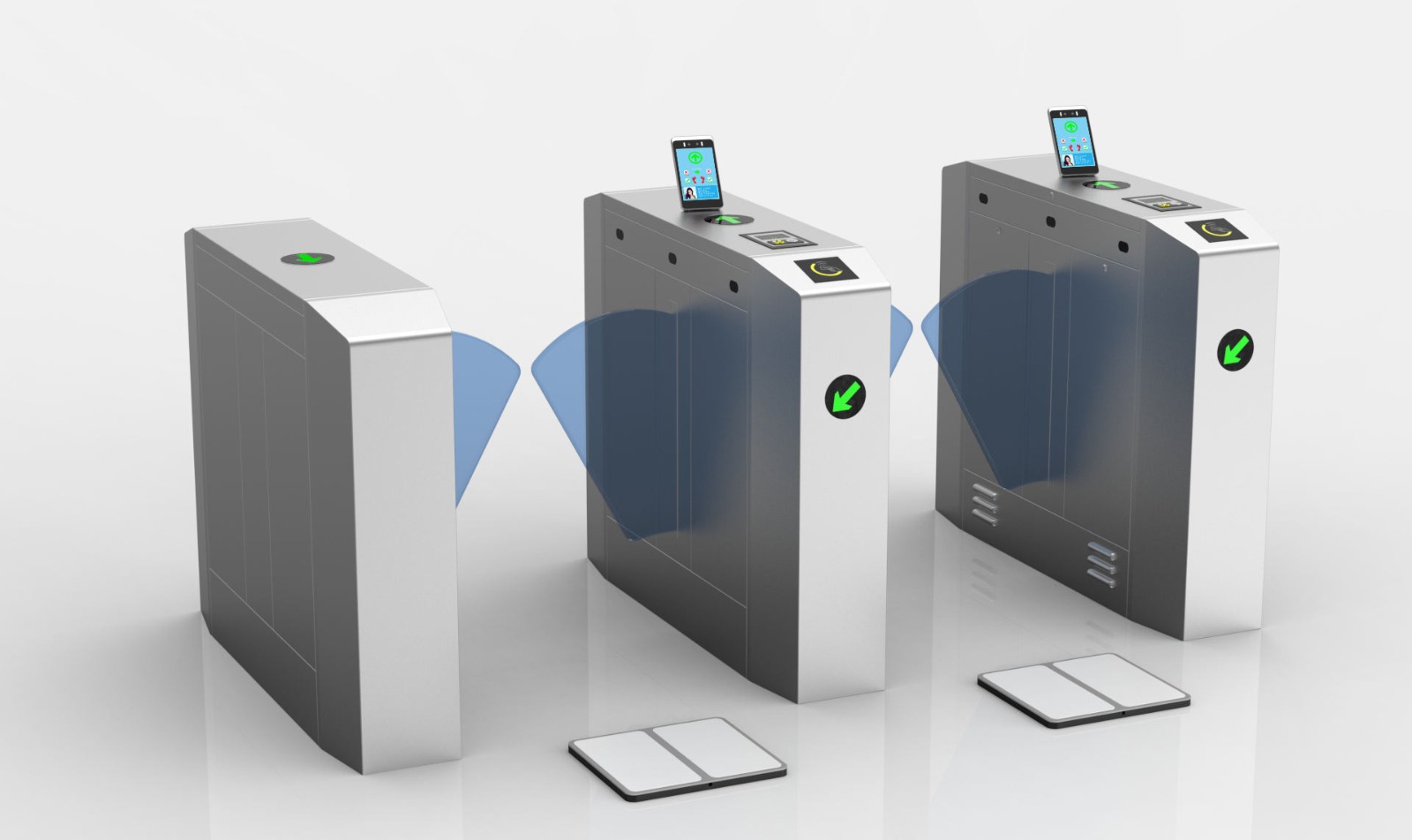

The pedal adopts an independent design for both feet, allowing simultaneous
testing of the wrist strap and left/right anti-static shoes.
Optional test types:
Can be configured via dial code to test only the wrist strap, only anti-static
shoes, both, or neither.
Adjustable resistance limits:
• Upper limit resistance for wrist strap
• Lower limit resistance for wrist strap
• Upper limit resistance for electrostatic shoes
• Lower limit resistance for electrostatic shoes
Test results for the wrist strap, left shoe, and right shoe are displayed
independently.
Easy to upgrade — includes card reader interface and RS232 communication
interface.
RFID Card
- EM/MF/HID
Operating system
- Linux
Display size
- 8-inch to display test result
Display details
- ESD tester: Single loop jack, Double loop jack, Human body touch test button, Human body discharge static, connect GND, Set range value for High and Low resistance, Resistance of test, Temperature and Humidity
- ESD ACS: EM/MF/HID card number, Device IP address, Device No, Red: disconnect with server / Green: Connect with server, Visitor photo, Date & time, Swipe card area.
| Dimensions (in mm) | 115 L x 175 W x 28.5 H |
| Working Temperature | -20° C ~ 60° C |
| Working Voltage | DC 12V 2A |
| Wrist Strap | 750KΩ ~35MΩ |
| Static Shoes | 750KΩ ~100MΩ |
| Accuracy | ±10% |
| Responding Time | < 500ms |
| Reading Frequency | 13.56 Mhz / 125 Khz / HID |
| Output | RS485, Delay signal |
| Input | Weigand 34/26, RS232 can be customized |
| Indicator | Red, Green LED Light |
