Flap Barrier

TS-F-300 Download Datasheet

TS-F-300

Introduction

TS-F-300 Series Flap Turnstiles are robust products functioning to provide pedestrian access control in areas requiring moderate level of security. With its compact case design, provides a perfect solution for tight installation areas. Encoder and PLC controlled obstacle movement is provided by brushless DC motor, and enhanced with security features such as anti-tail-gating and anti-pass-back, with five pairs of optical sensors embedded in the turnstile case, which in total ensures one of the highest reliability available in market and a remarkably long life even in case of intensive usages.

TS-F-300 Series flap Gates are the perfect solution, where design, aesthetics and passage speed are important.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio

Reliability

  1. Alloy steel flap hub prevents mechanical wear
  2. Casework and flap arms manufactured in SUS 304 stainless steel
  3. Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle
  4. Technospacio compact mechanism ensures the long life of the lubricating oil inside
  5. High quality electrical components

Safety and User-Orientated Design

  1. Drop arm designed for emergency purpose
  2. No exposed screws, safer for the user
  3. Smooth operation designed for mass transit application
  4. The pictogram on the device indicating access permission and direction of movement
  5. Special designed case shape, user-friendly for passenger to punch card or finger
  6. Anti-tailgate
  7. Durable and robust design for long-term use
  8. Low maintenance requirements

Easy Integration

  1. Flexible reader installation plate. Customers can easily integrate with third party readers
  2. Standard electrical interface for third party device
  3. By using compact mechanism, the turnstile has more space inside for integration
  4. Technospacio provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation

Swipe Card

  • Access with authorized card and payment cards. Swipe to open the way
Learn More

Iris Recognition

  • Use the authorized eyes of Iris Recognition to pass through the entry gates.
Learn More

Fingerprint Recognition

  • Access with authorized fingerprint authentication.
Learn More

Manual Operation

  • Manual use of wired and wireless to open gates for entry.
Learn More

Coin/Ticket

  • Use disposable coins to coin through to enter.
Learn More

Face Recognition

  • Use authorized face recognition to enter.
Learn More

Vein Recognition

  • Use authorized palm vein recognition to pass into.
Learn More

QR Code

  • Scan in with authorization QR code and barcode.
Learn More
Brand name TECHNOSPACIO
Motor type DC brushless motor
Flow rate 40-60people/minute
Passage width(mm) ≤600
Rated Power 50W
Cabint material SUS 304;1.5mm top lid/1.2mm side
Infared sensor 3 pairs
Input/Output signal dry contact/relay signal

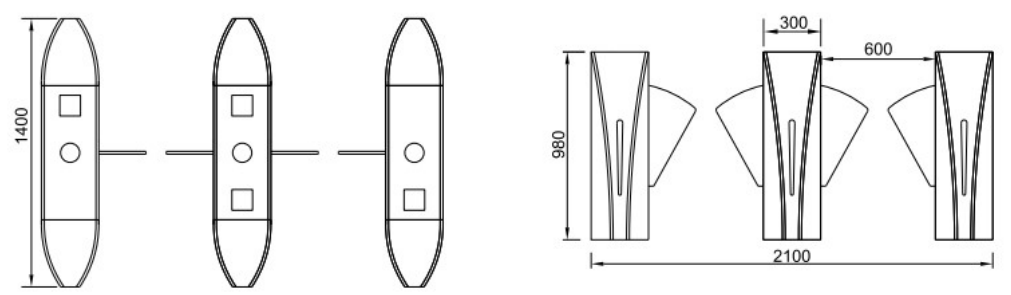

Dimension 1400*300*980mm
Net weight 55KG
Gross weight 57KG
IP IP55
Operating Temperature -10 °C- 60 °C
Operating Humidity 5%-85%
Working Environment Indoor/Outdoor covered
Voice prompt Yes
