TS-F-600
TS-F-600 Patent Series Flap Turnstiles are robust products functioning to provide
pedestrian access control in areas requiring moderate level of security. With its compact case design,
provides a perfect solution for tight installation areas. Encoder and PLC controlled obstacle movement is
provided by Brushless Servo motor, and enhanced with security features such as anti-tail-gating and
anti-pass-back, with five pairs of optical sensors embedded in the turnstile case, which in total ensures
one of the highest reliability available in market and a remarkably long life even in case of intensive
usages.
TS-F-600 Series flap Gates are the perfect solution, where design, aesthetics and passage speed are
important.
| Brand name |
TECHNOSPACIO |
| Motor type |
Brushless Servo motor |
| Flow rate |
40-60people/minute |
| Passage width(mm) |
≤600 |
| Rated Power |
50W |
| Cabint material |
SUS 304;1.5mm top lid/1.2mm side |
| Infared sensor |
8 pairs |
| Input/Output signal |
dry contact/relay signal |

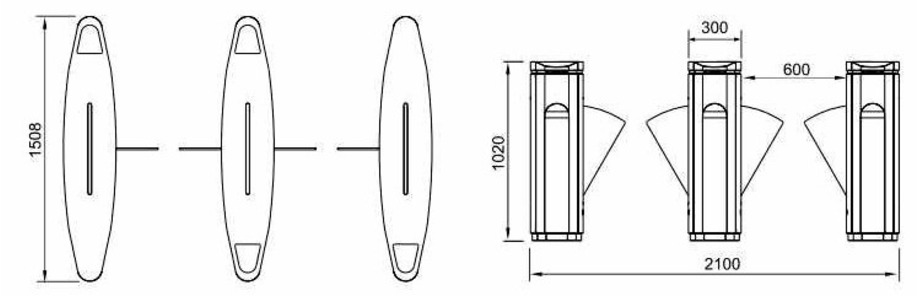

| Dimension |
1508*300*1019mm |
| Net weight |
55KG |
| Gross weight |
57KG |
| IP |
IP44 |
| Operating Temperature |
-10 °C- 60 °C |
| Operating Humidity |
5%-85% |
| Working Environment |
Indoor/Outdoor covered
|
| Voice prompt
|
Yes
|
