Tripod Turnstile

TS-T-250 Download Datasheet

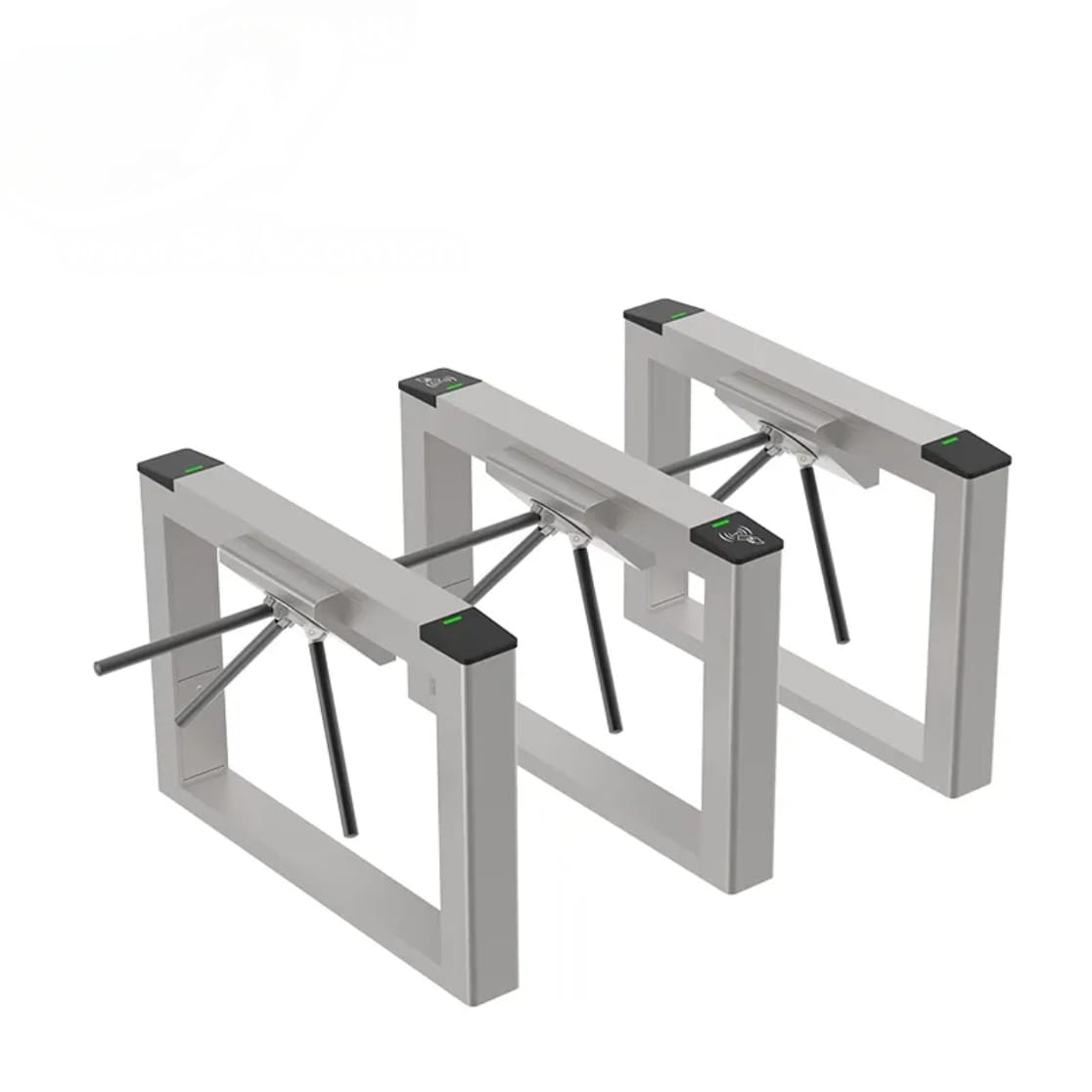

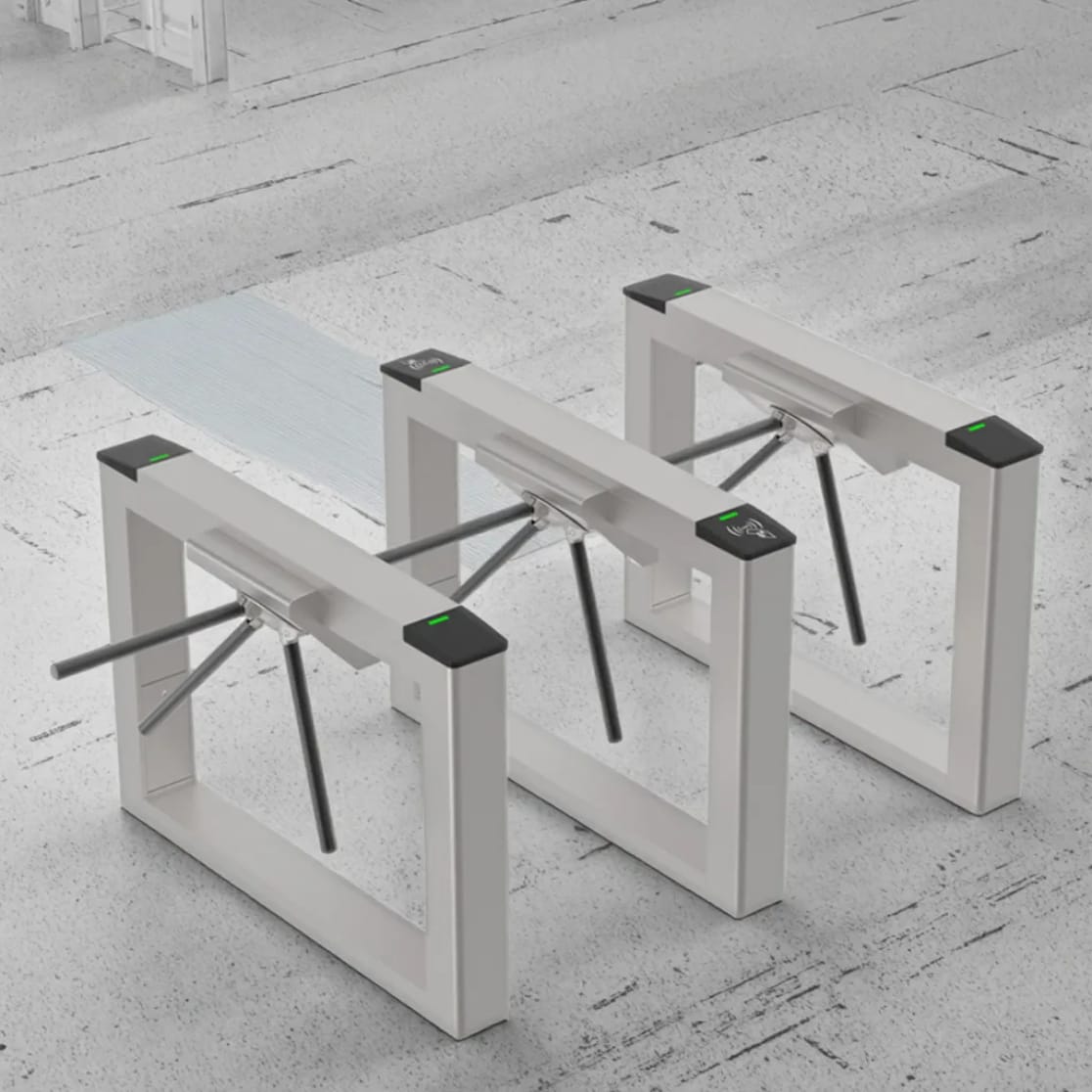

TS-T-250

Introduction

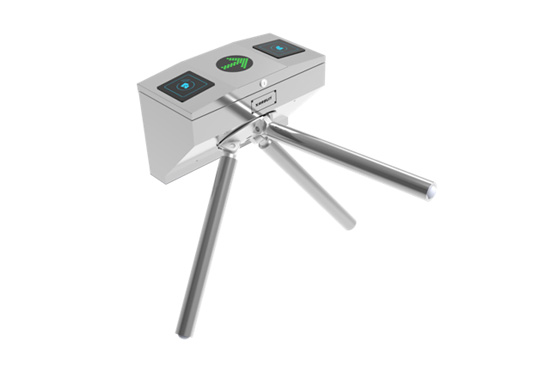

Turnstile for Bus, wall mount design, can be fixed on any available space, a wall or single pillar or double, well carved & designed for paths that encounter heavy rush every day. Robust in construction, equipped with LED direction indicators with a well deserved space for RFID readers & the control board with RS control protocol and dry contacts for system integration.

TS-T-250 tripod turnstile made by stainless steel compact version,offer high operating reliability in a small casework, ideal for sites where space is an issue. By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio

Reliability

  1. Alloy steel tripod prevents mechanical wear
  2. Casework and flap arms manufactured in SUS 304 stainless steel
  3. Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle
  4. Technospacio compact mechanism ensures the long life of the lubricating oil inside
  5. High quality electrical components

Safety and User-Orientated Design

  1. Drop arm designed for emergency purpose
  2. No exposed screws, safer for the user
  3. Smooth operation designed for mass transit application
  4. The pictogram on the device indicating access permission and direction of movement
  5. Special designed case shape, user-friendly for passenger to punch card or finger
  6. Anti-tailgate
  7. Durable and robust design for long-term use
  8. Low maintenance requirements

Easy Integration

  1. Flexible reader installation plate. Customers can easily integrate with third party readers
  2. Standard electrical interface for third party device
  3. By using compact mechanism, the turnstile has more space inside for integration
  4. Technospacio provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation

Swipe Card

  • Access with authorized card and payment cards. Swipe to open the way
Learn More

Iris Recognition

  • Use the authorized eyes of Iris Recognition to pass through the entry gates.
Learn More

Fingerprint Recognition

  • Access with authorized fingerprint authentication.
Learn More

Manual Operation

  • Manual use of wired and wireless to open gates for entry.
Learn More

Coin/Ticket

  • Use disposable coins to coin through to enter.
Learn More

Face Recognition

  • Use authorized face recognition to enter.
Learn More

Vein Recognition

  • Use authorized palm vein recognition to pass into.
Learn More

QR Code

  • Scan in with authorization QR code and barcode.
Learn More
Power Supply AC 220V/110V, 50/60Hz
Operating Temperature -28 °C- 80 °C
Operating Humidity 5%-85%
Working Environment Indoor / Outdoor both, IP54 Standard
Rated Power 60W
Flow Rate 25- 48 passage/minute
Casework Material SUS304 (SUS 316 for option)
Mechanism Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless motor for option)
Mechanism Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless motor for option)
Control System Dry contact
Emergency Alarm function Yes

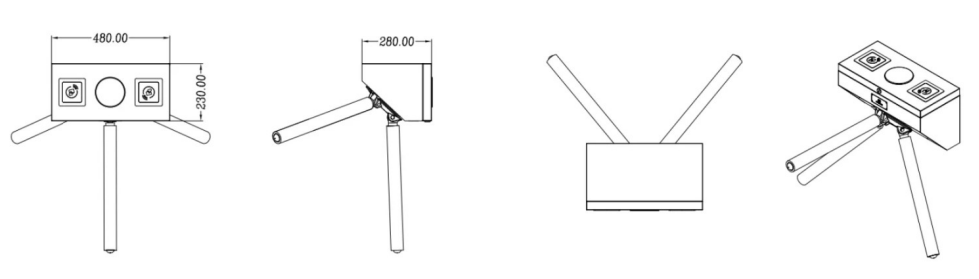

Dimension 480*280*980MM + arm length 500MM
Net Weight 25kgs
Material Thickness 1.5mm
MCBF Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles
Warranty 1 year
