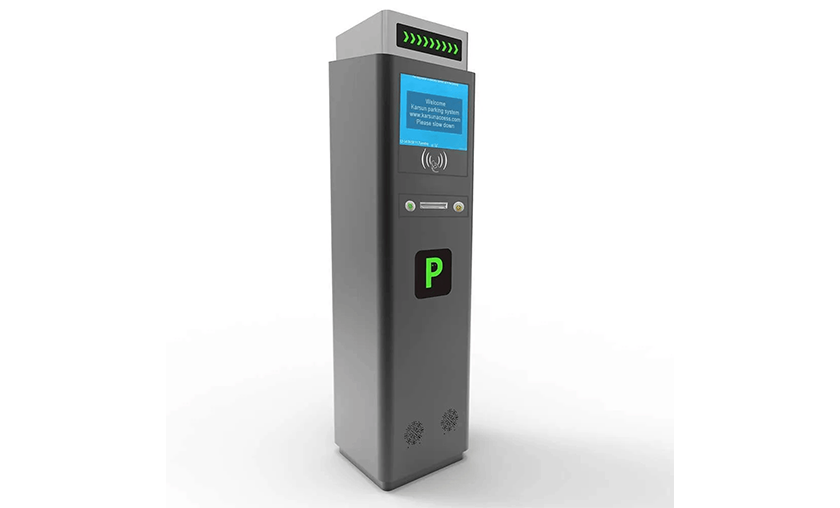

TS-TD-02
Introduction

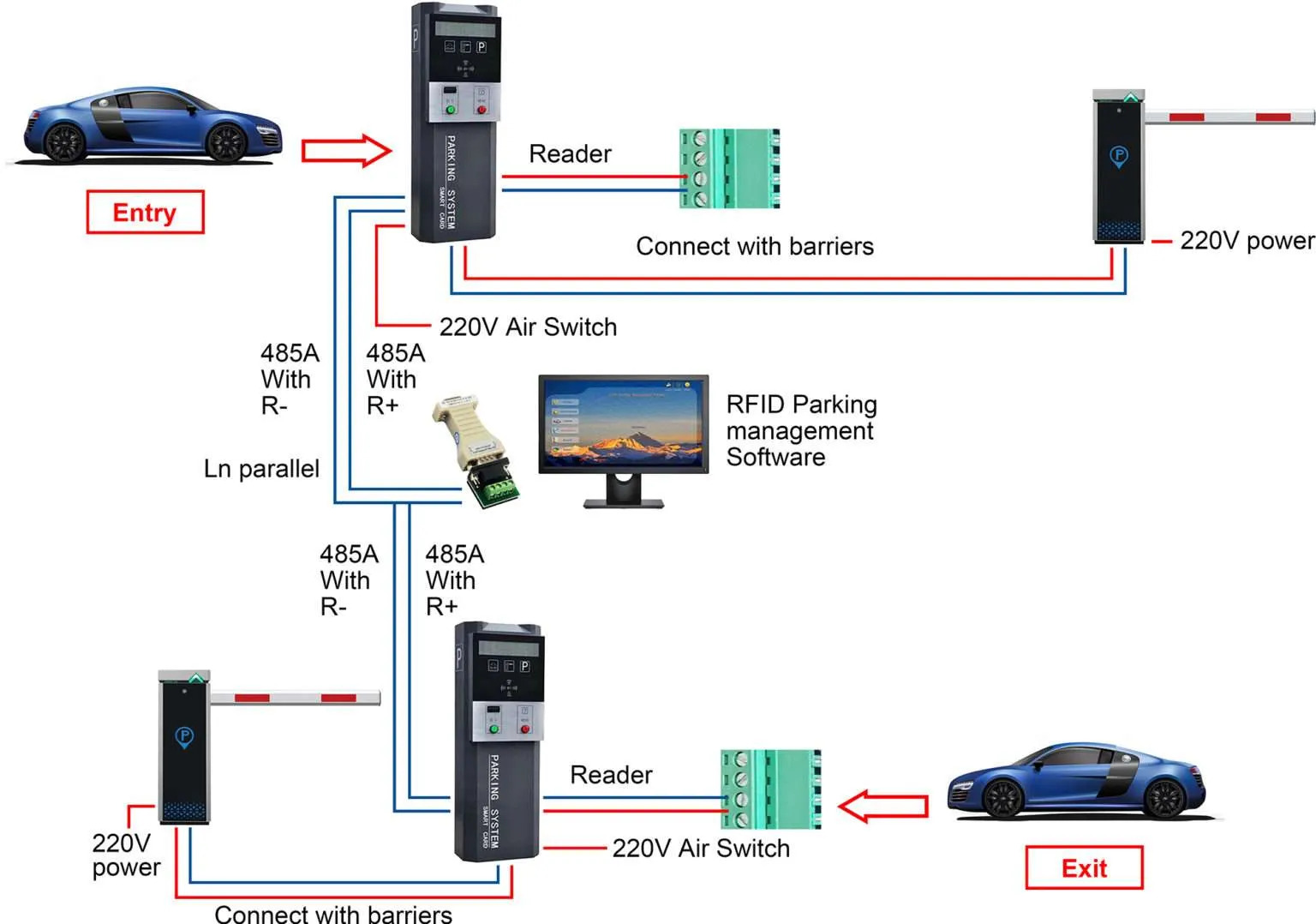

Card Parking system (Card Dispenser + Card Reader) For Temporary Cars:
1. Visitors push the button to get a card from the entry card dispenser machine then the barrier gate will open automatically.
2. When the car passes through, the barrier gate will close automatically.
3. When the visitors leave, they need to pay the parking fee at management center or at parking payment machine (Read the cards then calculate the parking fee).
4. After payment, the center staff open barrier gate for visitors to leave. (If pay at payment machine, visitors just put the card back to the exit machine with card receiver, then the barrier gate will open automatically.)
5. Barrier gate closes after the car passes automatically.
For VIP Cars: They prepaid and got the registered cards then only need to swipe the cards on the entry & exit machine and the barrier gate will open automatically.

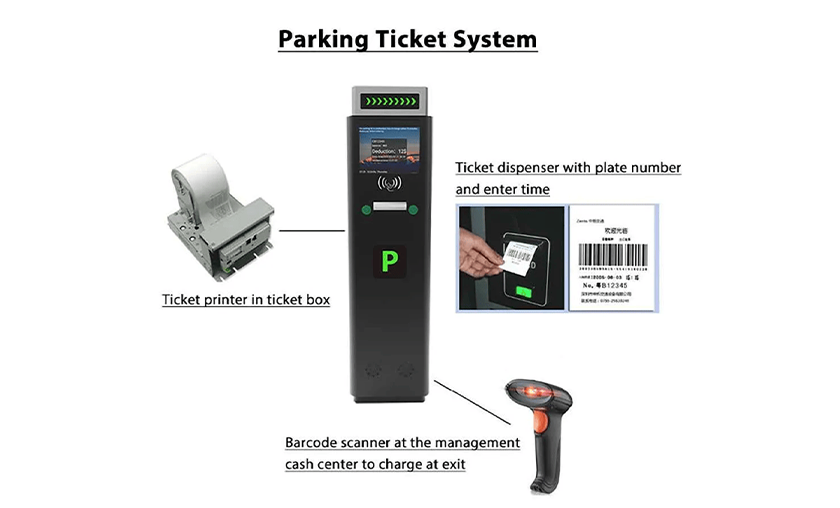

Ticket System (Ticket Dispenser + Card Reader) For Temporary Cars:
1. Visitors push the button to get a ticket from the entry ticket dispenser machine then the barrier gate will open automatically.
2. When the car passes through, the barrier gate will close automatically.
3. When the visitors leave, they need to pay the parking fee at management center or at parking payment machine (Scan the tickets then calculate the parking fee).
4. After payment, the center staff open barrier gate for visitors to leave. (If pay at payment machine, visitors just scan the ticket on the exit machine with ticket scanner, then the barrier gate will open automatically.)
5. Barrier gate closes after the car passes automatically.
For VIP Cars: They prepaid and got the registered cards then only need to swipe the cards on the entry & exit machine and the barrier gate will open automatically.

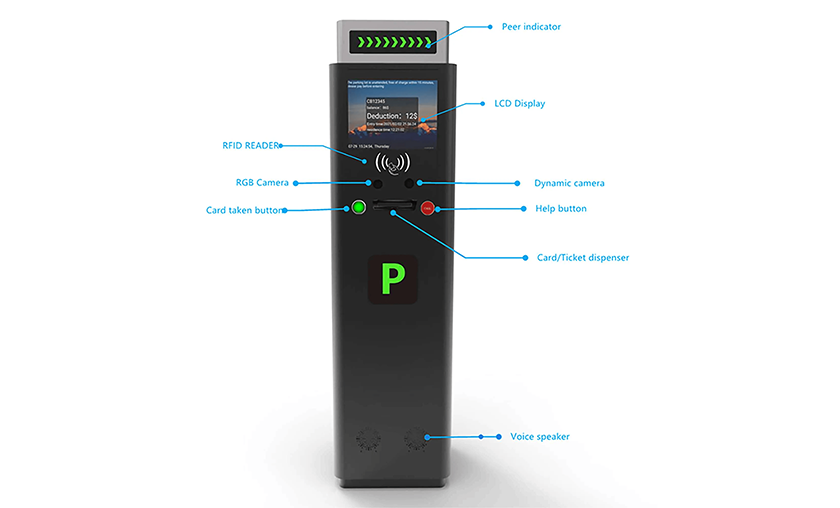

| Model No | TS-TD-02 |
| Applications | TCP/IP ports, Power supply ports |
| Cabinet Material | Iron plate metal 2.0 |
| Display Size | 64 × 16 |
| Working Temperature | -40℃ ~ 80℃ |
| Character Color | Grey, Yellow, Red |
| Support Cards | IC/ID, RFID card, etc. |
| RFID Card System | Ticket system |
| Main Control Board | LED display |

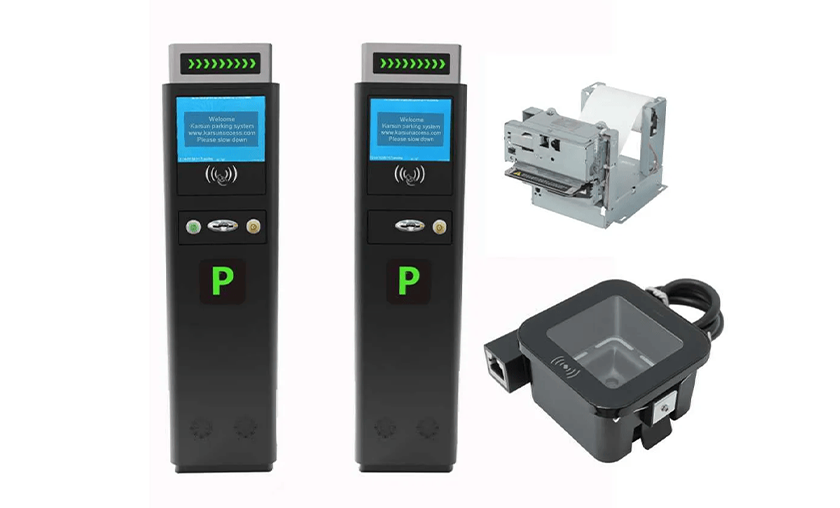

| Card Dispenser (Entry) | Automatic printer (Entry) |
| Card Collector (Exit) | Bar code scanner (Exit) |
| Card Reader | Card reader (optional) |
Benefits
The Smart Parking Management System offers fast and automated access for both temporary and VIP users, reducing wait times and improving traffic flow. Temporary users enjoy flexible payment options, while VIPs benefit from quick, card-based entry and exit. The system enhances security by recording all activity, supports integration with CCTV and ANPR, and reduces staffing needs through automation. Its user-friendly design, accurate fee calculation, and scalable setup make it a costeffective and efficient solution for any parking facility.
Applications
The Smart Parking Management System is ideal for a variety of environments, including shopping malls, airports, hospitals, office buildings, hotels, and residential communities. It handles high traffic efficiently with automated access,supports both short- and long-term parking, and enhances security through VIP card access and real-time monitoring. Whether managing visitor flow in public areas or providing controlled entry for residents and staff, the system ensures smooth, secure, and flexible parking operations.
