DFMD

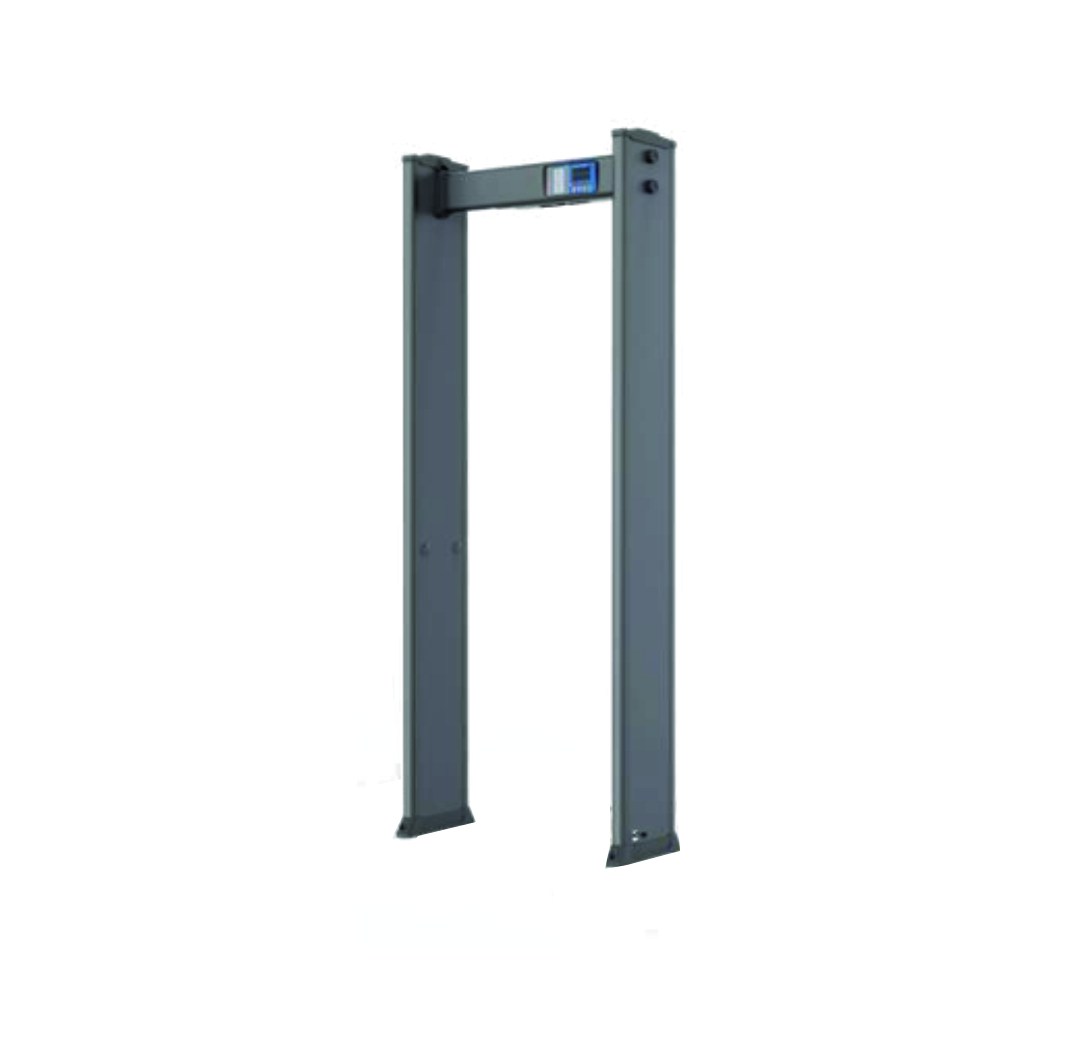

TS-D-18ZONE

Features and Functions
  • Adjustable sensitivity of each detection zone
  • Operating frequency can be adjusted manually or automatically
  • Detection technology: Even detection technology,no blind spot
  • Internet technology:Remote upgrade system and remote control system
  • Working band: 50 working bands
  • Sensitivity of each detection zone:400 level
  • Security level: 100 level
  • Statistics: Record the pass and alarm numbers
  • Query function: The system has real-time information query function
  • Intelligent Standby: The system has intelligent standby operation alerts
  • Detection speed: more than 60 people pass and detect in 1 minute
Advanced function
  • Intelligent partion: Can change detection zones according customers’ demands Regular 18 zone
  • Can connect PC terminal that change specification of WTMD anytime,anywhere(optional)
  • We intergrated 72 application occasions in the program,so can change all zones Sensitivity when you choose different occaasion
  • Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON
Specification
Model Number TS-D-18ZONE
Vertical dimension 2216x429x854mm
Vertical channel size 1940x700mm
Main box packing size 725x200x305mm
Detection door packing size 2245x510x200mm
Net weight of main box/detection door 54KG
Gross weight of main box/detection door 62KG
Detection zones 18 zones
Working voltage AC90V~240V50/60Hz
Power consumption 20W
Each zone sensitivity 1-400 Level
Security level 100 Level
Working frequency range 1-50bands
Working environment temperature -20℃~65℃
