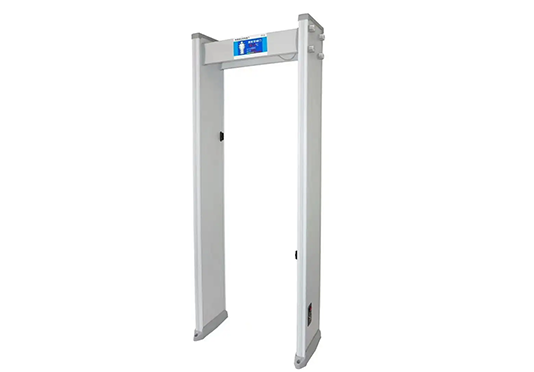

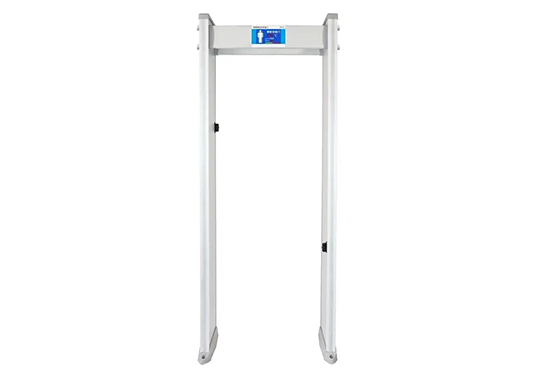

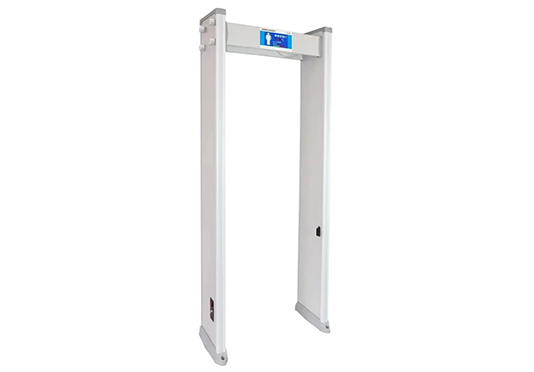

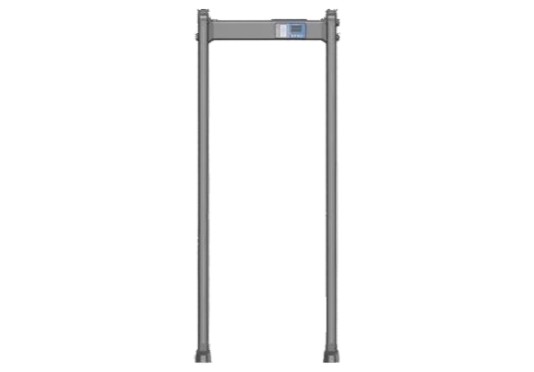

TS-D-33ZONE
Features
- Easy Assembly : The TS-D-33ZONE modular design allows for a quick and simple assembly of its 4 (four) sub-assemblies using only 11 (eight) screws and 3 (three) internal electrical connections.
- 33 Distinct Pinpoint Detection Zones The TS-D-33ZONE offers exclusive multiple target pinpointing with 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe.
- Entry Pacing Lights Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights with international "wait" and "Ready" symbols on the entrance side of each panel.
- Overhead Control Unit LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.
- Multi-dimensional Coil Design The TS-D-33ZONE exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.
- Audible and Visual Alarms Audible alarm and Visual LED lights signal when a target has been detected. Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
Specifications
- Operating Temperatures -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
- Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards. Weatherproofing / Foreign Object Protection Standards
- Tamper-Proof All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
- Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
- Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
- Traffic Counter Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
- Synchronization Dual channels and DSP circuitry allow several TS-D-33ZONE to operate simultaneously in close proximity to one another.
- Interference Suppression Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
- Alarms Audible tone and volume adjustable. Bright LED visual alarm.
- Target Pinpointing Lights 33 distinct zones are displayed with 2 independent columns of LED's located on exit side
- Pacing Lights International symbols
- Warranty Limited 24 months, parts and labor
| Technical Parameters |
|---|
| Power Supply | 220V/AC |
| Power | < 30V |
| External Dimension | 2200mm(H)*820mm(W)*550mm(D) |
| Passageway Dimension | 2000mm(H)*700mm(W)*550mm(D) |
| Work environment | -20°C- +45°C |
| Standard | GB15210-2003 < WALK THROUGH METAL DETECTOR> |
| Standard configuration |
|---|
| Main Case | ONE |
| Left Probe | ONE |
| Right Probe | ONE |
| Power Line | ONE |
| Screws | Eight |
Applications
- Airports
- Correctional Facilities
- Private Buildings
- Schools
- Special Events
- Nuclear Facilities
- Transportation Terminals
- Courthouses
- Corporate Security
- Historical Landmarks
