Industrial Tripod Turnstile

TECHNOSPACIO TRIPOD TURNSTILE-550
Overview

The Technospacio Tripod Turnstile-550 are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic. our stainless steel compact version , offer high operating reliability in a small casework, ideal for sites where space is an issue. By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.

Semi-Auto
60W Power
60 People/min
SUS304 Body
Drop Arm
IP54 Rated
5M Cycles
×
Throughput

0

pass/minute

Durability

0

Million cycles

Material

SUS304

stainless steel

Chassis Material SUS304 Stainless Steel
Chassis Size 600 × 200 × 900 mm (L×W×H)
Door Wing Material Indoor / Outdoor
Passage Width < 550 mm
Input Voltage 110V–220V, 50Hz
Opening Speed < 0.5 sec (adjustable)
Passing Speed 20 – 60 people/min
Usage Environment Indoor
Ambient Temperature 25°C – 70°C
Warranty 1 Year
Mechanism Semi-automatic electromagnetic with hydraulic buffer (brushless motor optional)

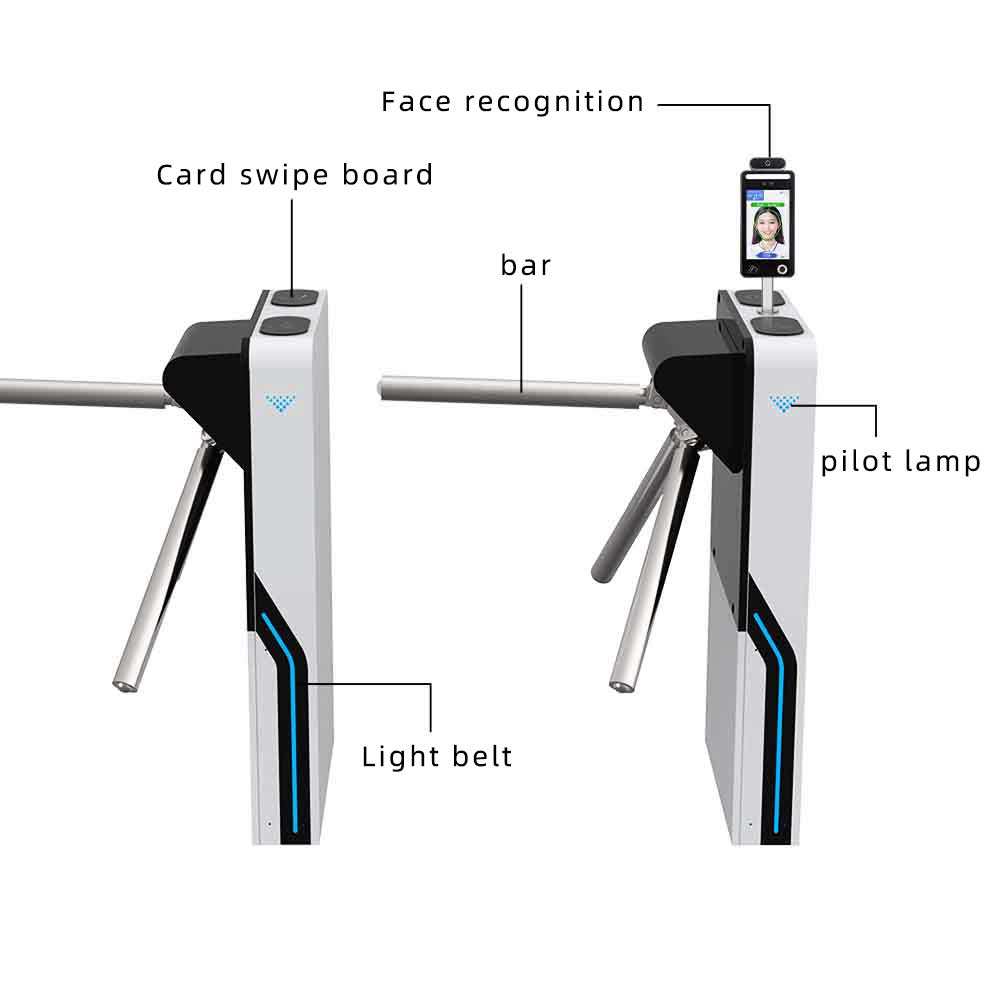

Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Reliable Structure

Alloy steel tripod prevents mechanical wear

SUS304 Body

Stainless steel cabinet and arms for durability

Low Power Lock

Electromagnet activates only when needed

Long Life Mechanism

Lubricated compact mechanism ensures long life

Emergency Drop Arm

Auto drop arm for emergency evacuation

Anti-Tailgating

Allows one person per authorization

Safe Design

No exposed screws, user-friendly structure

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
