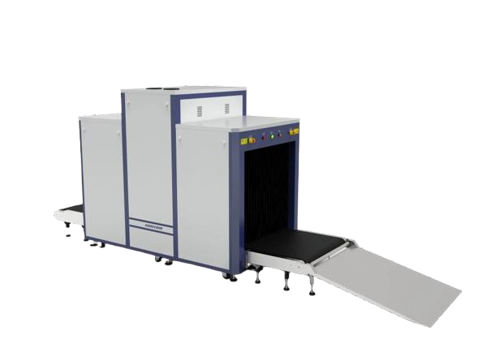

X Ray Baggage Scanner

TS-X-100100B

Introduction

TS-X-100100B is a full-digital X Ray Baggage Scanner with clear imaging and strong anti-interference. It features an embedded Linux OS, multi-core ARM CPU, low power consumption, and is tested for high reliability. Certified with CE/FCC/CCC/ROHS.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio
System Features
  • Multi-lingual Operation
  • Built-in Test & Diagnosis
  • Secure Access Key
  • UPS (Optional)
  • Threat Alert & Classification
  • Auto Archiving
  • Network Ready
  • Energy Saving Design
  • One-Key Turn Off
  • Drugs & Explosives Inspection
  • Date & Time Indication
  • Baggage Counter

Image System

  • Multi-energy X-ray detection with 12-bit depth
  • High-res imaging and enhancement features
  • Built-in threat and contraband detection

Operating Environment

  • Supports a wide operating and storage temperature range, high humidity tolerance, and international power compatibility.
Unit Weight (kgs) 780
Unit Size (mm) 3638.5 (L) × 1295 (W) × 1916.5 (H)
Gross Weight (kgs, after wooden pallet) 880
Packing Size #1: 287 × 142 × 213 cm
#2: 113 × 89 × 142 cm
Tunnel Size (mm) 1000 (L) × 1000 (W)
Conveyor Speed (m/s) 0.22
Conveyor Height (mm) 338.5
Conveyor Max Load (kgs) > 200
X-ray Dose per Inspection 0.8 μGy
X-ray Leakage < 0.2 μGy/h
Penetration 32 mm steel
Wire Resolution Ø 0.102 mm copper wire (AWG38)
Penetration Resolution Ø 0.254 mm copper wire (AWG30) under three-step aluminum wedge
9.5 mm, 15.9 mm, 22.2 mm
Anode Voltage 140 KV
Anode Power 0.4 – 1.2 mA (adjustable)
Generate Angle 80° upward
Generate Direction From top to bottom
Cooling / Duty Cycle Oil Cooling / 100%
Brand TECHNOSPACIO
