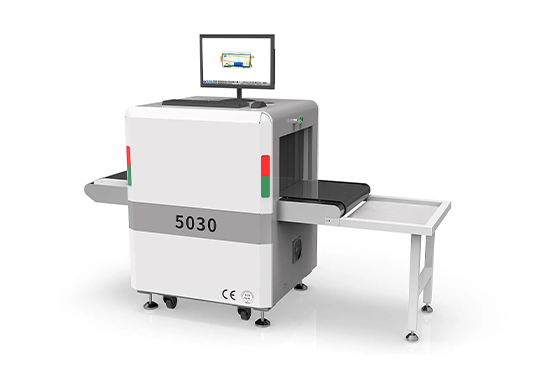

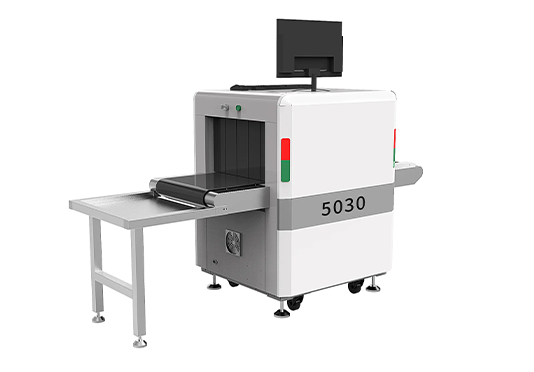

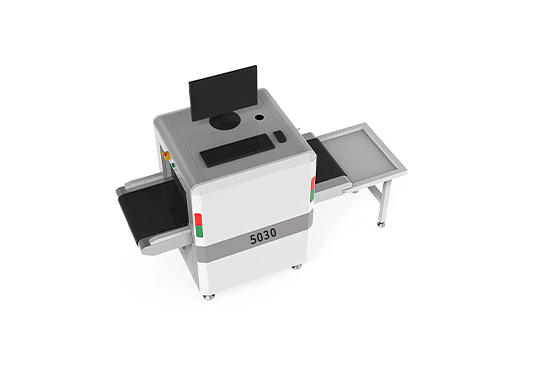

X Ray Baggage Scanner

TS-X-5030

Introduction

TS-X-5030 is a full-digital security X-ray baggage scanner with clear imaging and strong anti-interference. It features an embedded Linux operating system, multi-core ARM CPU, low power consumption, and environmental protection. Each unit is tested for high and low temperature endurance, ensuring over 10,000 hours of failure-free operation. Certified with CE/FCC/CCC/ROHS.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio
System Features
  • Multi-lingual Operation
  • Built-in Test & Diagnosis
  • Secure Access Key
  • UPS (Optional)
  • Threat Alert & Classification
  • Auto Archiving
  • Network Ready
  • Energy Saving Design
  • One-Key Turn Off
  • Drugs & Explosives Inspection
  • Date & Time Indication
  • Baggage Counter

Image System

  • Multi-energy X-ray detection with 12-bit depth
  • High-res imaging and enhancement features
  • Built-in threat and contraband detection

Operating Environment

  • Supports a wide operating and storage temperature range, high humidity tolerance, and international power compatibility.
Unit Weight 284 kg
Unit Size 1660(L) × 746(W) × 1165(H) mm
Gross Weight (Packed) 330 kg
Packing Size 180 × 88 × 138 cm
Tunnel Size 500(L) × 300(W) mm
Conveyor Speed 0.2 m/s
Conveyor Height 663 mm
Conveyor Max Load 50 kg
X-ray Dose per Inspection 3.0 μGy
X-ray Leakage <1.0 μGy/h
Penetration 10 mm steel
Wire Resolution Dia 0.0787 mm copper wire (AWG40)
Penetration Resolution Dia 0.202 mm copper wire (AWG32) under 3-step aluminum wedge (9.5mm, 15.9mm, 22.2mm)
Power Consumption Max. 1 KW
Noise 56.3 dB
Film Safety Guarantee ASA/ISO1600 Film
Anode Voltage 80kv
Anode power 0.4-1.2 mA(adjustable)
Generate angle 80 degree upward
Generate direct from bottom to top
Cooling/Duty Cycle Oil Cooling/100%
Brand TECHNOSPACIO
