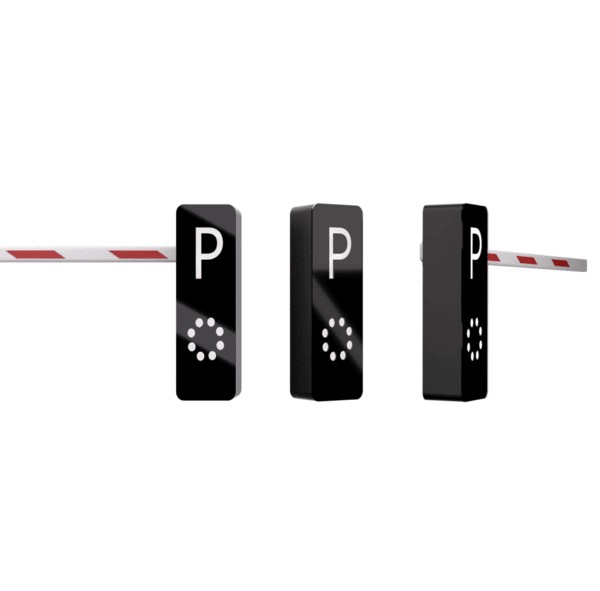

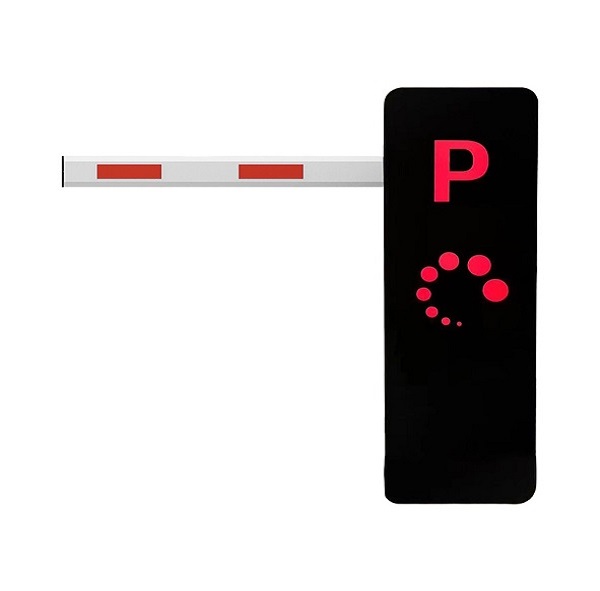

Boom Barrier Gate

TS-B-200

Introduction

The DC boom barrier gate is the latest generation barrier gate product of Technospacio. It has all the advantages of previous products and has the advantages of price advantage and higher quality. This product is the main product of the company in the future.The Technospacio fifth-generation barrier gate is a highly mature product that has undergone five upgrades. It boasts the highest reliability, the best cost-effectiveness, and the most stable performance. It is suitable for any environment.




Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio
...
Professional parking solution

The Parking Pro is the first choice for operators of multi-Story car parks and solution suppliers thanks to its rapid opening times, low operating costs, easy handling, great reliability and extra- ordinarily long service life.

...
Innovative Drive Technology

Maintenance-free, energy-efficient, and quiet. High torque ensures reliable operation even in extreme weather.

...
Legal Security

All barriers from TECHNOSPACIO have A conformity declaration in line with the Machinery Directive and a performance declaration according to Construction Products Regulation. operators and installers are always on the safe side regarding liability issues.

...
Easy Access to Components

Two simple hand movements Suffice easy access to the control system and drive unit by removing the hood and front panel. This increases user-friendliness and also speeds up commissioning and servicing.

100% duty cycle for continuous operation

Energy-efficient 24V brushless motor with planetary gearbox

Rust-resistant iron cabinet, 2.0 mm thickness

End-position detection without limit switches

Adjustable variable speeds

Dual tension springs for enhanced durability

Bi-directional mainshaft, configurable for left or right operation

Working Temperature -40℃ to 80℃
Power Supply AC220V
Open/close Speed 0.8-6 Sec
Rated Voltage DC24V
Driving Method DC Brushless Motor
Output Power 56.8N.m
Remote Control Distance 50 meters
Protection Grade IP65
Size 980*320*230mm
Pole length 1-6Meter
