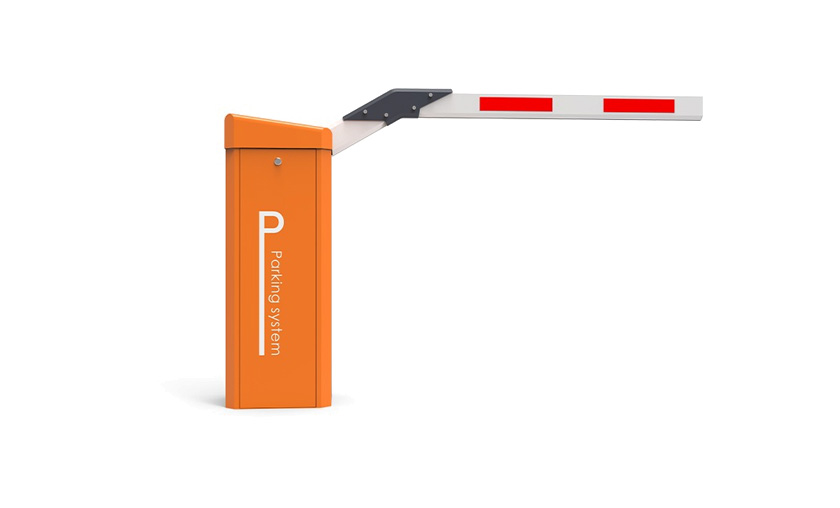

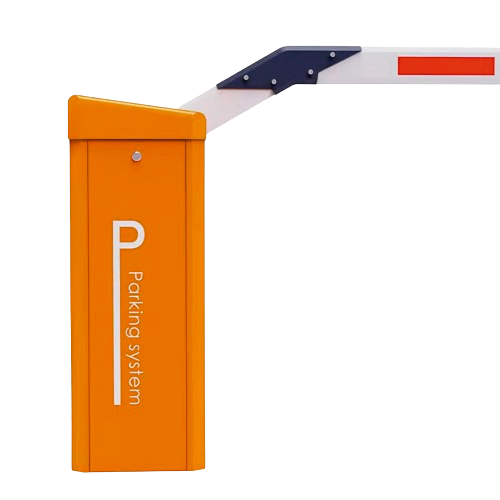

Boom Barrier Gate

TS-B-500

Introduction

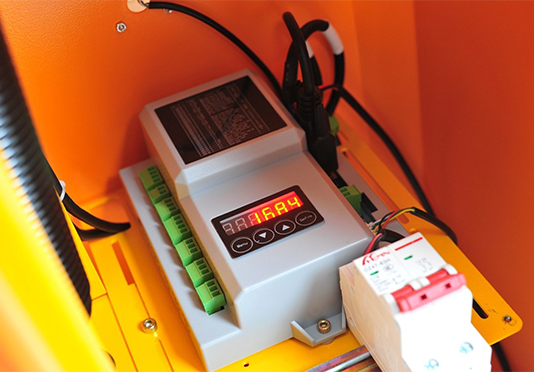

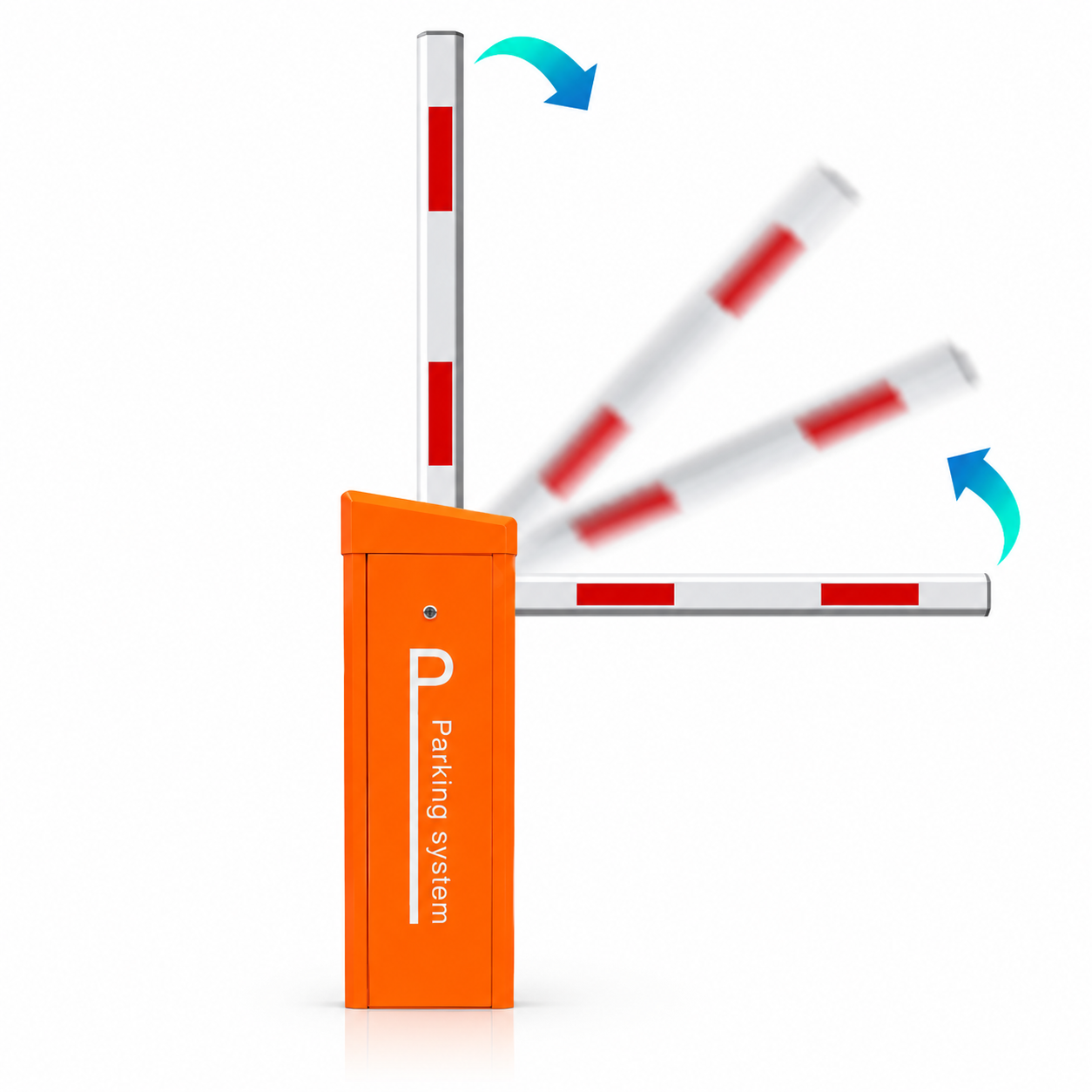

TS-B-500 Series Intelligent Barrier Gates are designed using innovative technology and manufactured with precision machinery to ensure long-term quality and reliability. The TS-B-500 Intelligent Barrier Gate has been laboratory tested for over 10 million open/close cycles without any degradation in performance—demonstrating a superb mechanical lifespan suitable for heavy-duty applications. It is primarily composed of an electronic control panel that manages the mechanical unit to raise or lower the barrier arm.



Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio
...
Professional parking solution

The Parking Pro is the first choice for operators of multi-Story car parks and solution suppliers thanks to its rapid opening times, low operating costs, easy handling, great reliability and extra- ordinarily long service life.

...
Innovative Drive Technology

Maintenance-free, energy-efficient, and quiet. High torque ensures reliable operation even in extreme weather.

...
Legal Security

All barriers from TECHNOSPACIO have A conformity declaration in line with the Machinery Directive and a performance declaration according to Construction Products Regulation. operators and installers are always on the safe side regarding liability issues.

...

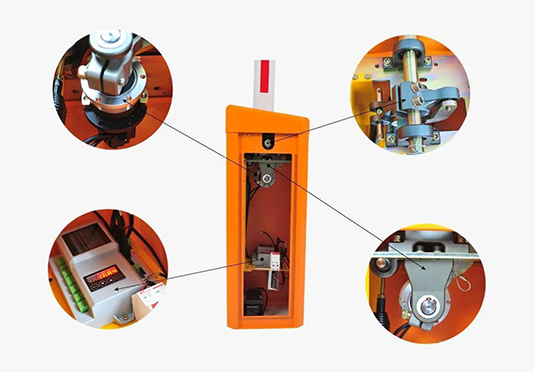

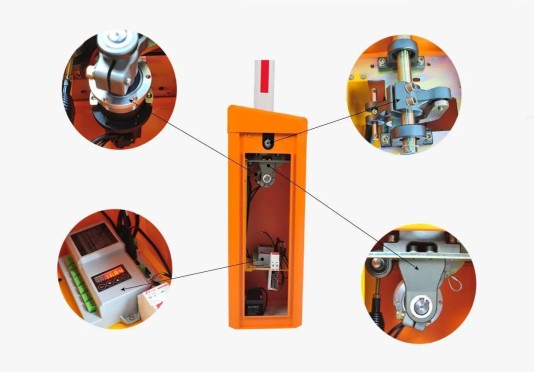

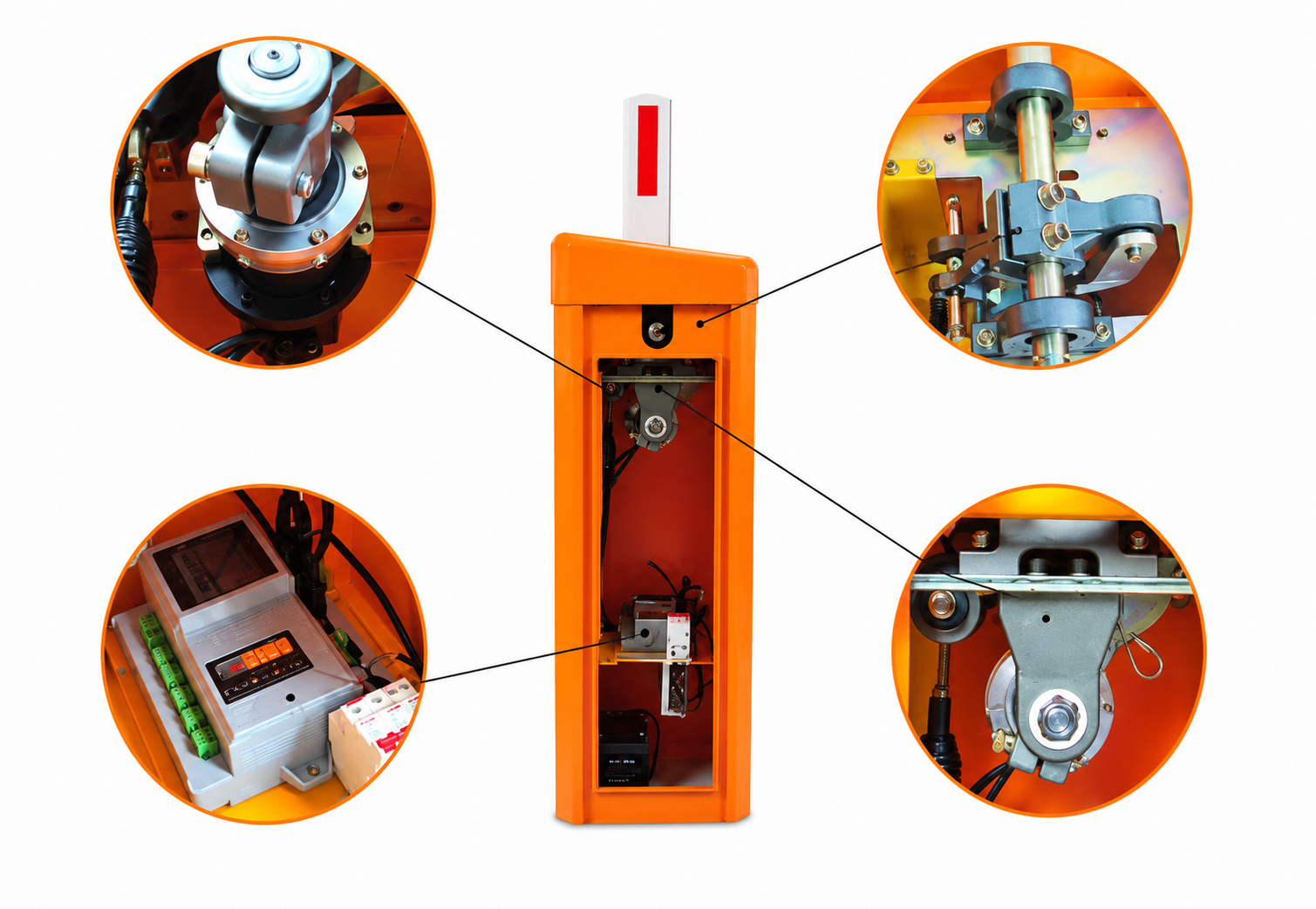

Easy Access to Components

Two simple hand movements Suffice easy access to the control system and drive unit by removing the hood and front panel. This increases user-friendliness and also speeds up commissioning and servicing.

100% duty cycle for continuous operation

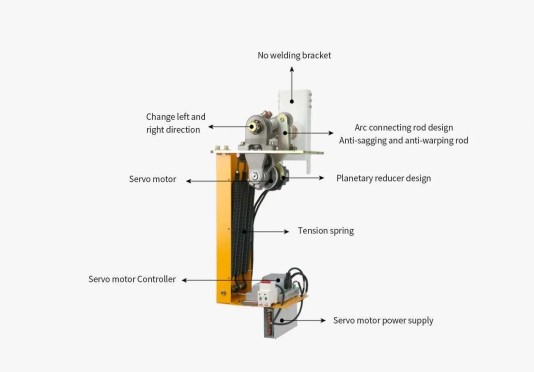

Energy-efficient 24V brushless motor with planetary gearbox

Rust-resistant iron cabinet, 2.0 mm thickness

End-position detection without limit switches

Adjustable variable speeds

Dual tension springs for enhanced durability

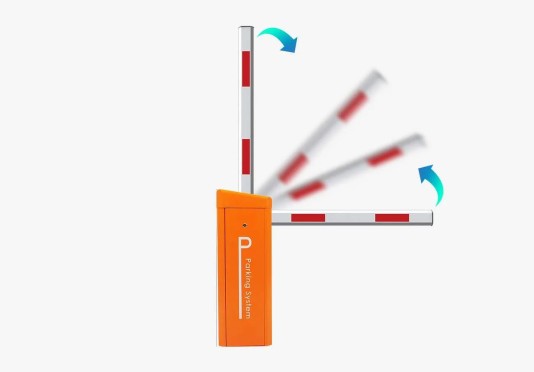

Bi-directional mainshaft, configurable for left or right operation

Working Temperature -30℃~+70℃
Power Supply 24/100/240VAC,50/60Hz
Open/close Speed 0.9Sec-8Sec(Adjustable)
Rated Power 200W
Driving Method Servo motor
Humidity ≤90%
Remote Control Distance ≤100m(open,sunny weather)
Protection Grade IP55
Motor No-load speed 3000r/min

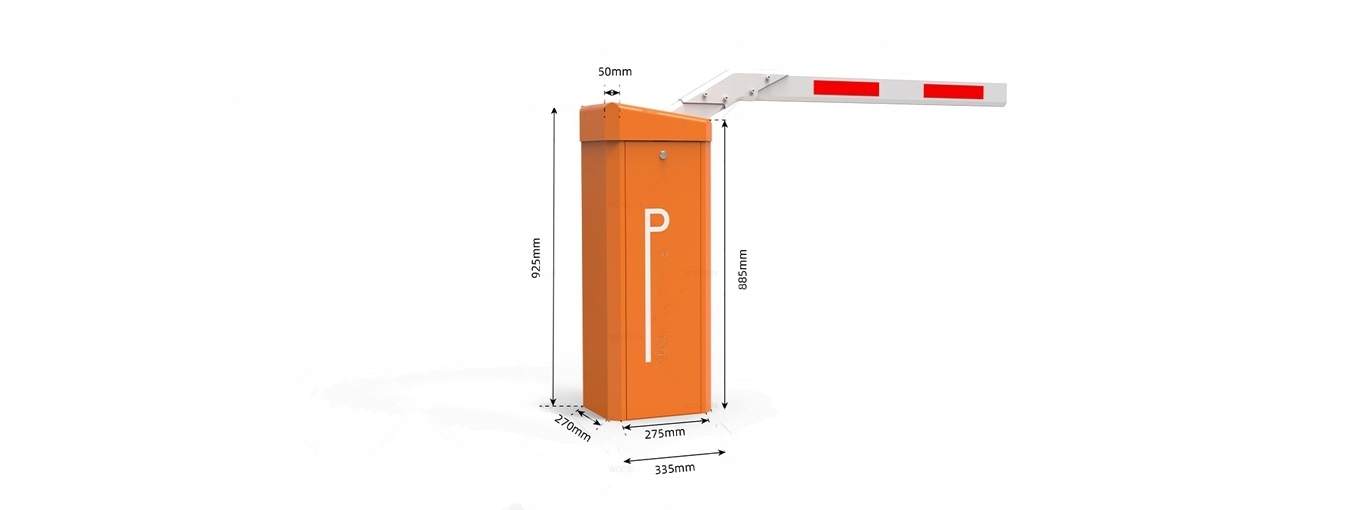

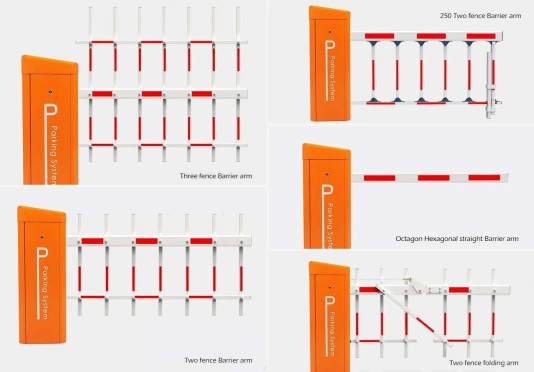

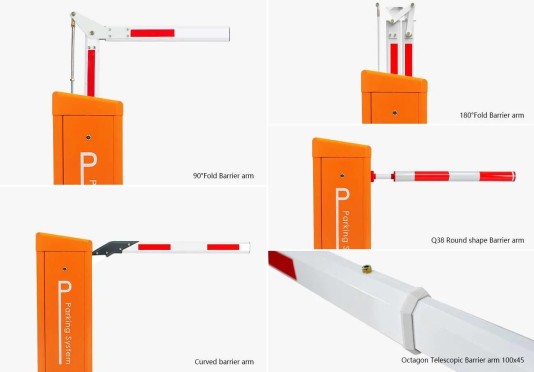

Max Boom Length 3m-6m
