Products

Boom Barrier Gate


Boom Barrier Gate Technical Specification

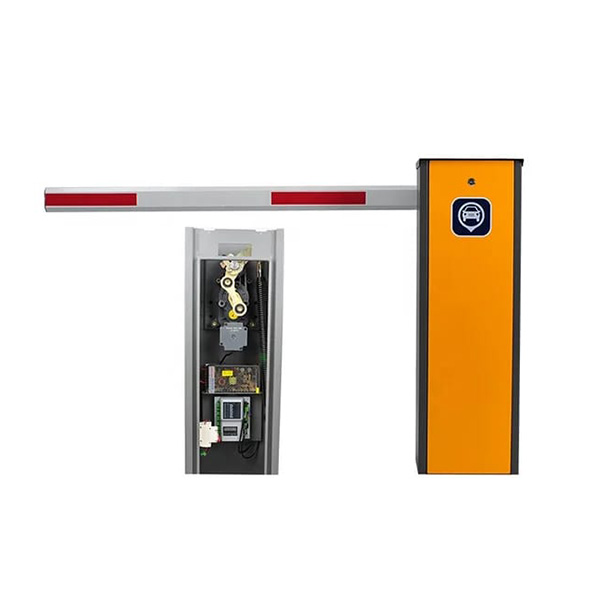

Model TS-485-1
Arm Type Straight Arm
Material 2.0mm cold-rolled steel sheet
Dimensions(L x W X H) 352mm 310mm *950mm
Speed 1-1.8s
Arm Type 3-6m
Operating ambient temperature -35°C TO +75°C
Housing Colour Orange,Red/Yellow
Rated Power 120W
Voltage 220V±10%, 110V±10%


Boom Barrier Gate Technical Specification
Model TS-485-2
Arm Type 90 degree folding arm
Material 2.0mm cold-rolled steel sheet
Dimensions(L x W X H) 352mm 310mm *950mm
Speed 3-6s
Arm Type 3-5m
Operating ambient temperature -35°C TO +75°C
Housing Colour Orange,Red/Yellow
Rated Power 120W
Voltage 220V±10%, 110V±10%



Boom Barrier Gate Technical Specification

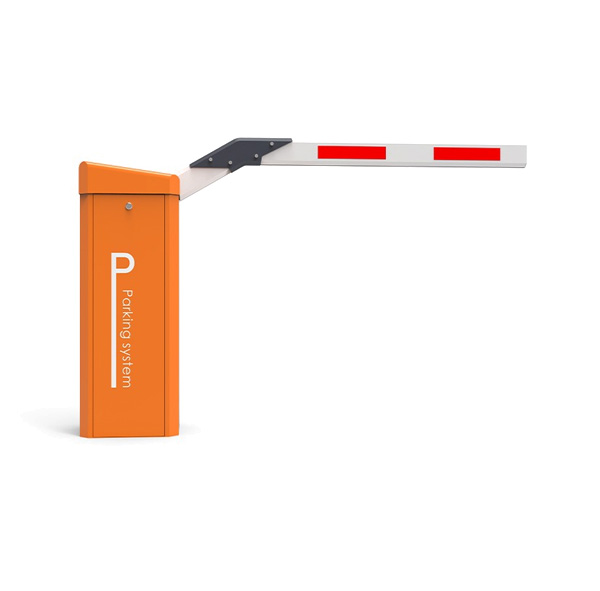

Model TS-485-3
Arm Type 180 degree folding arm
Material 2.0mm cold-rolled steel sheet
Dimensions(L x W X H) 352mm 310mm *950mm
Speed 3-6s
Arm Type 3-5m
Operating ambient temperature -35°C TO +75°C
Housing Colour Orange,Red/Yellow
Rated Power 120W
Voltage 220V±10%, 110V±10%


Boom Barrier Gate Technical Specification
Model TS-485-4
Arm Type 2 fence arm
Material 2.0mm cold-rolled steel sheet
Dimensions(L x W X H) 352mm 310mm *950mm
Speed 3-6s
Arm Type 3-4.5m
Operating ambient temperature -35°C TO +75°C
Housing Colour Orange,Red/Yellow
Rated Power 120W
Voltage 220V±10%, 110V±10%

Boom Barrier Gate Technical Specification

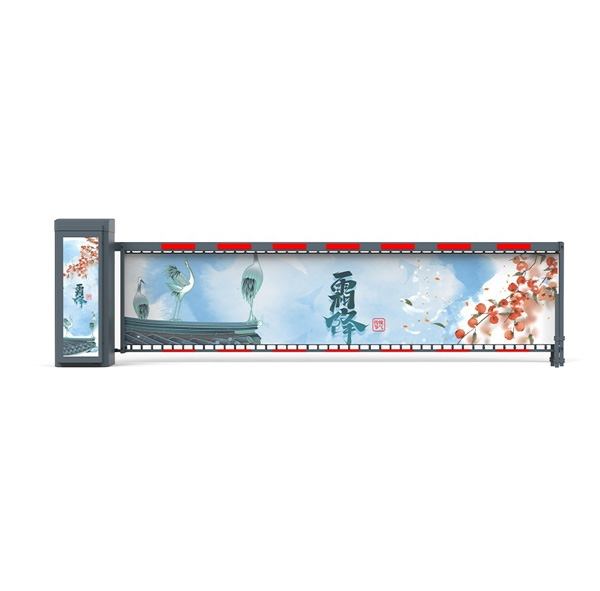

Model TS-485-5
Arm Type 3 fence arm
Material 2.0mm cold-rolled steel sheet
Dimensions(L x W X H) 352mm 310mm *950mm
Speed 3-6s
Arm Type 3-4.5m
Operating ambient temperature -35°C TO +75°C
Housing Colour Orange,Red/Yellow
Rated Power 120W
Voltage 220V±10%, 110V±10%
