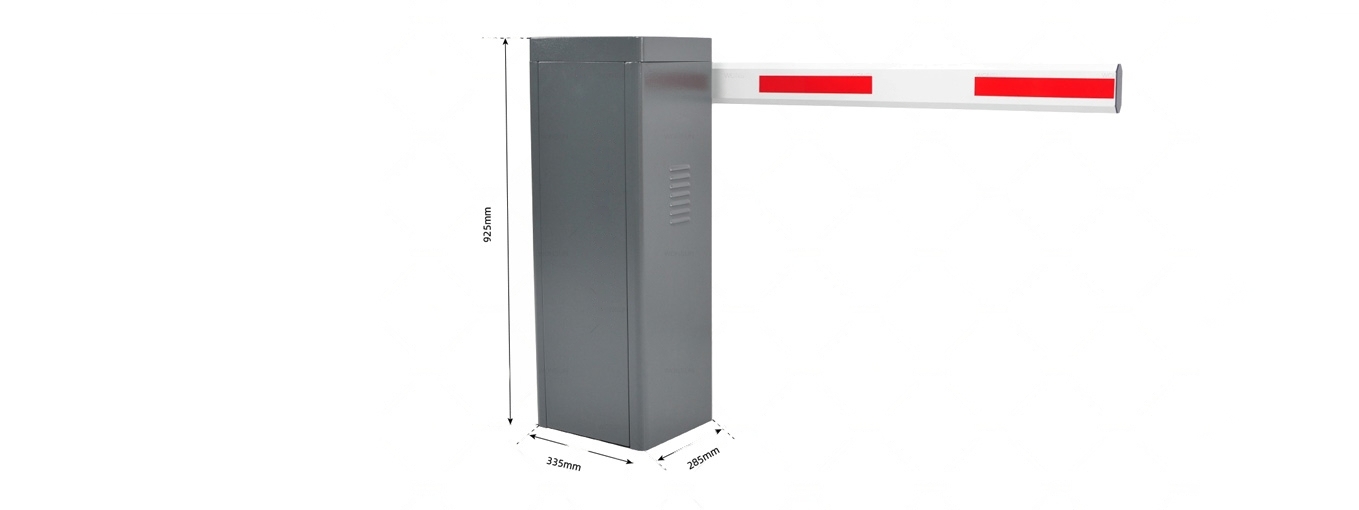

TS-B-600
Introduction
TS-B-600 Series Intelligent Barrier Gates are designed with innovative technology and manufactured using precision machinery to ensure long-term satisfaction in both quality and reliability. The TS-B-600 Intelligent Barrier Gate has been laboratory tested for over 10 million open/close cycles with no degradation in performance—demonstrating an exceptional mechanical lifespan for heavy-duty applications. The system is primarily composed of an electronic control panel that operates the mechanical unit to raise or lower the barrier arm.
Professional parking solution
The Parking Pro is the first choice for operators of multi-Story car parks and solution suppliers thanks to its rapid opening times, low operating costs, easy handling, great reliability and extra- ordinarily long service life.
Innovative Drive Technology
Maintenance-free, energy-efficient, and quiet. High torque ensures reliable operation even in extreme weather.
Legal Security
All barriers from TECHNOSPACIO have A conformity declaration in line with the Machinery Directive and a performance declaration according to Construction Products Regulation. operators and installers are always on the safe side regarding liability issues.

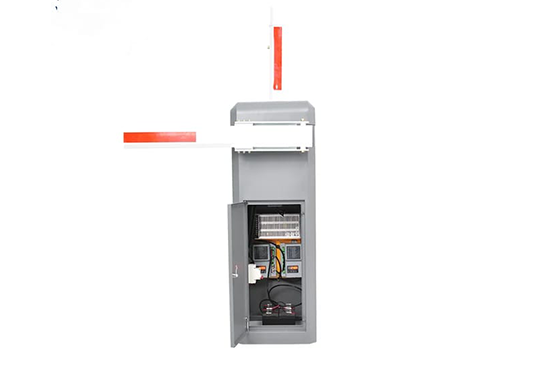

Easy Access to Components
Two simple hand movements Suffice easy access to the control system and drive unit by removing the hood and front panel. This increases user-friendliness and also speeds up commissioning and servicing.
100% duty cycle for continuous operation
Energy-efficient 24V brushless motor with planetary gearbox
Rust-resistant iron cabinet, 2.0 mm thickness
End-position detection without limit switches
Adjustable variable speeds
Dual tension springs for enhanced durability
Bi-directional mainshaft, configurable for left or right operation
| Working Temperature | -30℃~+70℃ |
| Power Supply | DC24V |
| Open/close Speed | 1.5Sec-6Sec |
| Rated Power | 160W |
| Driving Method | DC Brushless Motor |
| Output torque | 56.8N.m |
| Remote Control Distance | ≤100m(open,sunny weather) |
| Protection Grade | IP55 |
| Motor No - load Speed | 1850r/min |
| Max Boom Length | 6m |
