TS-ESD

TECHNICAL SPECIFICATION - ESD TESTER KIT WITH DISPLAY UNIT
ESD Foot Plat :
Dimensions (in mm) 115 L x 175 W x 28.5 H
Working Temperature -20° C ~ 60° C
Working Voltage DC 12V 2A
Wrist Strap 750KΩ ~35MΩ
Static Shoes 750KΩ ~100MΩ
Accuracy ±10%
Responding Time < 500ms
Reading Frequency 13.56 Mhz / 125 Khz / HID
Output RS485, Delay signal
Input Weigand 34/26, RS232 can be customized
Indicator Red, Green LED Light
ESD Access Control System :
RFID Card EM/MF/HID
Operating system Linux

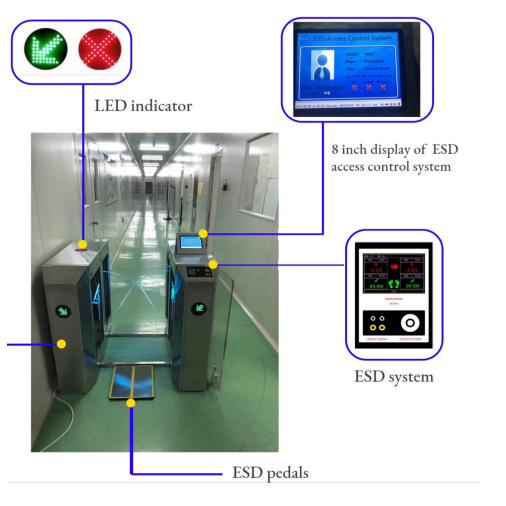

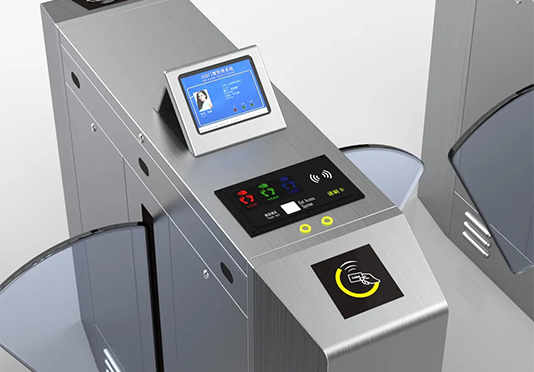

Display size 8-inch to display test result
Display details
  • ESD tester: Single loop jack, Double loop jack, Human body touch test button, Human body discharge static, connect GND, Set range value for High and Low resistance, Resistance of test, Temperature and Humidity.
  • ESD ACS: EM/MF/HID card number, Device IP address, Device No, Red: disconnect with server / Green: Connect with server, Visitor photo, Date & time, Swipe card area.
Features

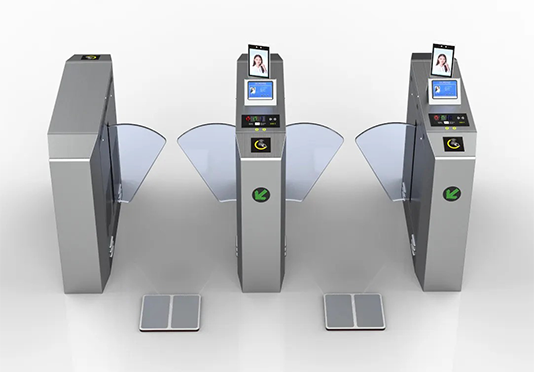

  • Turnstile Access Control: Delay signal output, Barrier opens after ESD test result is "PASS"

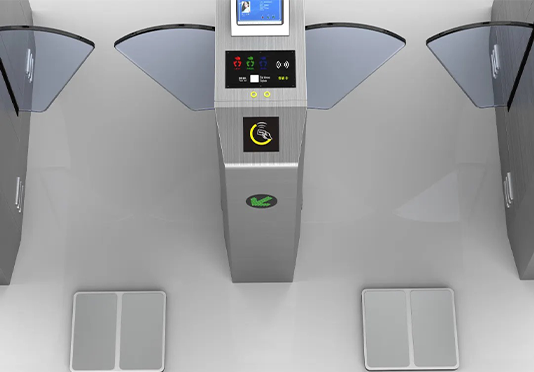

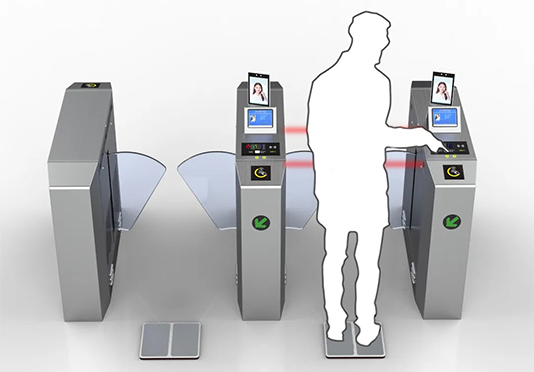

  • The Pedal adopts the independent design of both feet, which can complete the test of the Wrist strap, Left and Right Anti-static shoes at one time.
  • Optional test type: Can be set by dialing code to test only wrist strap, only anti-static shoes, wrist strap/anti-static shoes, neither wrist strap/anti-static shoes.
  • Adjustable upper and lower limit resistances:

    • Adjust the upper limit resistance of the wrist strap
    • Adjust the Lower limit resistance of the wrist strap
    • Adjust the Upper limit resistance of the electrostatic shoe
    • Adjust the Lower limit resistance of the electrostatic shoe

  • The Test results of Wrist strap, Left anti-static shoe and Right anti-static shoe are displayed independently
  • Easy to upgrade: provide card reader interface and RS232 communication interface.
