Boom Barrier Gate

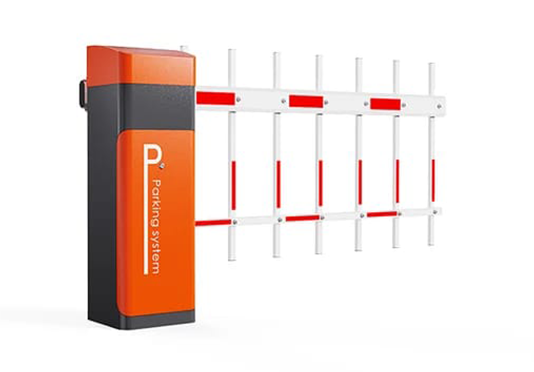

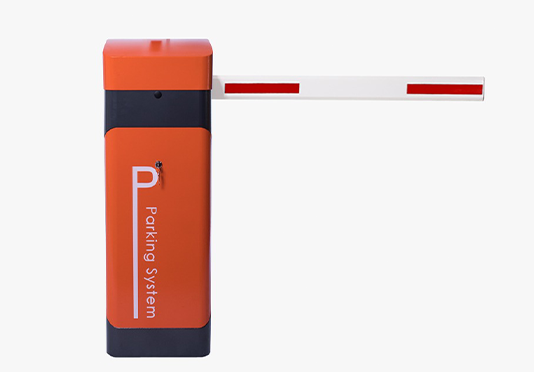

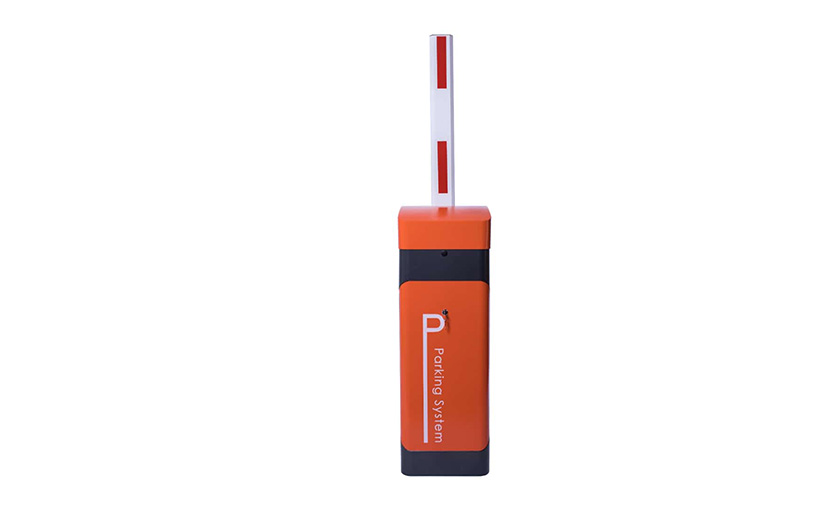

Technospacio 2nd generation DC Brushless motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure, high precision, high consistency and standardization, and use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise, the motor adopts 24V permanent magnet rare earth synchronous DC Brushless motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc.,TS-B-400 series intelligent barrier gates use innovative technology design and manufactured with precision machinery toguarantee satisfaction inquality and reliability for years to come. TS-B-400 Intelligent barrier gate has been labtested for more than 5 millions opening/closing and still without any degrade inperformance-superb mechanical life time for heavy duty application. 1. The operation speed can be adjusted(1.5sec to 6sec). 2. Arm direction can be quickly interchanged. 3. Barrier gate up and down signal relay switch output. 4. R and G Traffic light relay switch signal output. 5. External loop detector signal anti-smashing interface. 6. Infrared sensor signal anti-smashing interface. 7. Count mode interface. 8. Arm swing out function,when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage on vehicle and machine core. 9. High-sensitivity arm auto reverse function (intensity can be adjusted). 10. Parking system interface. 11. RS485 communication interface. 12. The backup battery interface. 13.Automatic arm lift function when power off (need to add power storage module)

Working Temperature -30°C~+70°C
Power Supply DC24V
Open/close Speed 1.5Sec-6Sec
Rated Power 150W
Driving Method DC Brushless Motor
Output Power 56.8N.m
Remote Control Distance ≤100m(open,sunny weather)
Protection Grade IP54
Motor No - load Speed 1850r/min
Max Boom Length 6m
