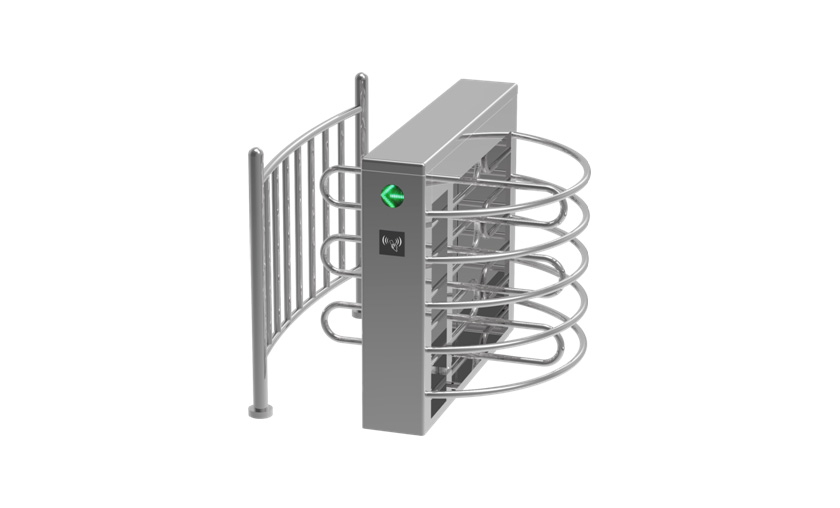

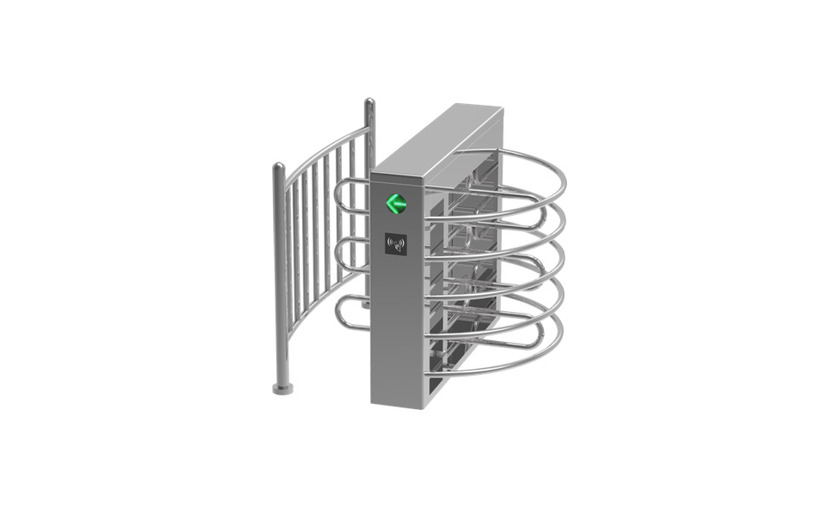

TS-FHT-300
Waist-height turnstiles are a frequent choice for simple access control and monitoring
where security is not the most important priority. Where complete access-control is needed, making it almost
impossible for an unauthorized person to access your site
Waist height turnstiles are built to stop tailgating at the exterior of your facility. While they completely
shut down any attempts at tailgating, they are not able to prevent piggybacking. Waist height turnstiles are
cost-effective and tend to have a lifespan of 25+ years.
We provide models in stainless-steel 304 and 316. They can be powder coated to your preference and can also
be motorized. full waterproofed and weatherproofed
| Power Supply |
AC 220V/110V, 50/60Hz |
| Operating Temperature |
-28 °C- 80 °C |
| Operating Humidity |
5%-85% |
| Working Environment |
Indoor / Outdoor both, IP54 Standard |
| Rated Power |
60W |
| Flow Rate |
25- 48 passage/minute |
| Casework Material |
SUS304 (SUS 316 for option) |
| Mechanism |
Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless
motor for option)
|
| Control System |
Dry contact |
| Emergency Alarm function |
Yes |
| Dimension |

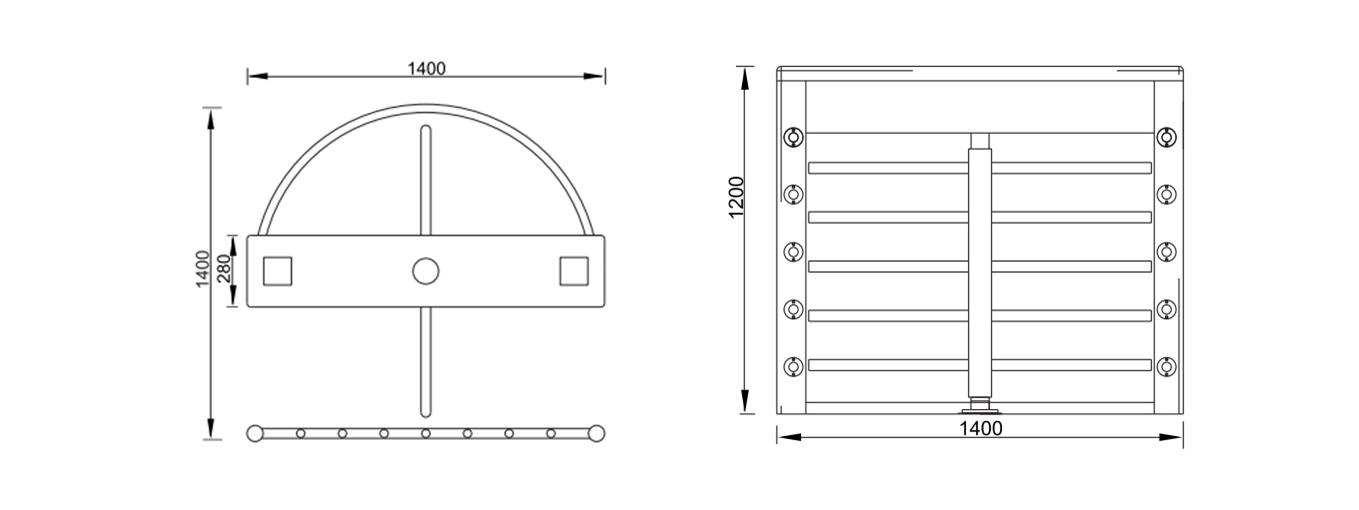

1400 * 1200 * 1400mm height + arm length 500MM |
| Net Weight |
130kgs |
| Operating Humidity |
5%-85% |
| Material Thickness |
1.5mm |
| MCBF
|
Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles |
| Warranty
|
1 years |
