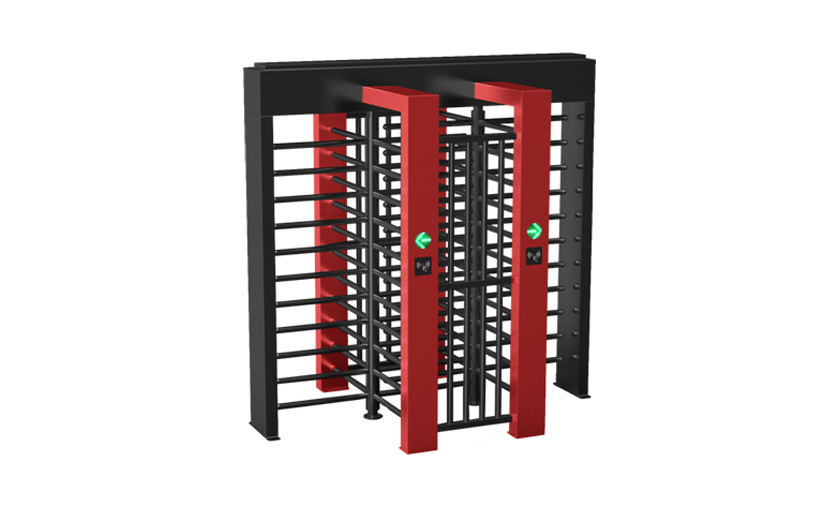

Full Height Turnstile


Full height turnstiles are floor-to-ceiling turnstiles with mechanical rotating barriers. They operate similarly to a revolving door with the only difference being that they allow access to one person at a time by locking after a single person makes entry into the system.

Full height turnstiles are built to stop tailgating at the exterior of your facility. While they completely shut down any attempts at tailgating, they are not able to prevent piggybacking. Full height turnstiles are cost-effective and tend to have a lifespan of 25+ years.

We provide models in stainless-steel 304 and 316. They can be powder coated to your preference and can also be motorized. full waterproofed and weatherproofed

Technical Specification
Power Supply AC 220V/110V, 50/60Hz
Operating Temperature -28 °C- 80 °C
Operating Humidity 5%-85%
Working Environment Indoor / Outdoor both, IP54 Standard
Rated Power 60W
Flow Rate 25- 48 passage/minute
Casework Material SUS304 (SUS 316 for option)
Mechanism Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless motor for option)
Control System Dry contact
Emergency Alarm function Yes

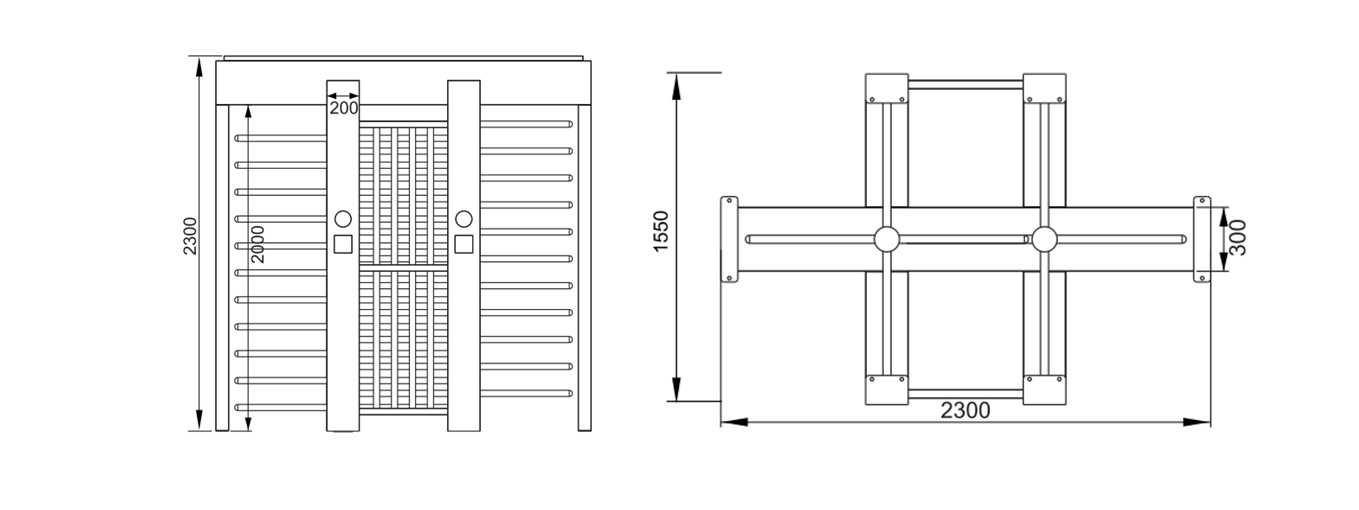

Dimension 1500 diameter * 2300mm height + arm length 700MM
Net Weight 180kgs
Operating Humidity 5%-85%
Material Thickness 1.5mm
MCBF Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles
Warranty 1 years
