TS-FHT-400
Introduction
Waist-height turnstiles are a frequent choice for simple access control and monitoring
where security is not the most important priority. Where complete access-control is needed, making it almost
impossible for an unauthorized person to access your site. Waist height turnstiles are built to stop tailgating at the exterior of your facility.
While they completely shut down any attempts at tailgating, they are not able to prevent piggybacking.
Waist height turnstiles are cost-effective and tend to have a lifespan of 25+ years.
We provide models in stainless-steel 304 and 316. They can be powder coated to your preference and can also
be motorized. full waterproofed and weatherproofed.
Reliability
Constructed entirely from 304 stainless steel. For applications in humid or corrosive environments, we recommend using 316 stainless steel or applying a special protective coating. Features the patented TECHNOSPACIO compact mechanism, designed to ensure the long life of internal lubricating oil. Equipped with high-quality electrical components.
Safety and User-Orientated Design
Smooth operation specifically designed for mass transit applications. Device features pictograms indicating access permission and direction of movement. Compatible with multiple access control systems, including: RFID, fingerprint, password, push button, facial recognition, IRIS/palm vein recognition, and more.
Easy Integration
Flexible reader installation plate, Customers can easily integrate third-party readers. Standard electrical interface for third-party devices. By using a compact mechanism, the turnstile has more internal space for integration. Technospacio provides integration services at the factory, with boards and peripherals pre-installed to ensure full system compliance. When the turnstile is delivered, simply plug it in and configure the settings — saving installation costs.
Swipe Card
- Access with authorized card and payment cards. Swipe to open the way
Iris Recognition
- Use the authorized eyes of Iris Recognition to pass through the entry gates.
Fingerprint Recognition
- Access with authorized fingerprint authentication.
Manual Operation
- Manual use of wired and wireless to open gates for entry.
Coin/Ticket
- Use disposable coins to coin through to enter.
Face Recognition
- Use authorized face recognition to enter.
Vein Recognition
- Use authorized palm vein recognition to pass into.
QR Code
- Scan in with authorization QR code and barcode.
| Power Supply | AC 220V/110V, 50/60Hz |
| Operating Temperature | -28 °C- 80 °C |
| Operating Humidity | 5%-85% |
| Working Environment | Indoor / Outdoor both, IP54 Standard |
| Rated Power | 60W |
| Flow Rate | 25- 48 passage/minute |
| Casework Material | SUS304 (SUS 316 for option) |
| Mechanism | Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless motor for option) |
| Control System | Dry contact |
| Emergency Alarm function | Yes |

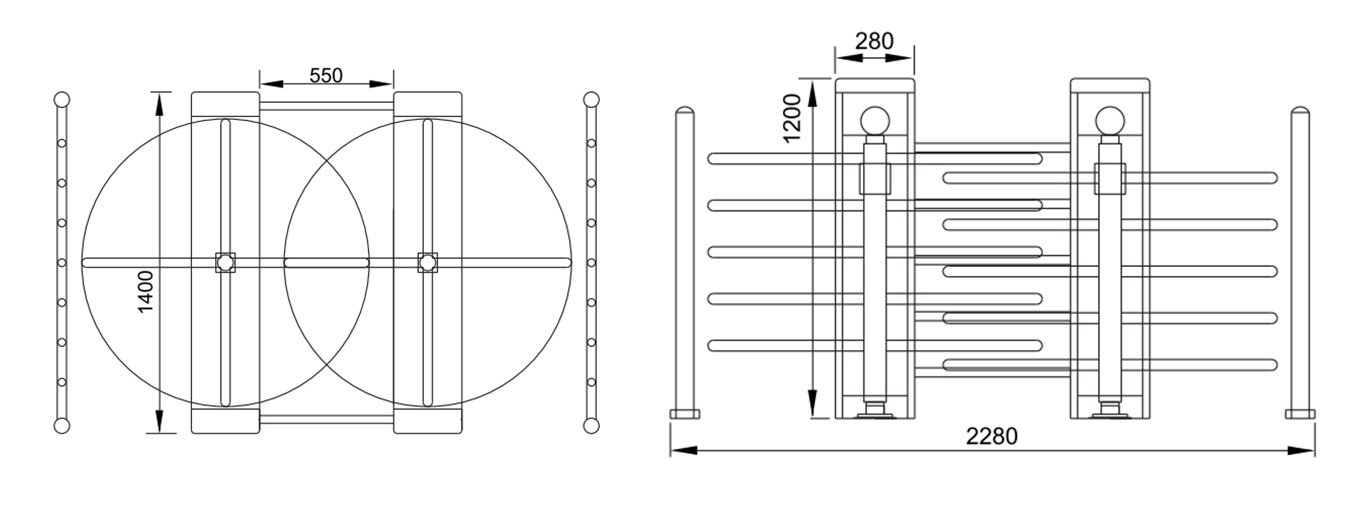

| Dimension | 1400 * 1200 * 1400mm height + arm length 500MM |
| Net Weight | 130kgs |
| Operating Humidity | 5%-85% |
| Material Thickness | 1.5mm |
| MCBF | Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles |
| Warranty | 1 year |
