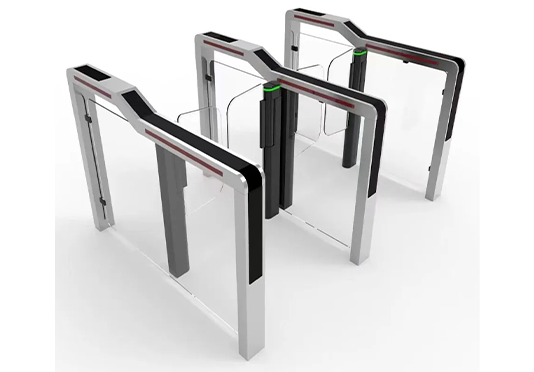

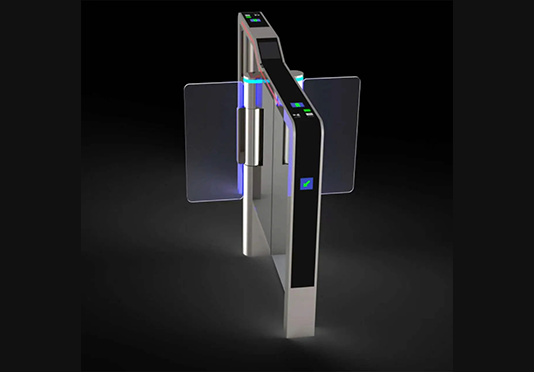

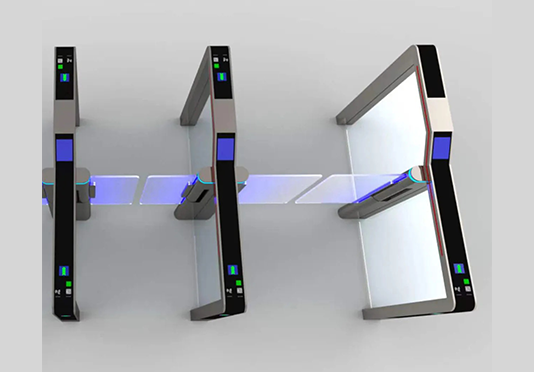

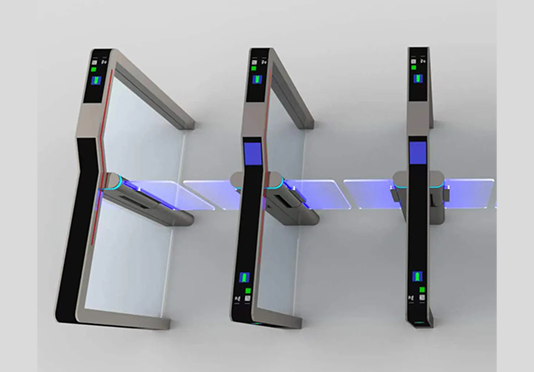

Speed Barrier Gate

TS-SG-1000



General Information:

TECHNOSPACIO Elegant High Speed gate TS-SG-1000 provide fast, reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space.

It features for slim and stylish appearance. full body with clear tempered glass/lazer pattern acrylic (optional) adaptable to match any aesthetic requirements, while still retaining high level security features.

Main Features:
  • Fast & Efficient: Allow continous passer of up to 30-40 people per minutes,(pending on swing size)
  • Quiet and smooth in operation, the ideal choice for sites where limited space is available and aesthetics are of high importance.
  • Adopt ARM control technology and modular mechanism, durable and solid in peformance.
  • High customisable;Available with various length,height and colour options.
Access Control System(Optional) Product Details
    Easy Integration
  • Flexible reader installation plate. Customers can easily integrate with third party redaer
  • Standard electrical interface for third party device.
  • By using compact mechanism, the turnstile has more space inside for integration
  • TECHNOSPACIO provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation.
Brand name TECHNOSPACIO
Motor type DC SERVO motor
Cabinet Material SUS304+Side Glass panel+Top black acrylic lid
Passage Width 600-900mm
Rated Power 50W
Flow rate 30-40 persons/minute (pending on swing panel size)
Passage direction Single directional/Bi-directional
IR sensor(qty.) 4 pairs(defaulted)
Power input AC100-240V,50/60HZ
Emergency signal Yes
Swing panel Acrylic/tempered (optional)
Working voltage 50volt
Working humidity 30%~95%
Working temperature -40℃~+70℃

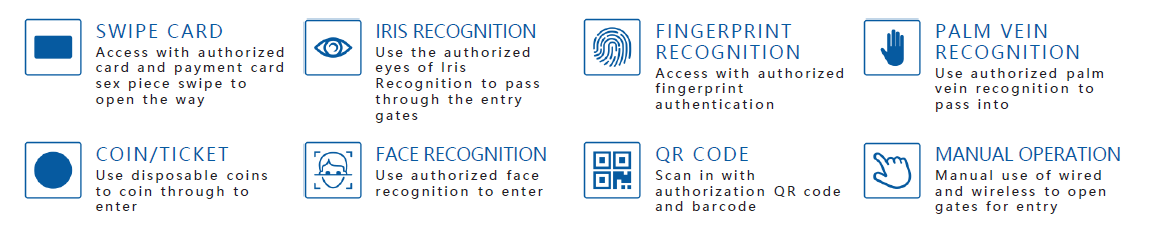

Compatibility Compatible to all recogntion methods available
Communication interface RS232/485
Net Weight(kg) 55

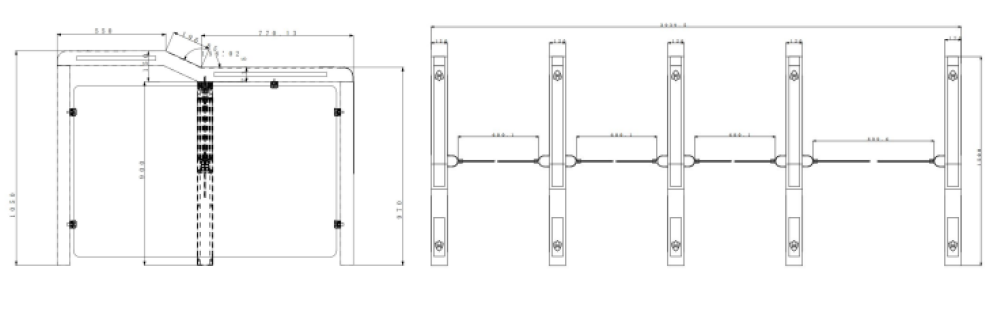

Dimension(mm) 1500*120*1000
