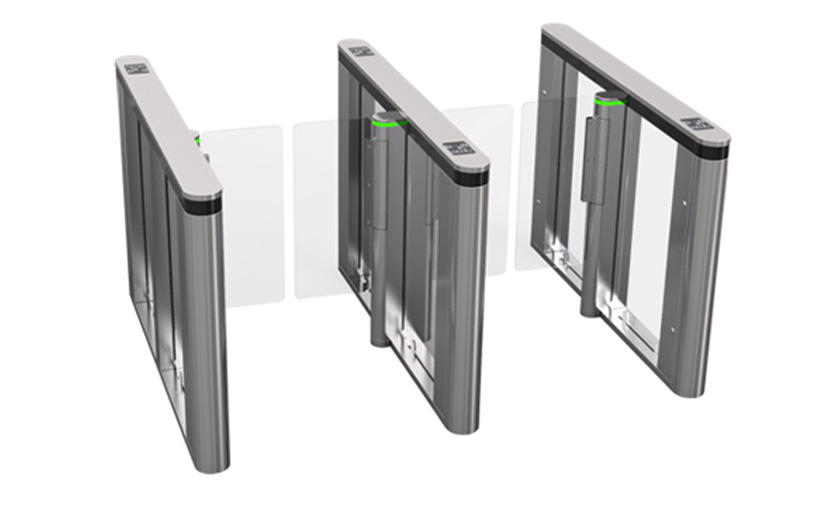

Speed Barrier Gate


TECHNOSPACIO Elegent High Speed gate TS-SG-300 speed gates provide fast, reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space. Our stylish speed gate offers exciting new materials, a selection of finishes and lighting effects. A stylish and flexible new design, adaptable to match any aesthetic requirements, while still retaining high level security features.

Technical Specification
Motor type DC brushless motor
Cabinet Material SUS304\SUS316(optional)T=1.5mm
Passage width(mm) 600-900mm
Rated Power 50W
Flow rate 30-40 persons/minute (pending on swing panel size)
Passage direction Single directional/Bi-directional
IR sensor(qty.) 4 pairs(defaulted)
Power input AC100-240V,50/60HZ
Emergency signal Yes
Swing panel Acrylic/tempered (optional)
Working voltage 50volt
Working humidity 30%~95%
Working temperature -40℃~+70℃
Compatibility Compatible to all recogntion methods available
Communication interface RS232/485
Net Weight(kg) 65

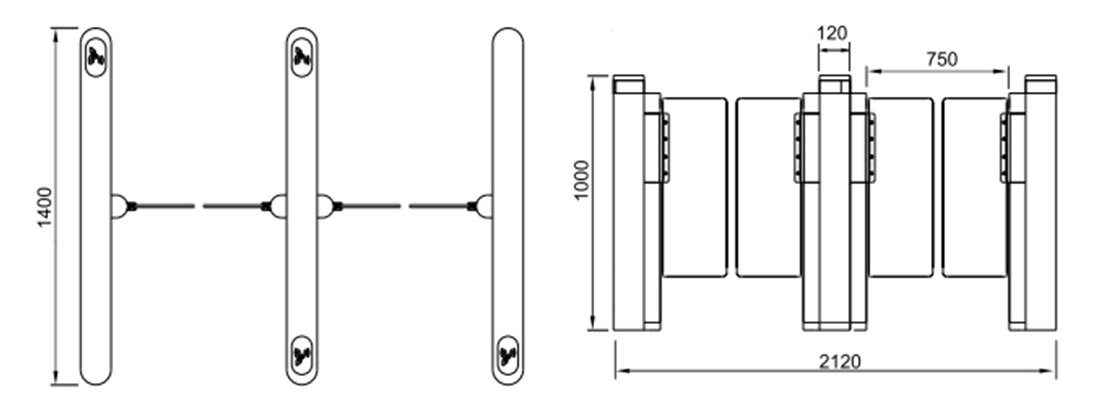

Dimension(mm) 1400*120*1000
