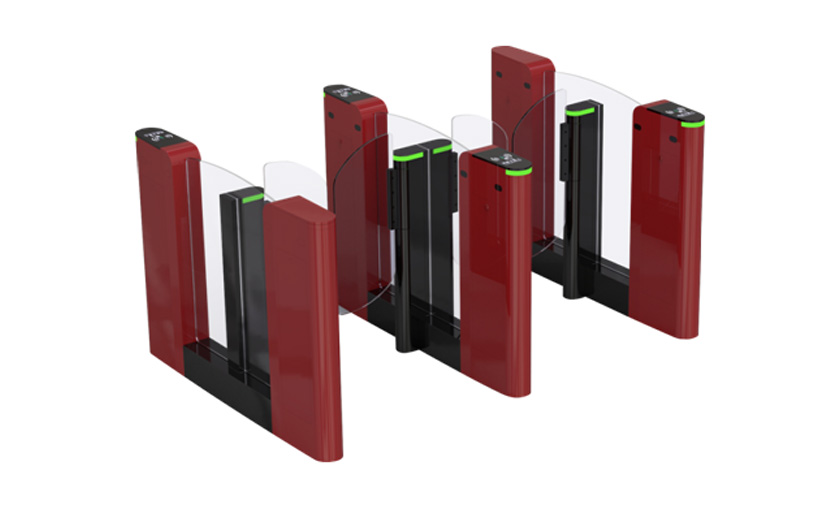

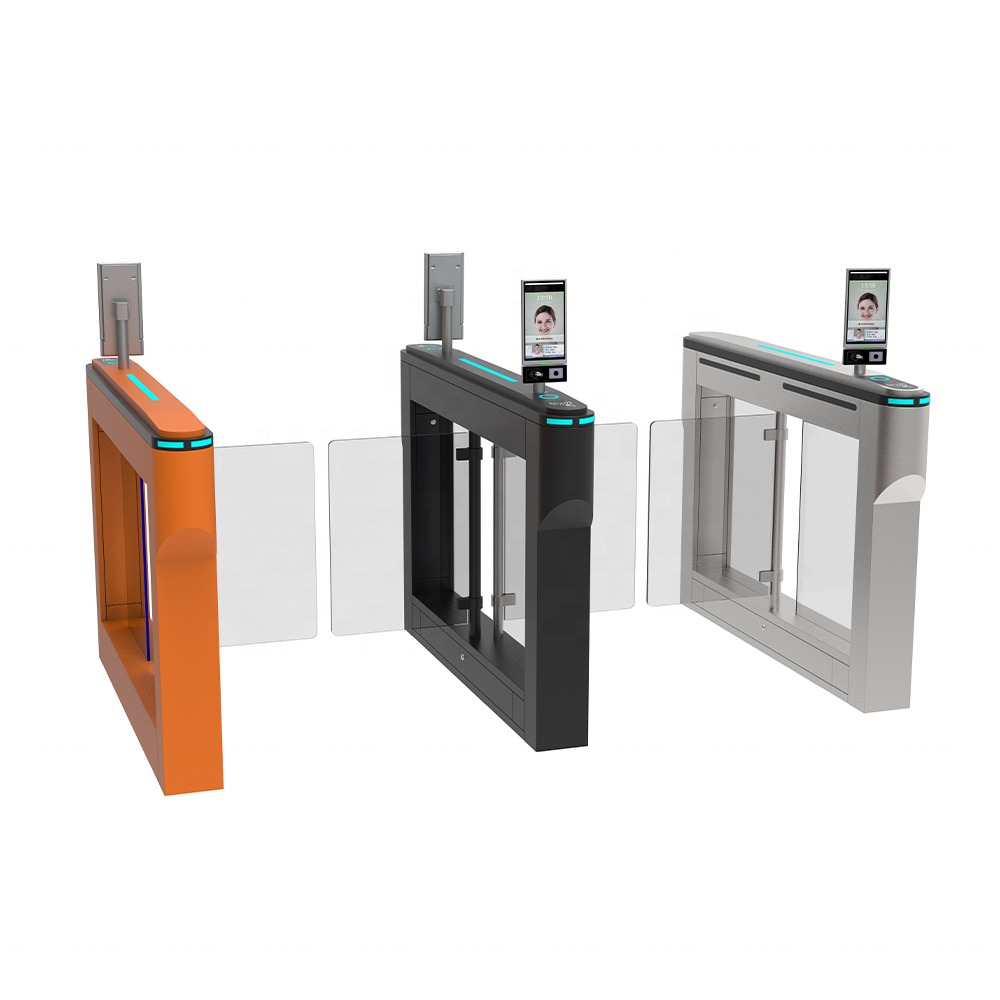

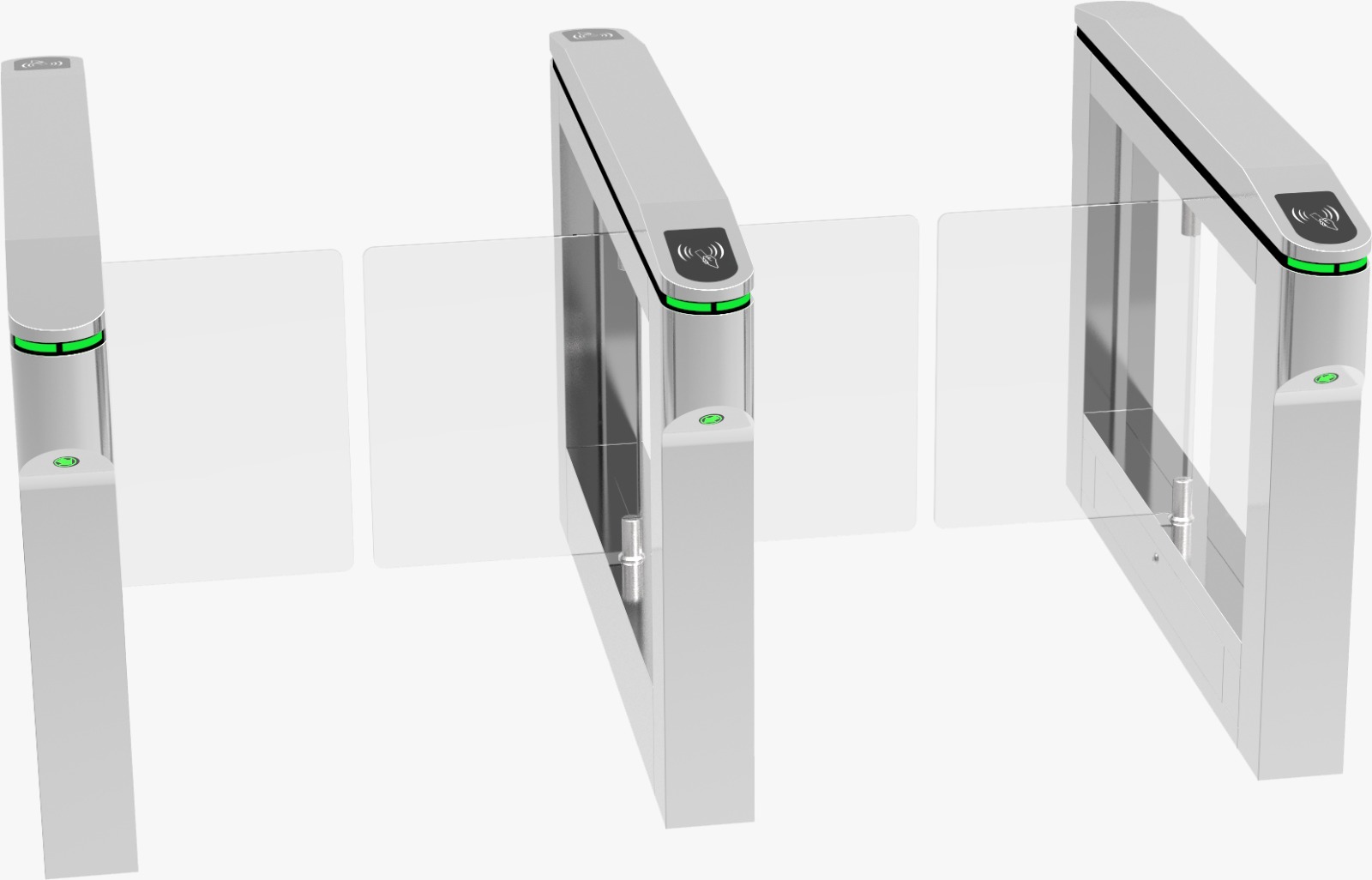

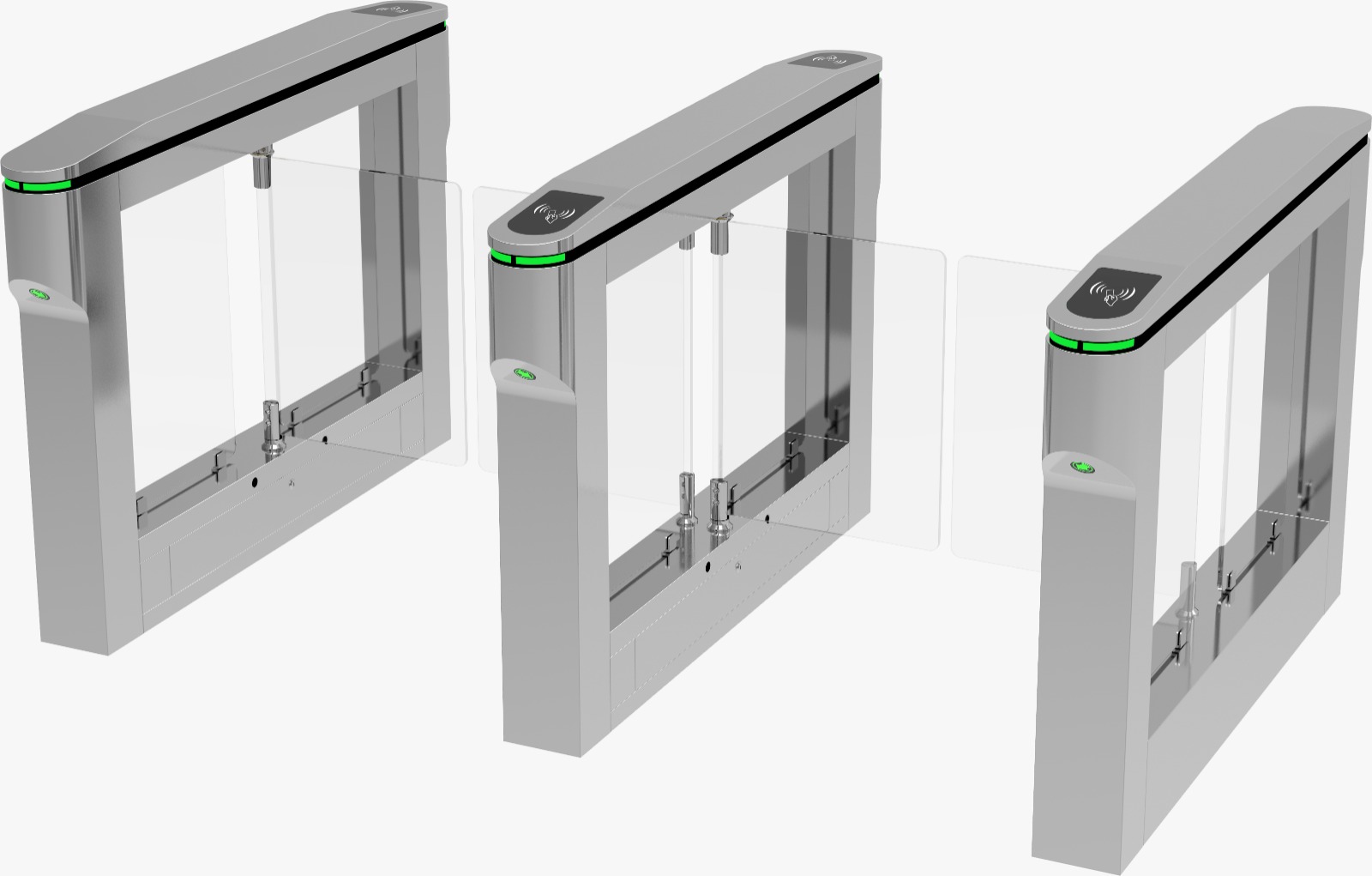

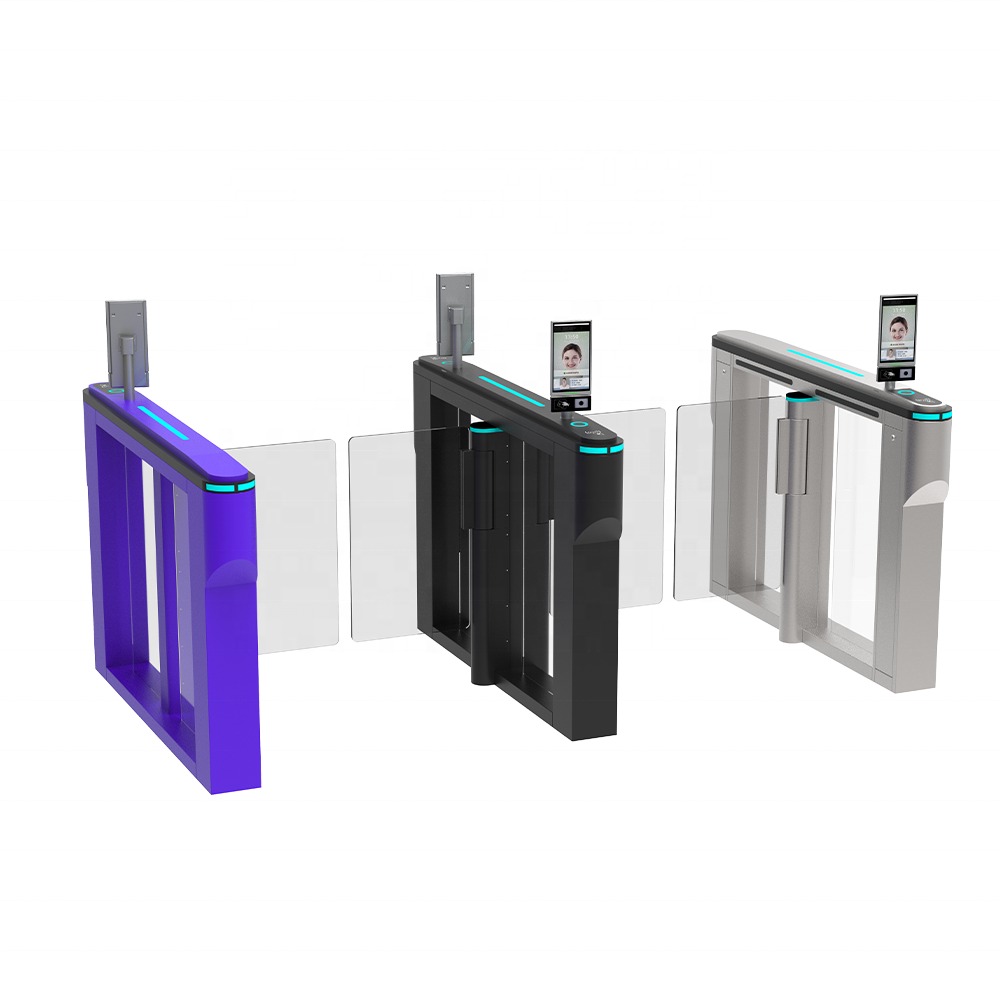

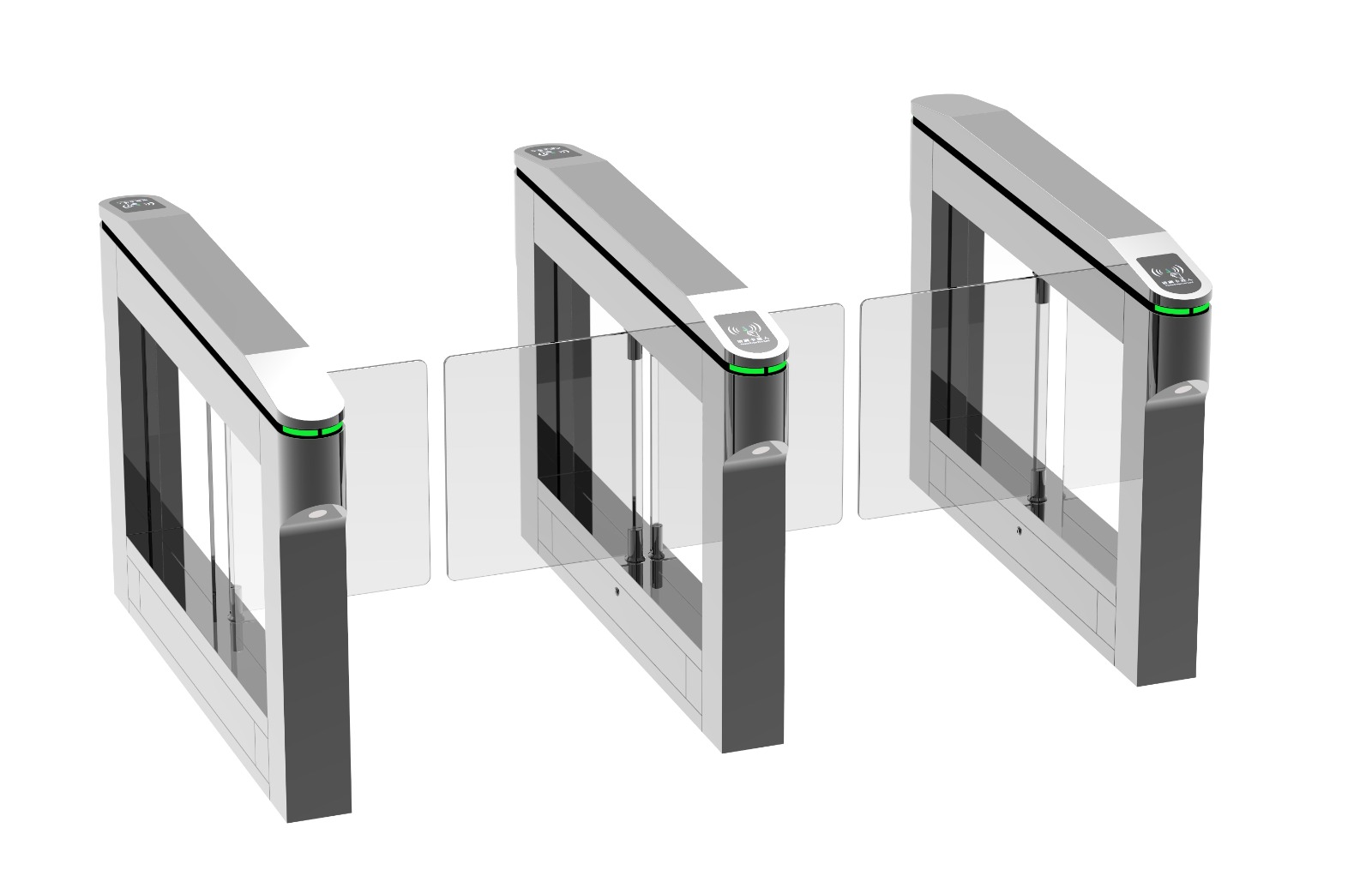

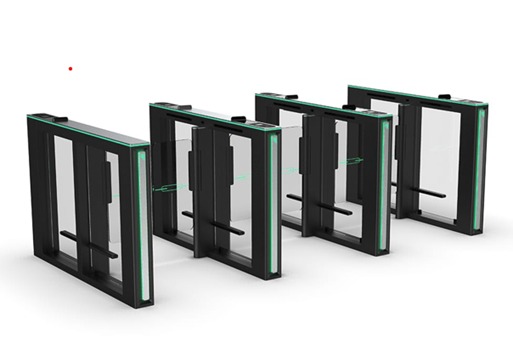

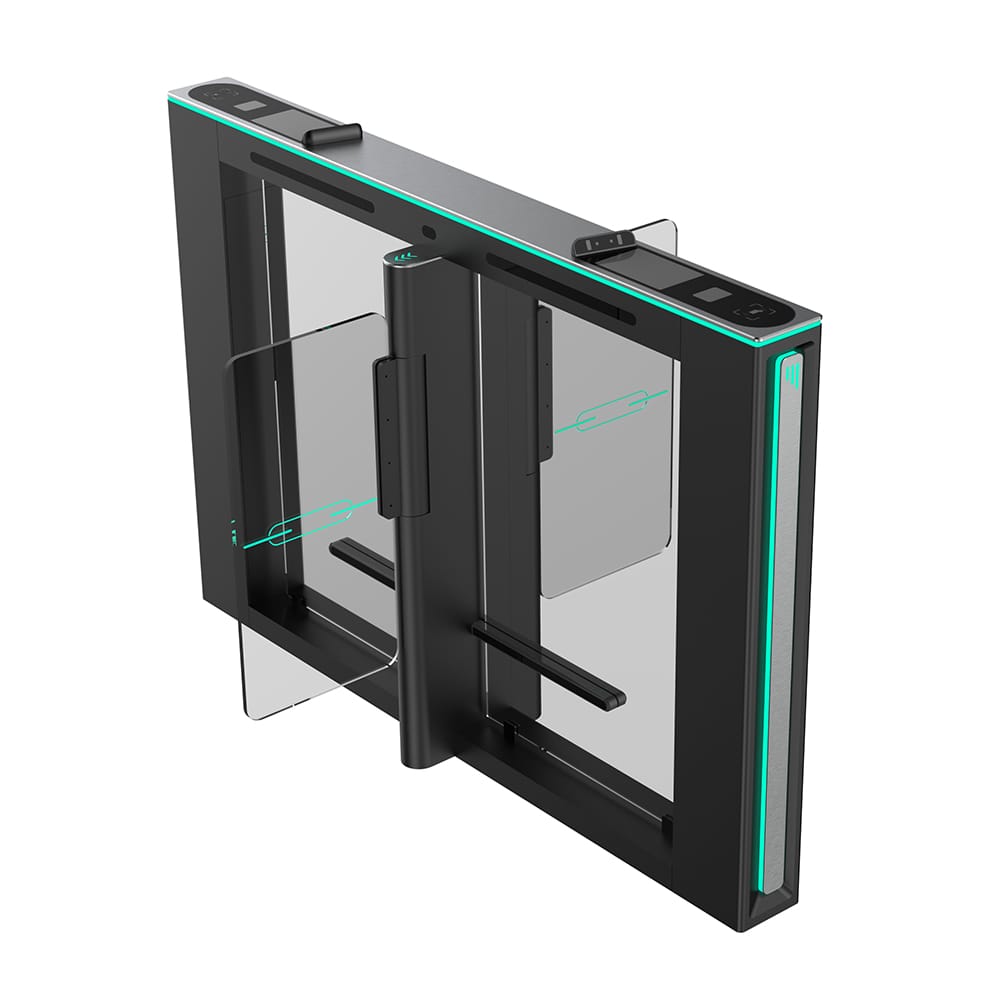

TECHNOSPACIO Elegent High Speed gate TS-SG-600 provide fast, reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space. It features for slim and stylish appearance. full body with clear tempered glass/lazer pattern acrylic (optonal) adaptable to match any aesthetic requirements, while still retaining high level security features.
Reliability
Upgraded mechanism with smooth operation and durable performance. MCBF: 8 million cycles. Precise and responsive swing panel positioning. Self-developed mainboard with modular design and ARM control technology. Easier maintenance with reduced service requirements. One-year factory warranty.
Minimal Footprint

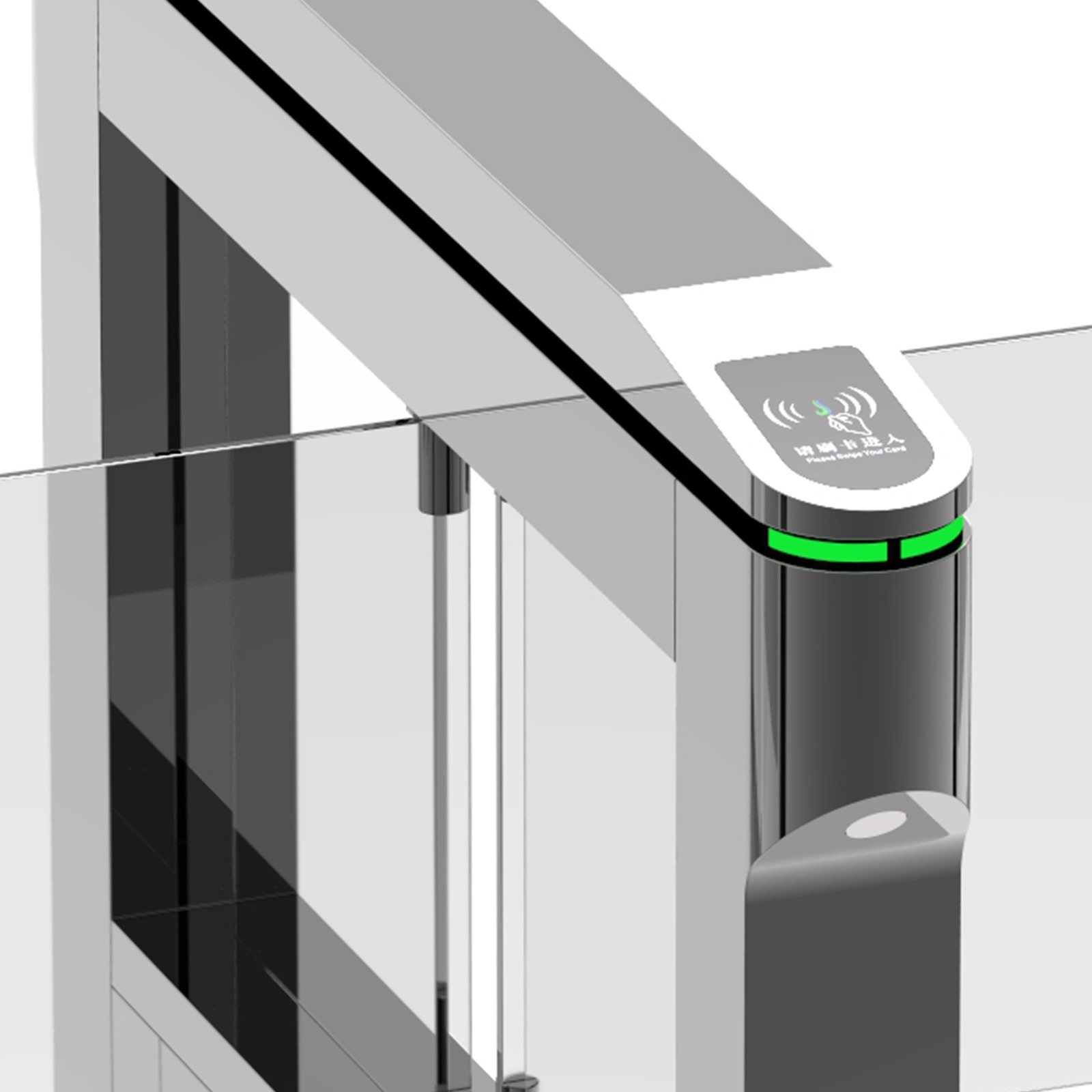

Elegant and high-end appearance design. Visible tri-color indicator to enhance access experience with comfort and ease. Passage width can be customized. Ideal for regular lanes as well as wheelchair-accessible lanes. Supports swing panel logo printing. Specially designed case shape,user-friendly for passengers to swipe cards or use biometric methods.
Easy Integration
Flexible reader installation plate, Customers can easily integrate third-party readers. Standard electrical interface for third-party devices. By using a compact mechanism, the turnstile has more internal space for integration. Technospacio provides integration services at the factory, with boards and peripherals pre-installed to ensure full system compliance. When the turnstile is delivered, simply plug it in and configure the settings — saving installation costs.
Swipe Card
Iris Recognition
Fingerprint Recognition
Manual Operation
Coin/Ticket
Face Recognition
Vein Recognition
QR Code
Brand name | TECHNOSPACIO |
Motor type | DC Brushless motor |
Cabinet Material | SUS304+Side Glass panel+Top black acrylic lid |

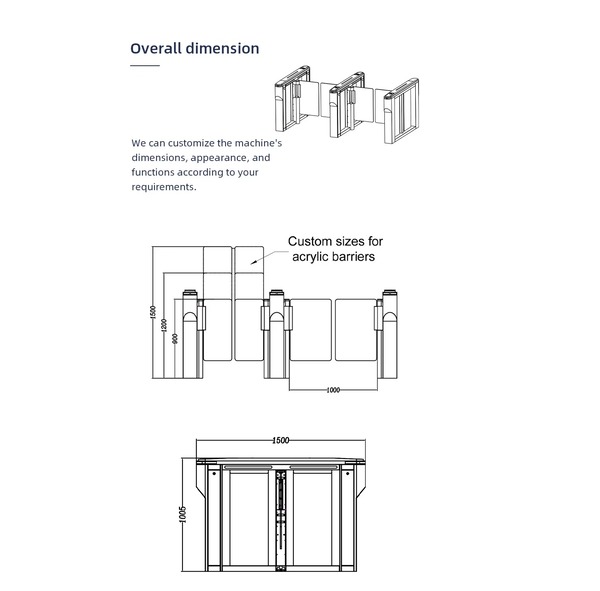

Passage width(mm) | 600-900mm |
Rated Power | 50W |
Flow rate | 30-40 persons/minute (depending on swing panel size) |
Passage direction | Single directional/Bi-directional |
IR sensor(qty.) | 4 pairs(default) |
Power input | AC100-240V,50/60HZ |
Emergency signal | Yes |
Swing panel | Acrylic/tempered (optional) |
Working voltage | 50volt |
Working humidity | 30%~95% |
Working temperature | -40℃~+70℃ |
Compatibility | Compatible to all recognition methods available |
Communication interface | RS232/485 |
Net Weight(kg) | 55 |

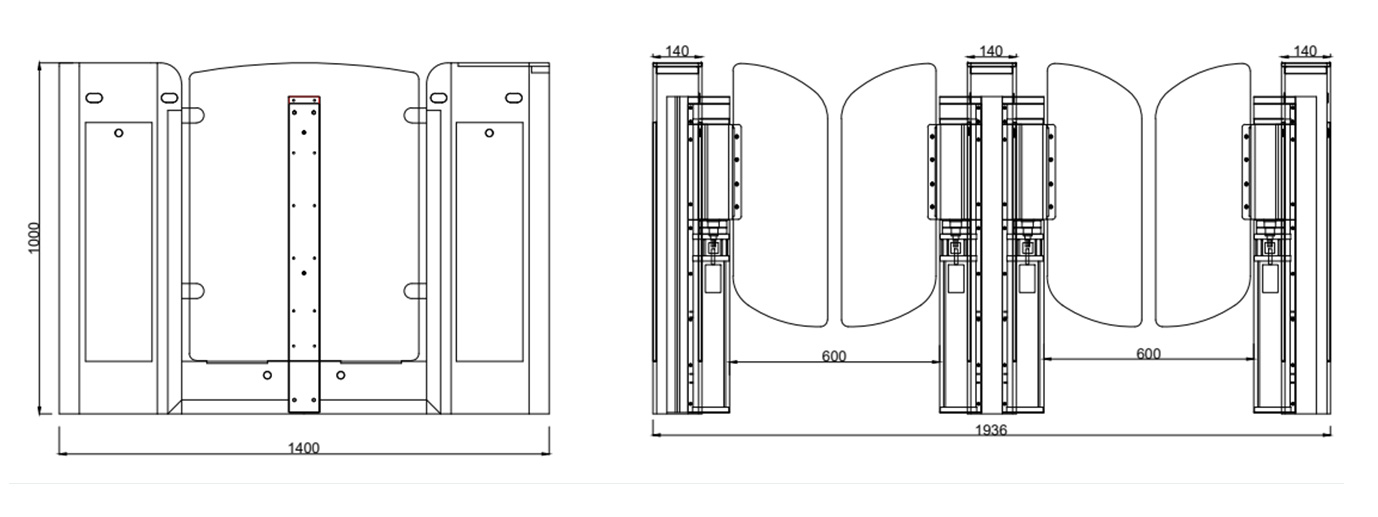

Dimension(mm) | 1400*120*1000 |
