Speed Barrier Gate

TS-SG-800

Introduction

TECHNOSPACIO Elegent High Speed gate TS-SG-800 provide fast, reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space. It features for slim and stylish appearance. full body with clear tempered glass/lazer pattern acrylic (optonal) adaptable to match any aesthetic requirements, while still retaining high level security features.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio

Reliability

Upgraded mechanism with smooth operation and durable performance. MCBF: 8 million cycles. Precise and responsive swing panel positioning. Self-developed mainboard with modular design and ARM control technology. Easier maintenance with reduced service requirements. One-year factory warranty.

Minimal Footprint

Elegant and high-end appearance design. Visible tri-color indicator to enhance access experience with comfort and ease. Passage width can be customized. Ideal for regular lanes as well as wheelchair-accessible lanes. Supports swing panel logo printing. Specially designed case shape,user-friendly for passengers to swipe cards or use biometric methods.

Easy Integration

Flexible reader installation plate, Customers can easily integrate third-party readers. Standard electrical interface for third-party devices. By using a compact mechanism, the turnstile has more internal space for integration. Technospacio provides integration services at the factory, with boards and peripherals pre-installed to ensure full system compliance. When the turnstile is delivered, simply plug it in and configure the settings — saving installation costs.

Swipe Card

  • Access with authorized card and payment cards. Swipe to open the way

Iris Recognition

  • Use the authorized eyes of Iris Recognition to pass through the entry gates.

Fingerprint Recognition

  • Access with authorized fingerprint authentication.

Manual Operation

  • Manual use of wired and wireless to open gates for entry.

Coin/Ticket

  • Use disposable coins to coin through to enter.

Face Recognition

  • Use authorized face recognition to enter.

Vein Recognition

  • Use authorized palm vein recognition to pass into.

QR Code

  • Scan in with authorization QR code and barcode.
Brand name TECHNOSPACIO
Motor type DC Brushless motor
Cabinet Material SUS304+Side Glass panel+Top black acrylic lid
Passage width(mm) 600-900mm
Rated Power 50W
Flow rate 30-40 persons/minute (pending on swing panel size)
Passage direction Single directional/Bi-directional
IR sensor(qty.) 4 pairs(default)
Power input AC100-240V,50/60HZ
Emergency signal Yes
Swing panel Acrylic/tempered (optional)
Working voltage 50volt
Working humidity 30%~95%
Working temperature -40℃~+70℃
Compatibility Compatible to all recogntion methods available
Communication interface RS232/485
Net Weight(kg) 55

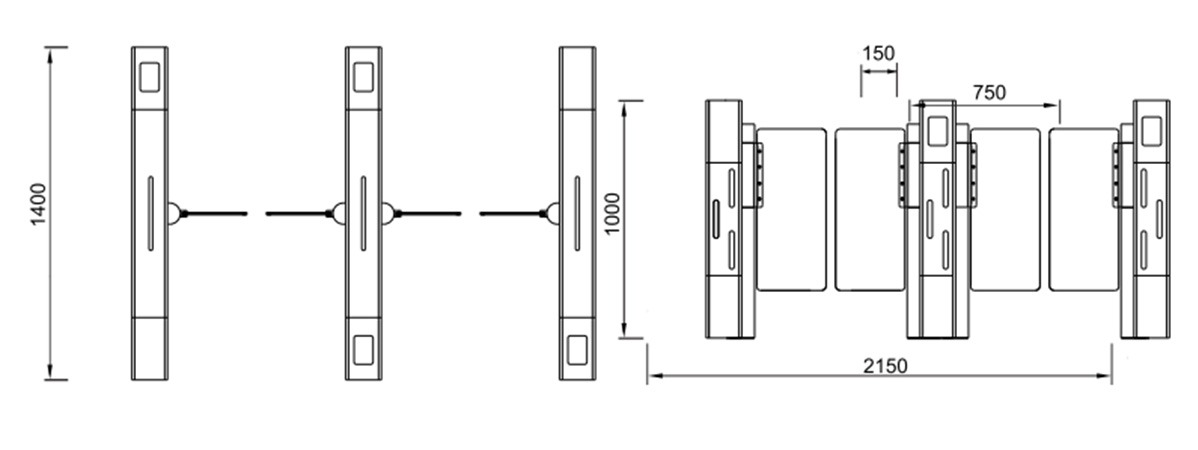

Dimension(mm) 1400*150*1000
