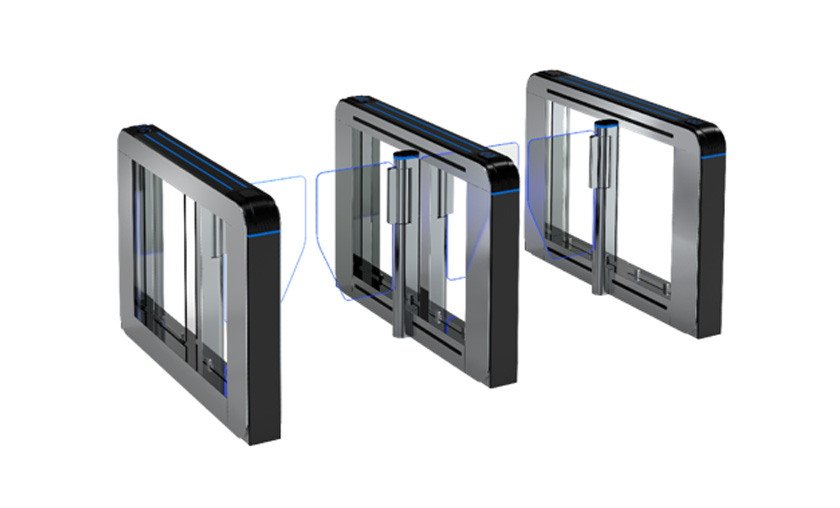

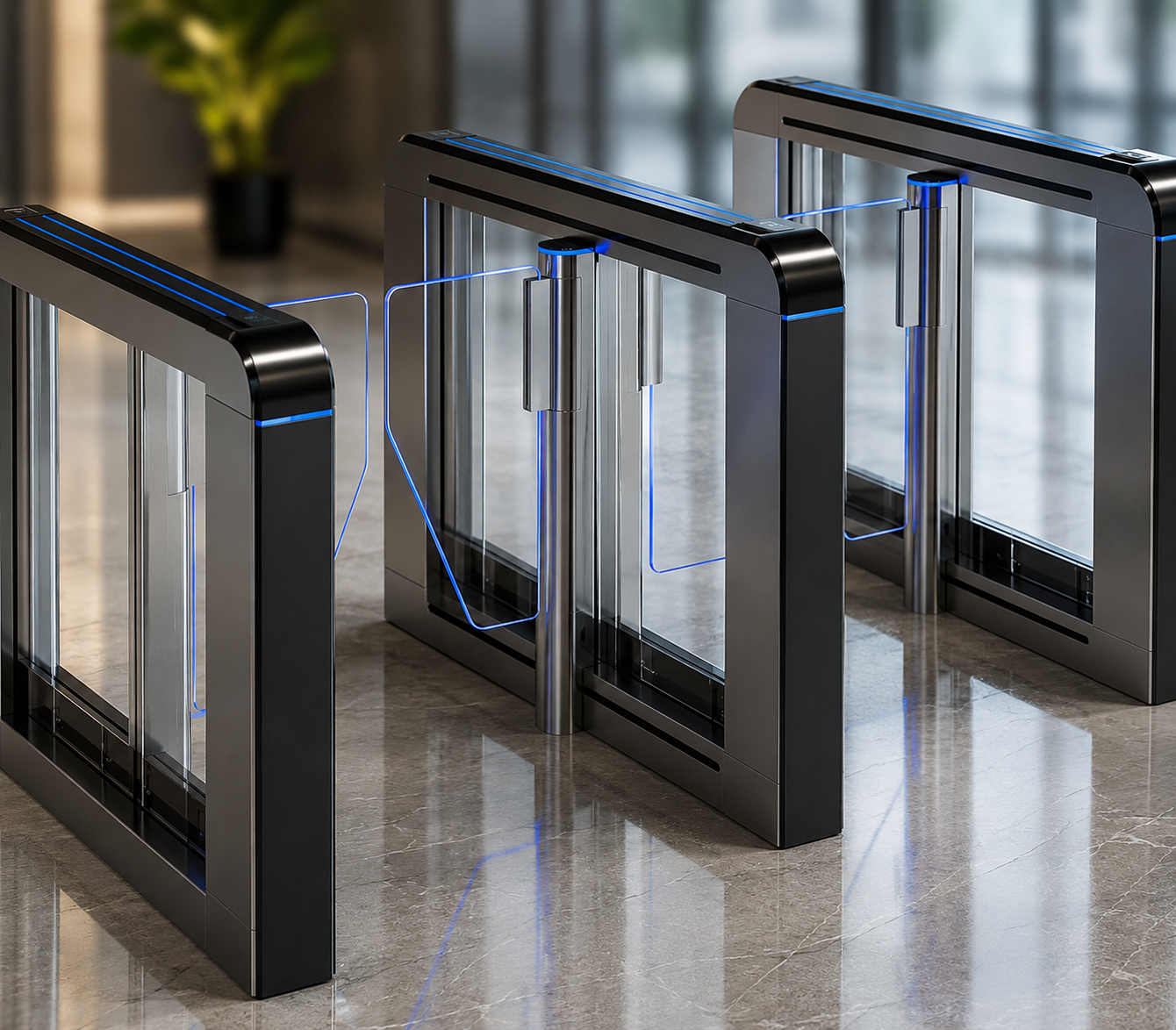

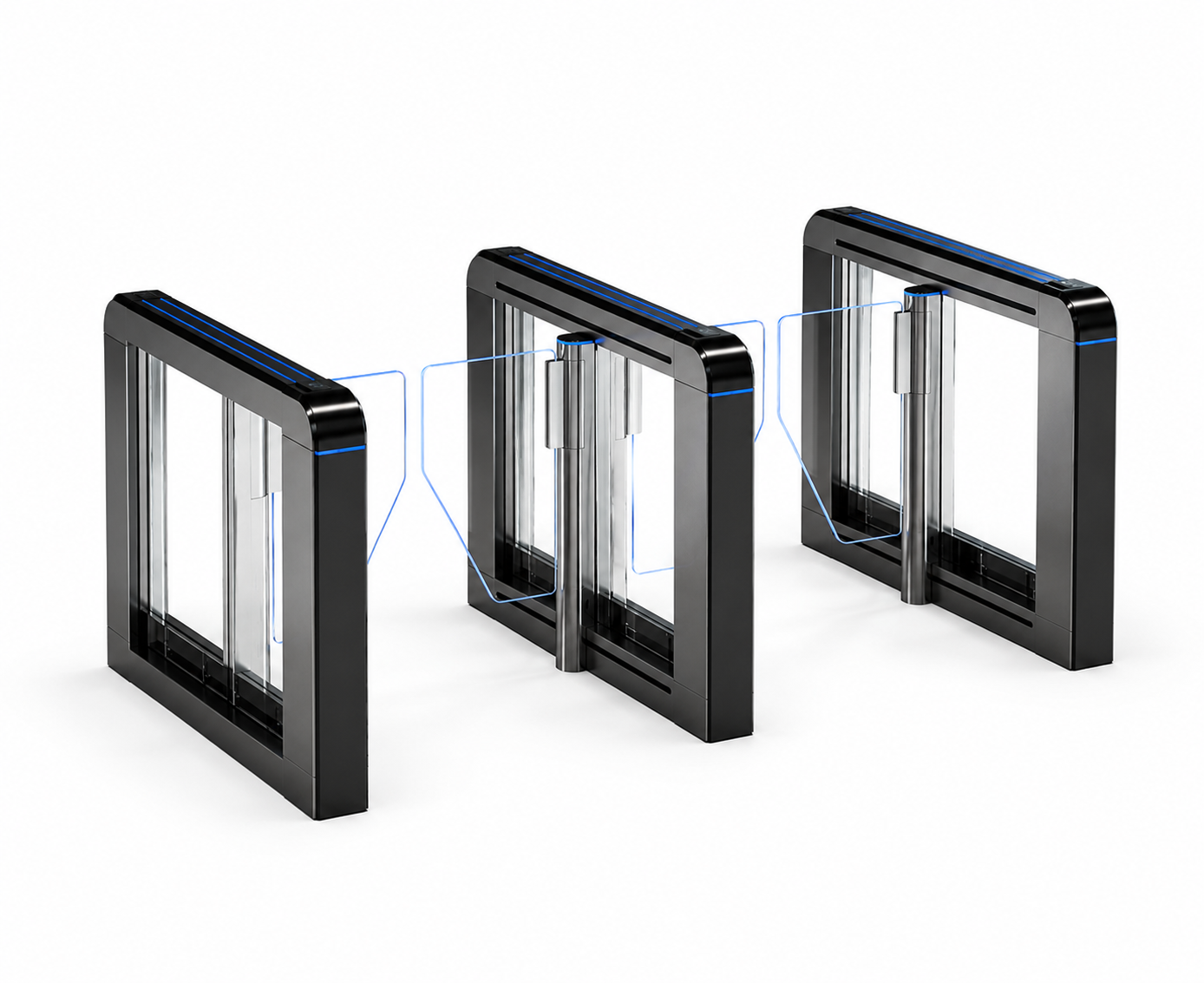

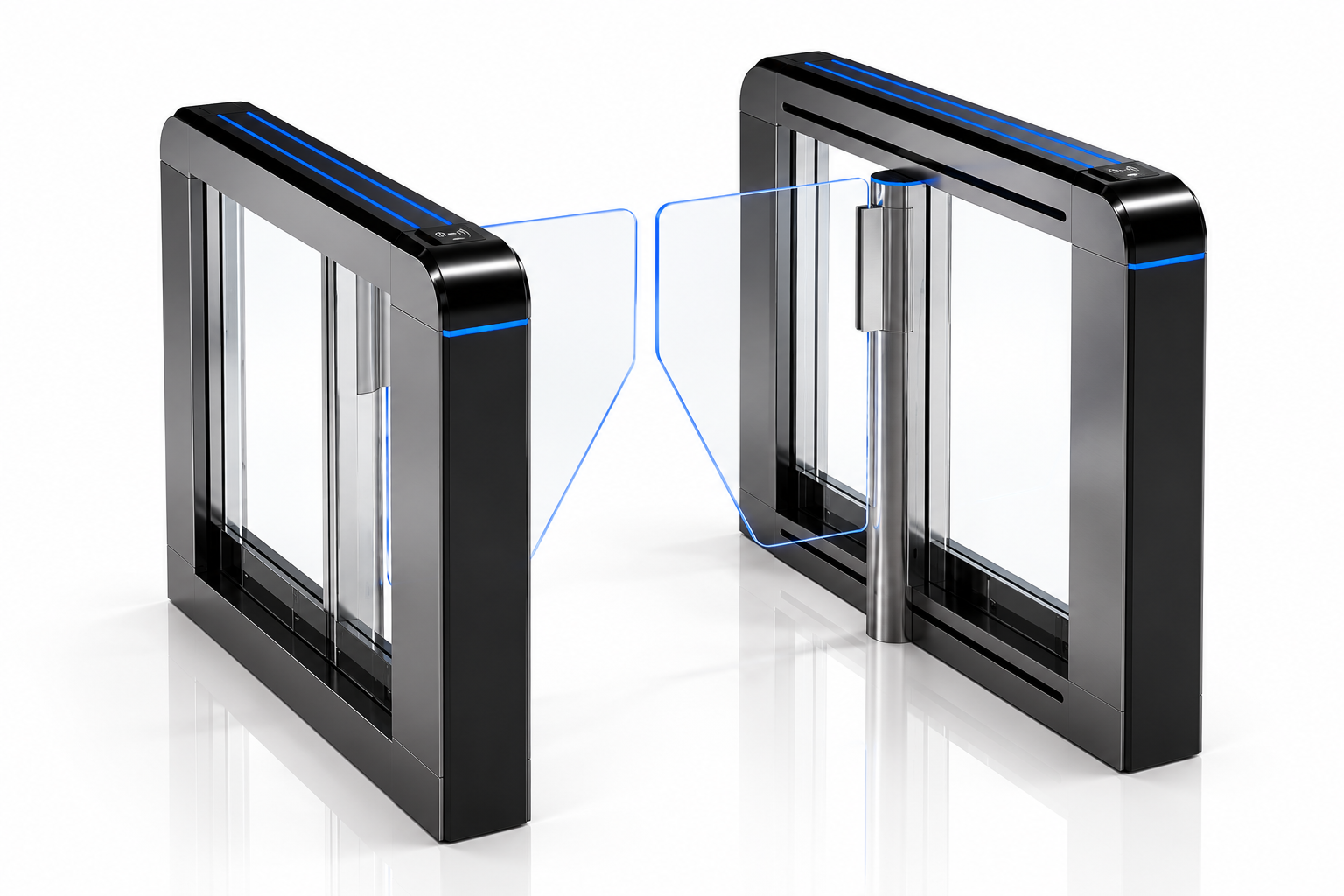

Speed Barrier Gate

TS-SG-700

Introduction

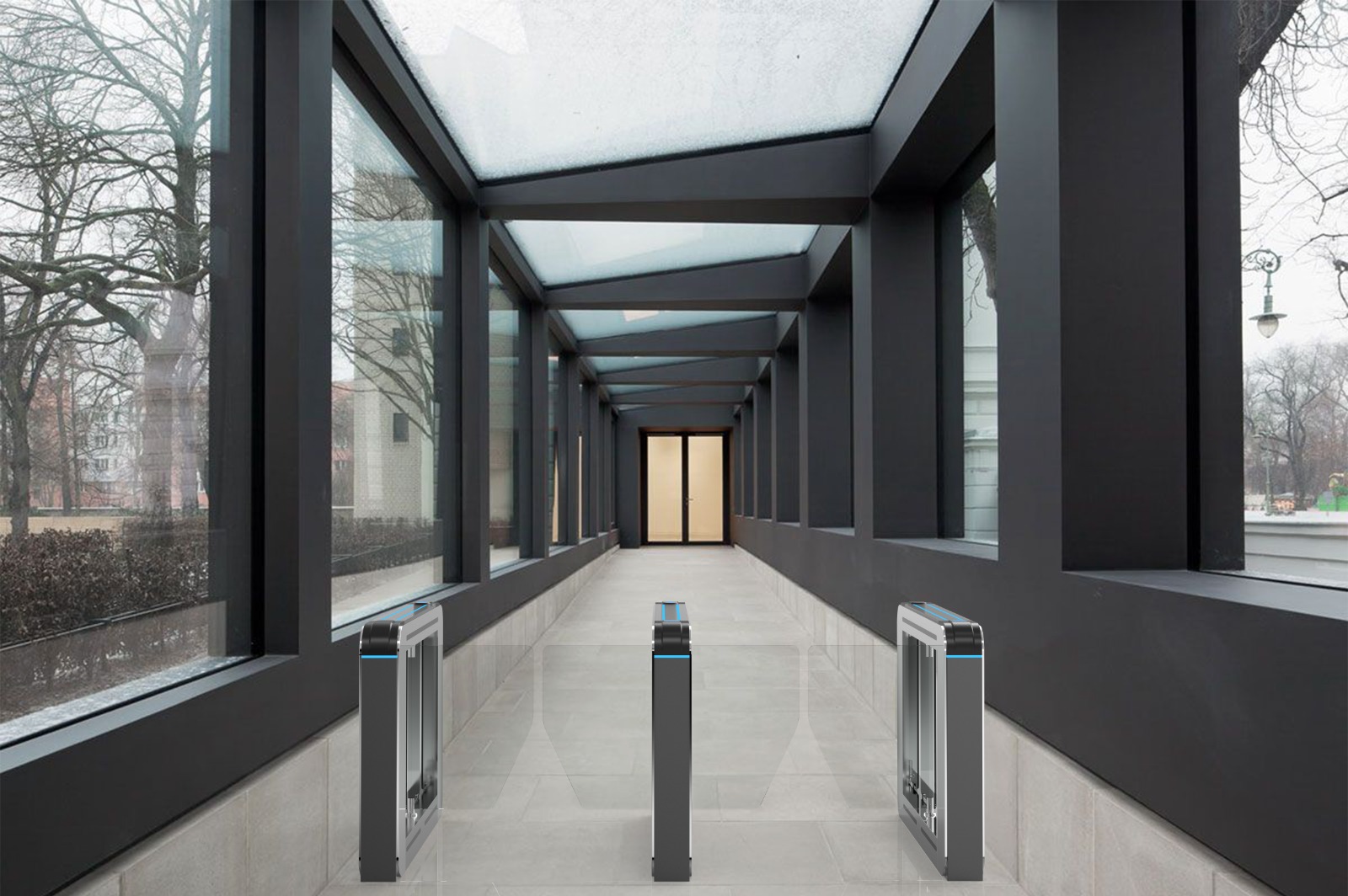

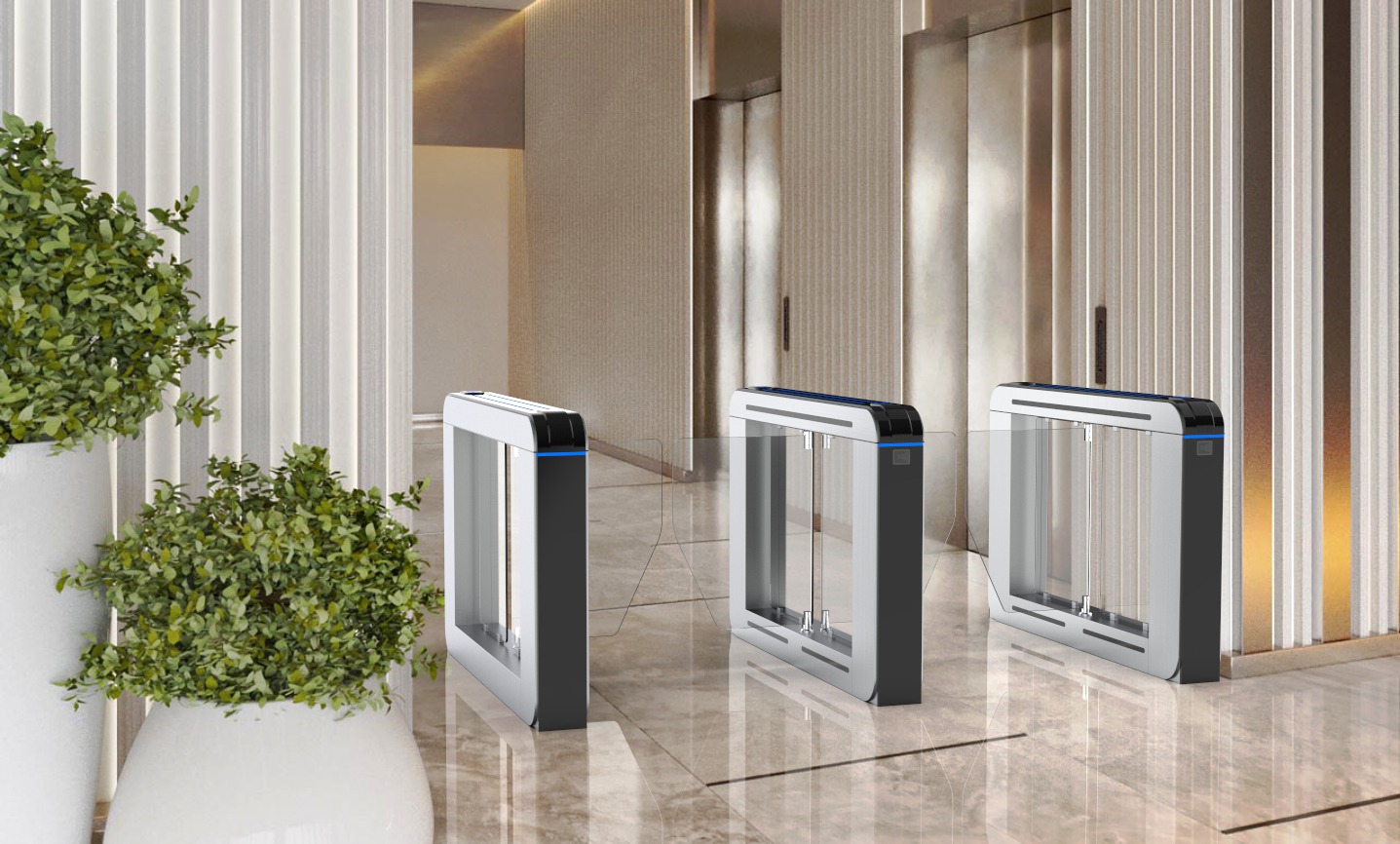

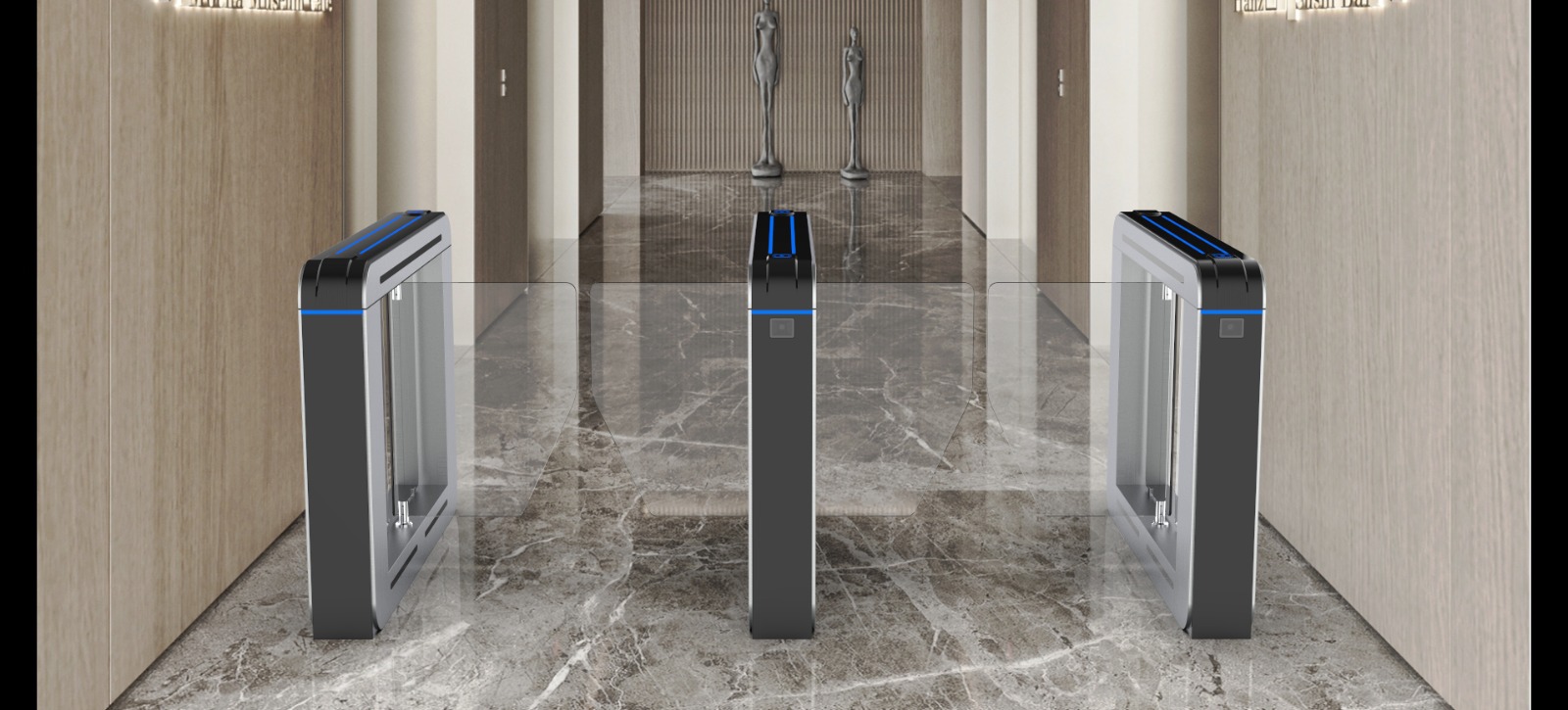

TECHNOSPACIO High Speed gate TS-SG-700 is a high end elegant speed gate series with patented appearance.it is designed to provide civilized and orderly access control management for pedestrians in high end sites,protecting physical security. for instance security desks,government facilities, schools,banks and hospitals, universities,sports and entertainment and student campus,it can prevent unauthorized persons access via multiple recognition modes,like RFID reader/QR code scanner/Facial terminal/Remote control/Token etc.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio

Reliability

Upgraded mechanism with smooth operation and durable performance. MCBF: 8 million cycles. Precise and responsive swing panel positioning. Self-developed mainboard with modular design and ARM control technology. Easier maintenance with reduced service requirements. One-year factory warranty.

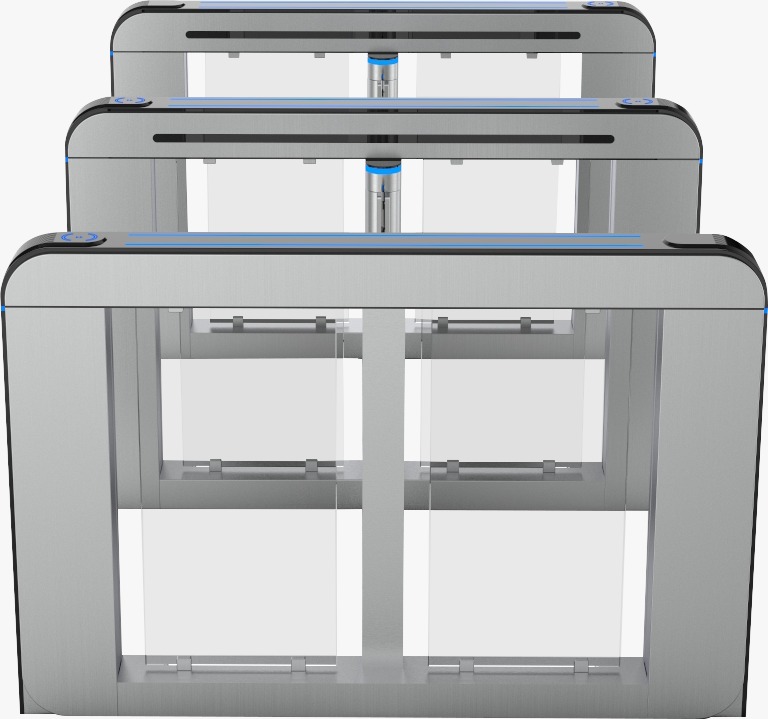

Swing & Side Panel Design

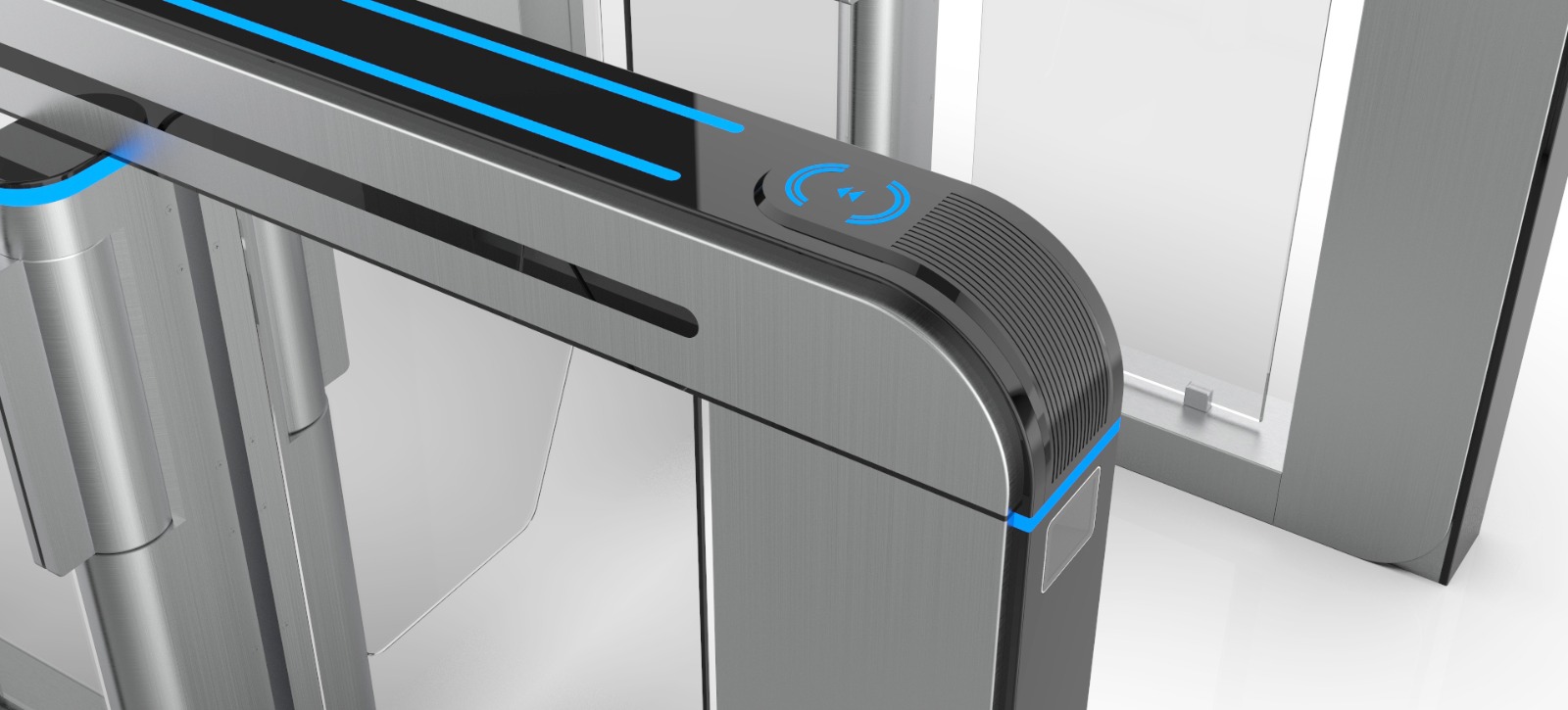

Artistic design to make gates stand out. Swing barrier length can be customized. Supports logo printing. Guest light + tri-color walkway indicator light to ensure a joyful and pleasant access experience. Specially designed case shape, user-friendly for passengers to swipe cards or use fingerprint authentication.

Easy Integration

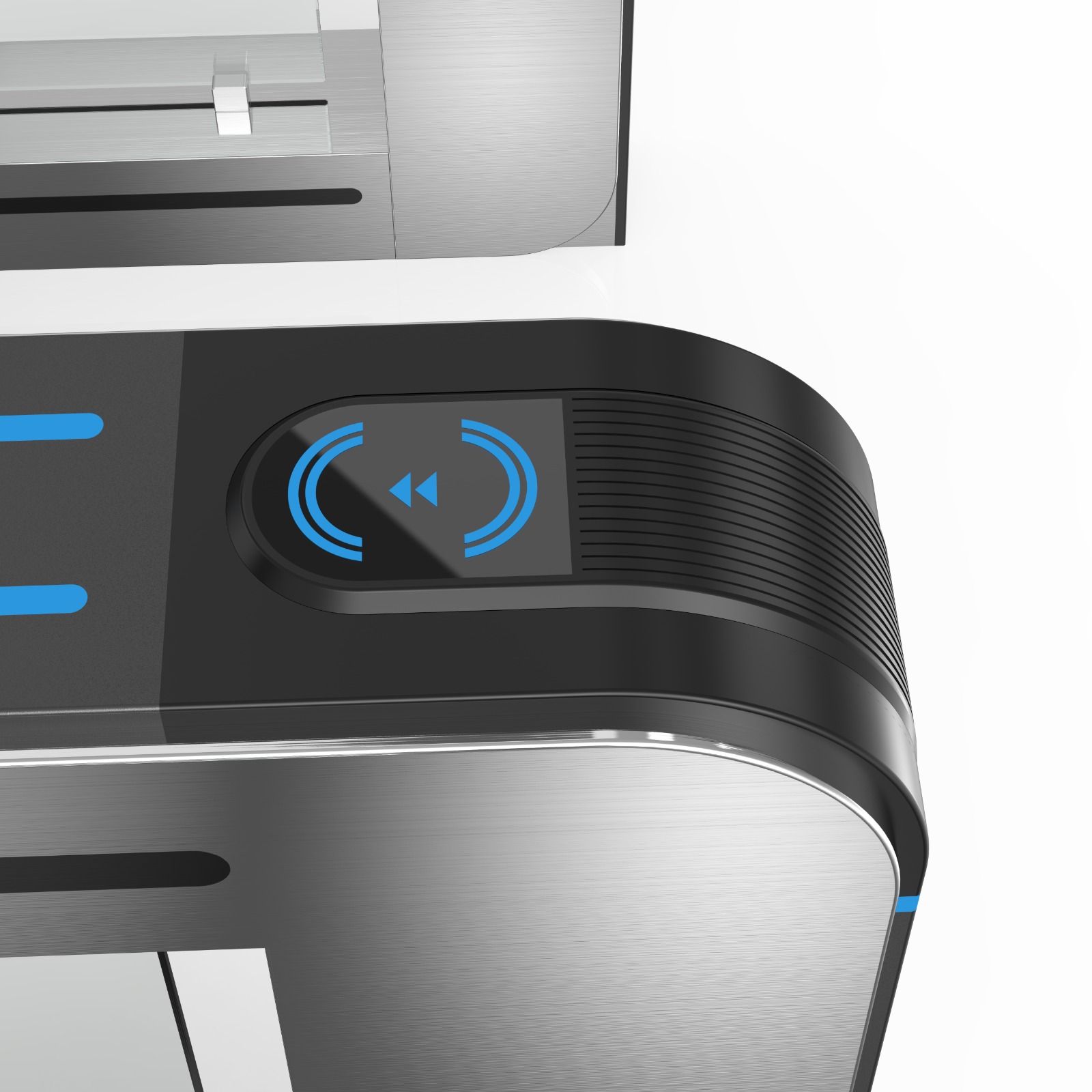

Flexible reader installation plate, Customers can easily integrate third-party readers. Standard electrical interface for third-party devices. By using a compact mechanism, the turnstile has more internal space for integration. Technospacio provides integration services at the factory, with boards and peripherals pre-installed to ensure full system compliance. When the turnstile is delivered, simply plug it in and configure the settings — saving installation costs.

Swipe Card

  • Access with authorized card and payment cards. Swipe to open the way

Iris Recognition

  • Use the authorized eyes of Iris Recognition to pass through the entry gates.

Fingerprint Recognition

  • Access with authorized fingerprint authentication.

Manual Operation

  • Manual use of wired and wireless to open gates for entry.

Coin/Ticket

  • Use disposable coins to coin through to enter.

Face Recognition

  • Use authorized face recognition to enter.

Vein Recognition

  • Use authorized palm vein recognition to pass into.

QR Code

  • Scan in with authorization QR code and barcode.
Brand name TECHNOSPACIO
Motor type DC Brushless motor
Cabinet Material Full body foot thickness 1.5mm SUS304
Passage width(mm) 600-900mm
Rated Power 60W
Flow rate 30-40 persons/minute
Passage direction Single directional/Bi-directional
Operating time 0.2 seconds
Power input AC100-240V,50/60HZ
Emergency signal Yes

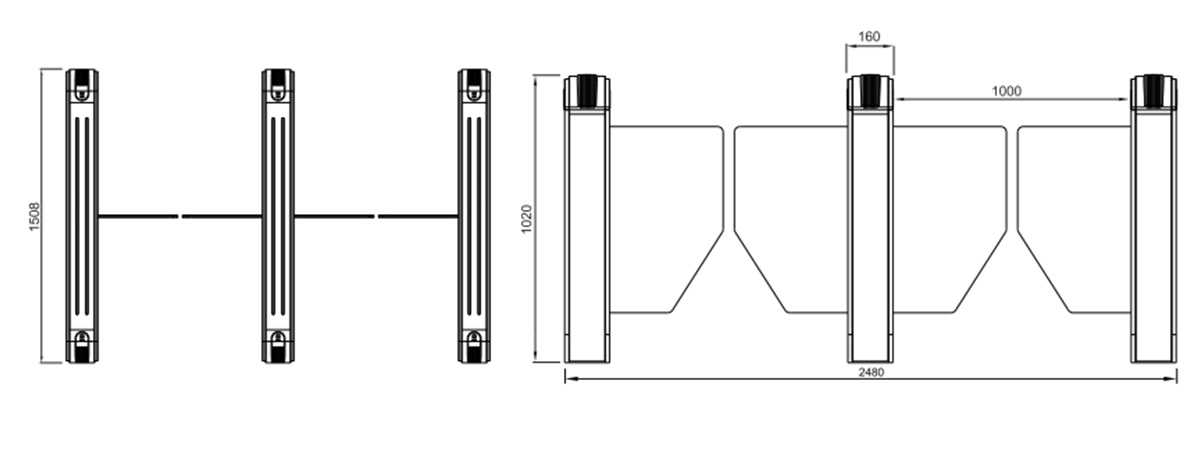

Dimension(mm) 1509*160*1019MM + swing panel 300-450MM
Working voltage 60volt
Working humidity 30%~95%
Working temperature -40℃~+70℃
Net Weight(kg) 75
Compatibility Compatible to all recognition methods available
Communication interface RS232/485
