TS-D-900ZONE
Introduction
TS-D-900ZONE is a state-of-the-art walk-through metal detector featuring a 7-inch HDMI LCD touch screen for easy operation, mobile app remote control, and advanced detection technology. With IP55 waterproof performance, self-calibration, and diagnostic features, it ensures high reliability and user convenience. The system supports adjustable sensitivity, multi-alarm sounds, and intelligent standby operation, making it ideal for high-security environments.
| Detection objects | knives, guns, coins |
| Passage Dimension | 2051x710x500mm |
| Packing Dimension | 1000x720x590mm |
| Working environment | -20 ºC~65 ºC |
| Input | AC 110V~240V/50Hz~60Hz |
| External Dimension | 2250x850x500mm |
| Fold Dimension | 889x606x484mm |
| Humidity | 99%, non-condensing |
| Weight | NW 48KG, GW 53KG |
| Output | DC 12V/5A 12W |
| Power supply | the whole system is equipped with polymer battery, life time 8,16,24,48,72 hours (optional). |

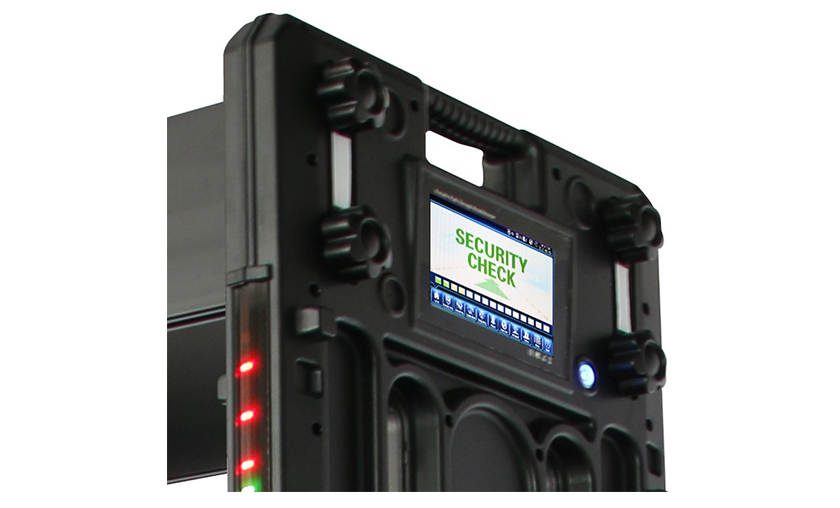

- Touch screen: 7-inch HDMI LCD touch screen, iPad interface style, easy to operate and understand.
- Mobile connection technology: realize mobile APP remote control
- IP Grade: IP55 superior waterproof performance (optional)
- Self calibration once power on
- Self diagnostic, it will inform the user when exit the system
- Start-stop technology: infrared devices with automatic start-stop technology
- Adjustable sensitivity of each detection zone
- Multi-alarm sounds to choose
- Operating frequency can be adjusted manually or automatically

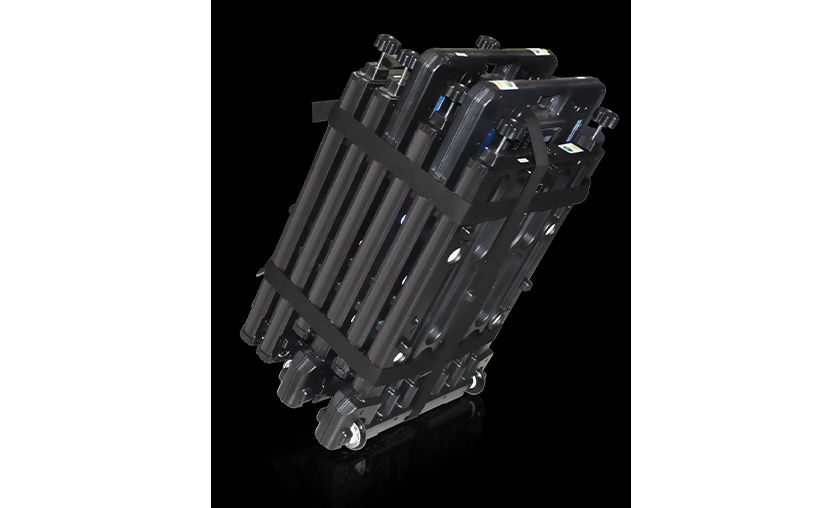

- Move after folded or installation (two move methods to choose)
- Detection technology: Even detection technology, no blind spot
- Internet technology: Remote upgrade system and remote control system
- Working band: 100 working bands
- Sensitivity of each detection zone: 255 level
- Statistics: Record the pass and alarm numbers
- Query function: The system has real-time information query function
- Intelligent Standby: The system has intelligent standby operation alerts
- Detection speed: more than 60 people pass and detect in 1 minute
- Multi-zone technology: 8,16,24 detection zones, can change detection zones intelligently (upgrade technology of each zone can be provided).
- Airports, railway stations, and bus terminals
- Government buildings and embassies
- Schools, colleges, and universities
- Factories and industrial sites
- Event venues and stadiums
- Hotels and commercial complexes
