Swing Barrier

TS-S-700

Introduction

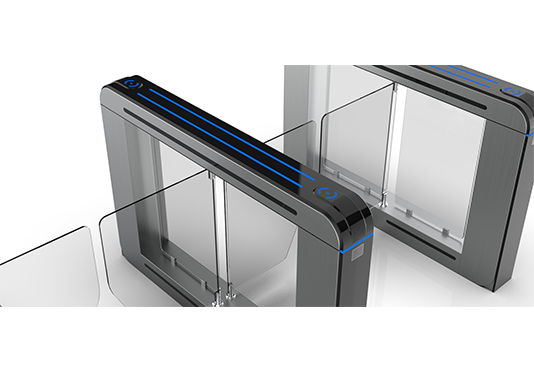

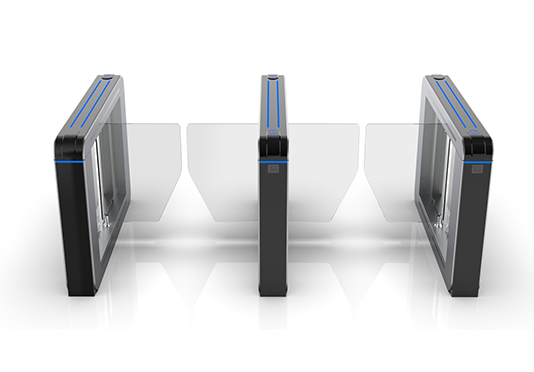

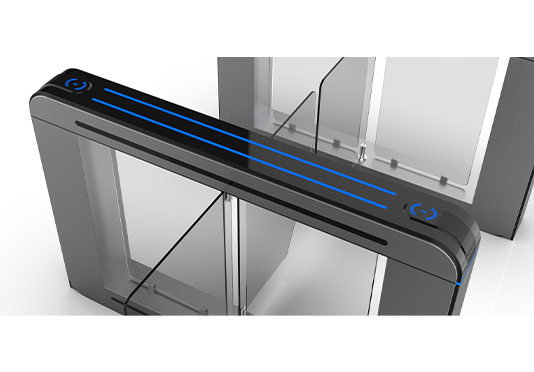

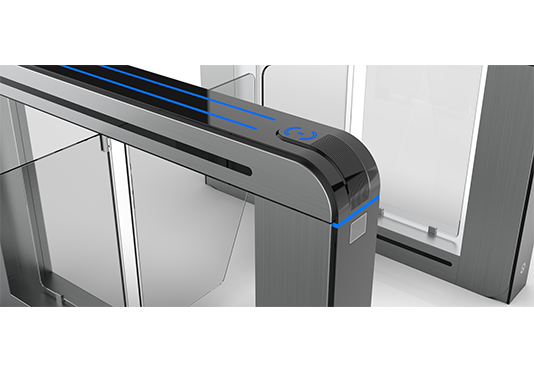

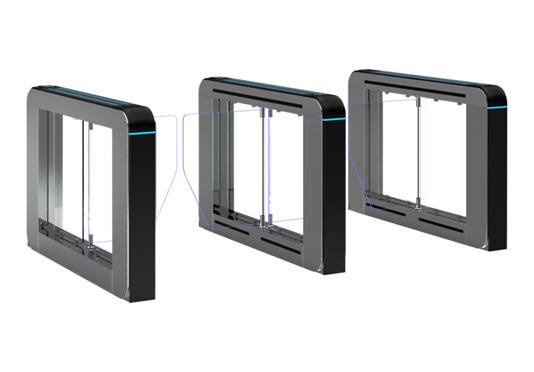

The TS-S-700 Swing gates are stylish waist-high security speed gates that operate on the swing open principle with glass (or plastic) panels acting as the barrier gate. Depending on which side of the Technospacio Swing Lane the person approaches, the gate when authorised, will swing open in the opposing direction allowing them passage through the controlled lane. The Technospacio Swing Lane has the ability to embed most manufacturers access control readers beneath its top glass cover, and with the intuitive LED user indication and guidance, this security speed gate encompasses safety with high traffic flow capacity. The Technospacio Swing Lane is offered with different dimensions of swinging gates, which enables lane widths of up to 1000mm.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio

Reliability

Alloy steel swing hub reduces wear. SUS 304 stainless steel casework & arms. Electromagnets activate only when in use. Patented compact mechanism preserves lubricating oil. High-quality electrical components ensure reliability.

Safety and User Orientated Design

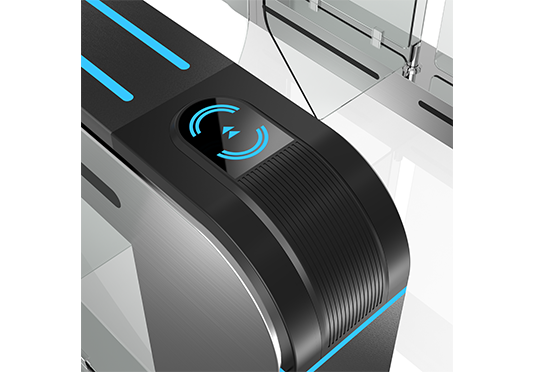

The arm designed for emergency purpose. No exposed screws, safer for the user. Smooth operation designed for mass transit application. The pictogram on the device indicating access permission and direction of movement. Special designed case shape, user-friendly for passenger to punch card or finger.

Easy Integration

Flexible reader installation plate, Customers can easily integrate third-party readers. Standard electrical interface for third-party devices. By using a compact mechanism, the turnstile has more internal space for integration. Technospacio provides integration services at the factory, with boards and peripherals pre-installed to ensure full system compliance. When the turnstile is delivered, simply plug it in and configure the settings — saving installation costs.

Swipe Card

  • Access with authorized card and payment cards. Swipe to open the way

Iris Recognition

  • Use the authorized eyes of Iris Recognition to pass through the entry gates.

Fingerprint Recognition

  • Access with authorized fingerprint authentication.

Manual Operation

  • Manual use of wired and wireless to open gates for entry.

Coin/Ticket

  • Use disposable coins to coin through to enter.

Face Recognition

  • Use authorized face recognition to enter.

Vein Recognition

  • Use authorized palm vein recognition to pass into.

QR Code

  • Scan in with authorization QR code and barcode.
Brand name TECHNOSPACIO
Motor type DC brushless motor
Flow rate 40-50people/minute
Passage width(mm) ≤1000
Rated Power 50W
Cabint material SUS 304;1.5mm top lid/1.2mm side
Infared sensor 8 pairs
Input/Output signal dry contact/relay signal

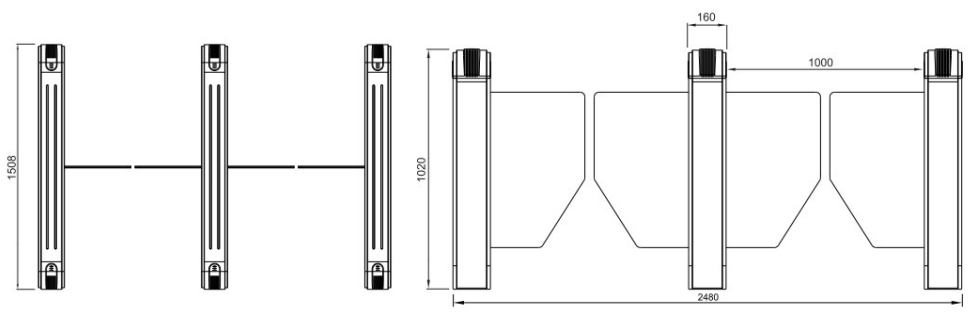

Dimension 1508*160*1019mm
Net Weight 55kgs
Gross weight 57KG
IPF IP55
Operating Temperature -10 °C- 60 °C
Operating Humidity 5%-85%
Indoor/Outdoor covered Yes
Voice prompt Yes
