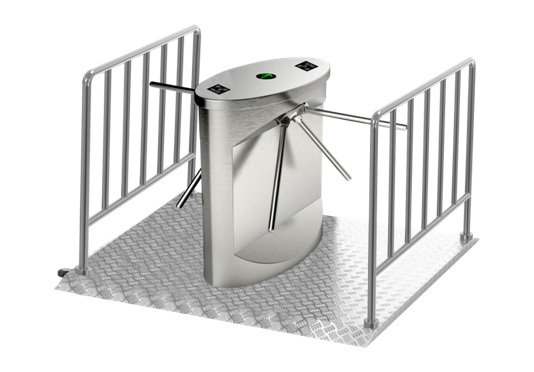

TS-T-650 Dual core Tripod turnstiles are compact and cost-effective entrance
solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is
suitable for areas with a high traffic .The vertical stainless steel compact version,offer high operating
reliability in a small casework, ideal for sites where space is an issue. By receiving a signal from the
access control system, or pushing button, it allows the entry of one person in a time. Entering into
different directions are electronically controlled. Default mode is to lock the mechanism until a valid
authorization signal is received. IIf you want to set one side free, you can adjust the mechanism. In case
of emergency, the horizontal arm will drop to allow free passage.
Power Supply
AC 220V/110V, 50/60Hz
Operating Temperature
-28 °C- 80 °C
Operating Humidity
5%-85%
Working Environment
Indoor / Outdoor both, IP54 Standard
Rated Power
60W
Flow Rate
25- 48 passage/minute
Casework Material
SUS304 (SUS 316 for option)
Mechanism
Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless
motor for option)
Control System
Dry contact
Emergency Alarm function
Yes
Dimension
1200*500*980MM + arm length 500MM
Net Weight
80kgs（turnstile weight) + 50kgs (fence & portable stand )
Material Thickness
1.5mm for turnstile and fence , 2.0mm for stand SS201
MCBF
Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles
Warranty
2 years
Swipe Card
Access with authorized card and payment cards.
Swipe to open the way.
Iris Recognition
Use the authorized eyes of Iris Recognition to pass through the entry gates.
Fingerprint Recognition
Access with authorized fingerprint authentication.
Manual Operation
Manual use of wired and wireless to open gates for entry.
Coin/Ticket
Use disposable coins to coin through to enter.
Face Recognition
Use authorized face recognition to enter.
Vein Recognition
Use authorized palm vein recognition to pass into.
QR Code
Scan in with authorization QR code and barcode.
Safety and User Orientated Design
Drop arm designed for emergency purpose
No exposed screws, safer for the user
Smooth operation designed for mass transit application
The pictogram on the device indicating access permission and direction of movement
Special designed case shape, user-friendly for passenger to punch card or finger
Anti-tailgate
Durable and robust design for long-term use
Low maintenance requirements
Reliability
Alloy steel flap hub prevents mechanical wear
Casework and flap arms manufactured in SUS 304 stainless steel
Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle
Technospacio compact mechanism ensures the long life of the lubricating oil inside
High quality electrical components
Easy Integration
Flexible reader installation plate. Customers can easily integrate with third party readers
Standard electrical interface for third party device
By using compact mechanism, the turnstile has more space inside for integration
Technospacio provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation
