Mobile Under Vehicle Surveillance System
  • Automatic digital line scan camera,with high-resolution and clarity of the image .
  • The complete image of under vehicle scanning,without any omissions, and the image is clear,complete,no distortion,can be clearly observed that the object is not less than 2mm in diameter.
  • Preparation of inspection processes to meet a variety of on-site needs .
  • Multiple scene image monitoring,recording function.
  • Multi-language user interface design.
  • Strong scalability to easily achieve a variety of system linkage control.
  • ALPR(Automatic Licence Plate Recognition)
Technical parameters
Scan Mode: Full Auto 5000*2048 pixels
Effective Field of View(FOV) less than 170°
Auxiliary Light 100W
Weight Capacity < 20T
Check The Width Viewing Angle < 4 meters
Water-proof Grade lp68
Scanning Device Weight 24KG
Scanning Device Volume 450mmx400mmx88mm
Speed Of Vehicle
  • < 30km/h with ALPR(Automatic Licence Plate Recognition)
  • < 70km/h without ALPR(Automatic Licence Plate Recoqnition)

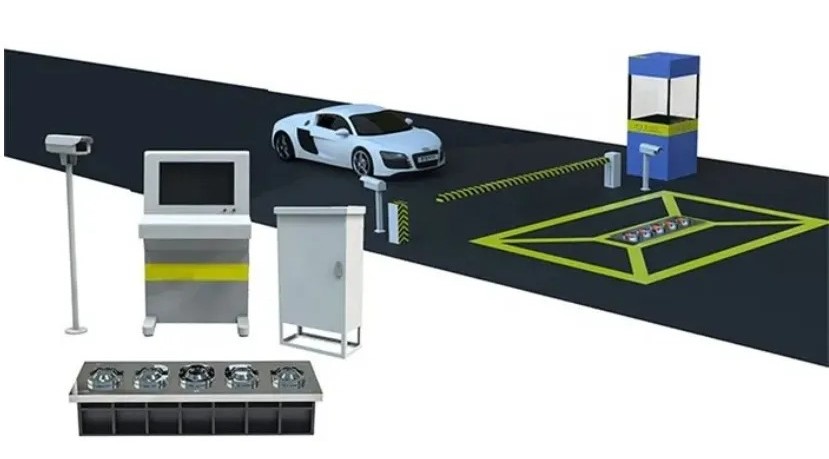

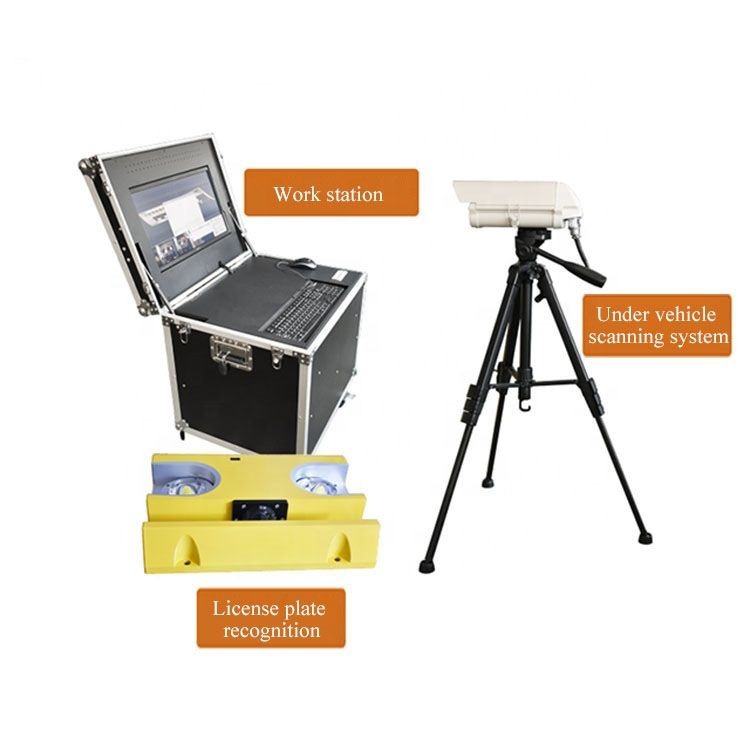

Main Component

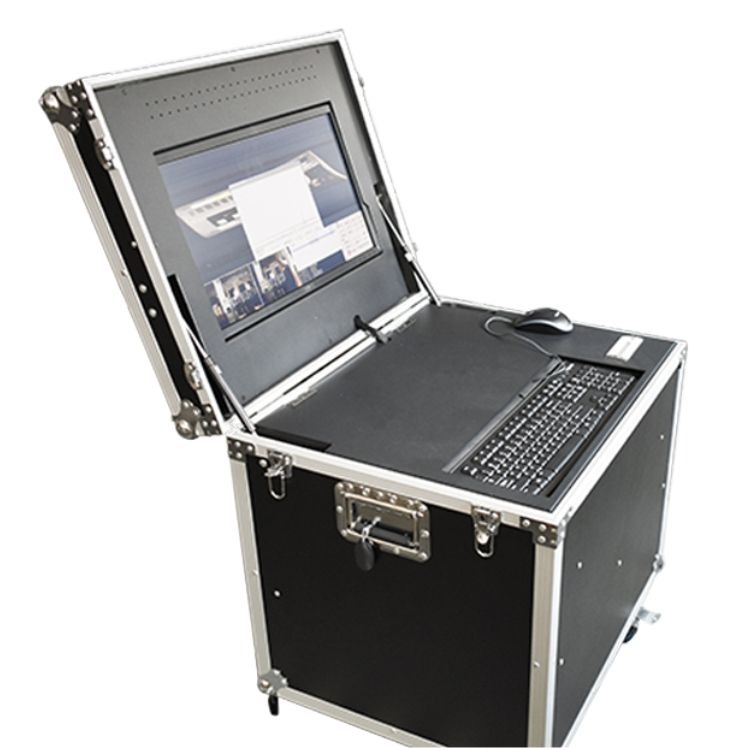

Operation Case

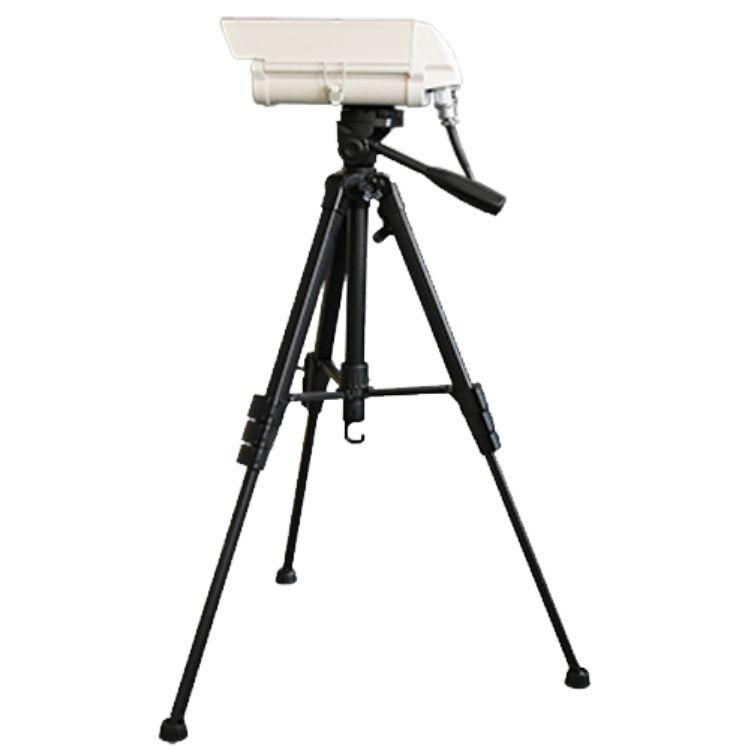

License Plate Capture Camera

Speed Limited

1 Infrared Sensors
2 LED Light
3 CCD Linear Array Scanning Carema
