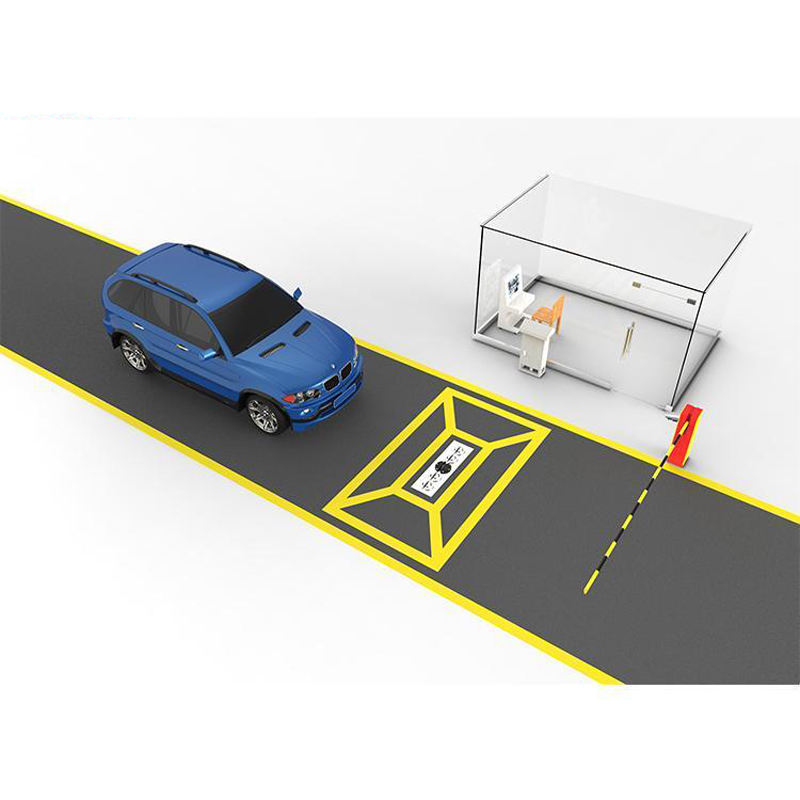

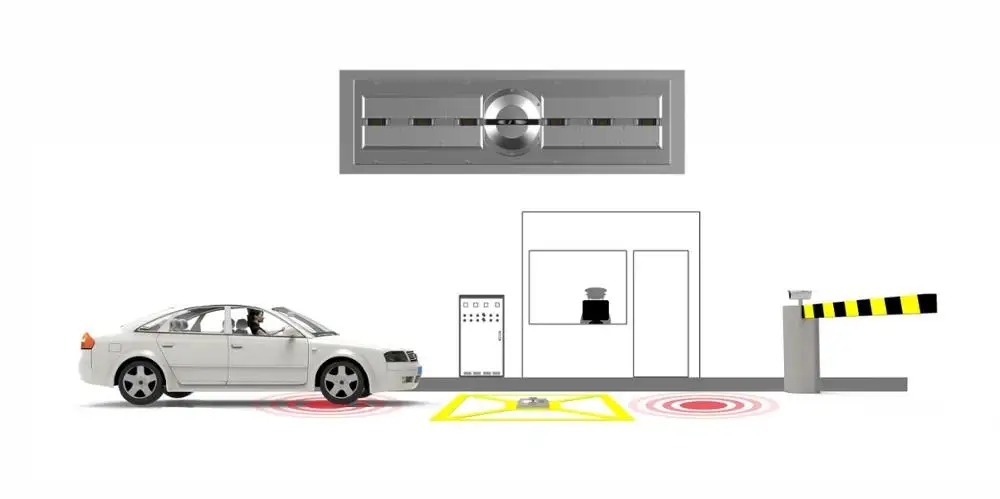

Fixed Under Vehicle Surveillance System

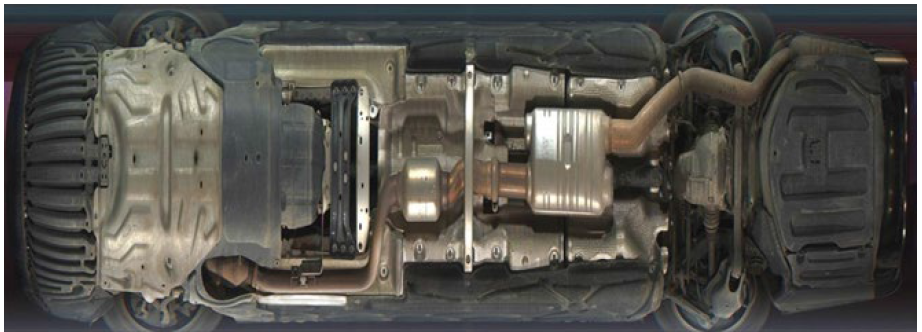

  • Auto digital line scan,high-resolution undercarriage imaging
  • High automation. easy to be used
  • Applicable to variety of vehicles,wide vision.
  • Test will be completed during the vehicle maneuvers without stopping,adapted to different speed.
  • Undercarriage image can be stored,retrieved,searched or compared with other images.
  • Variety of image processing methods:enlarge,stretching and cutting.
  • Automatic License Plate Recognition and RFiD technology.associative storage of various vehicle information and undercarriage images.
Technical parameters
Camera:Line Scans CCD,Resolution 5000*2048 pixels
Power Supply 24VDC,3A

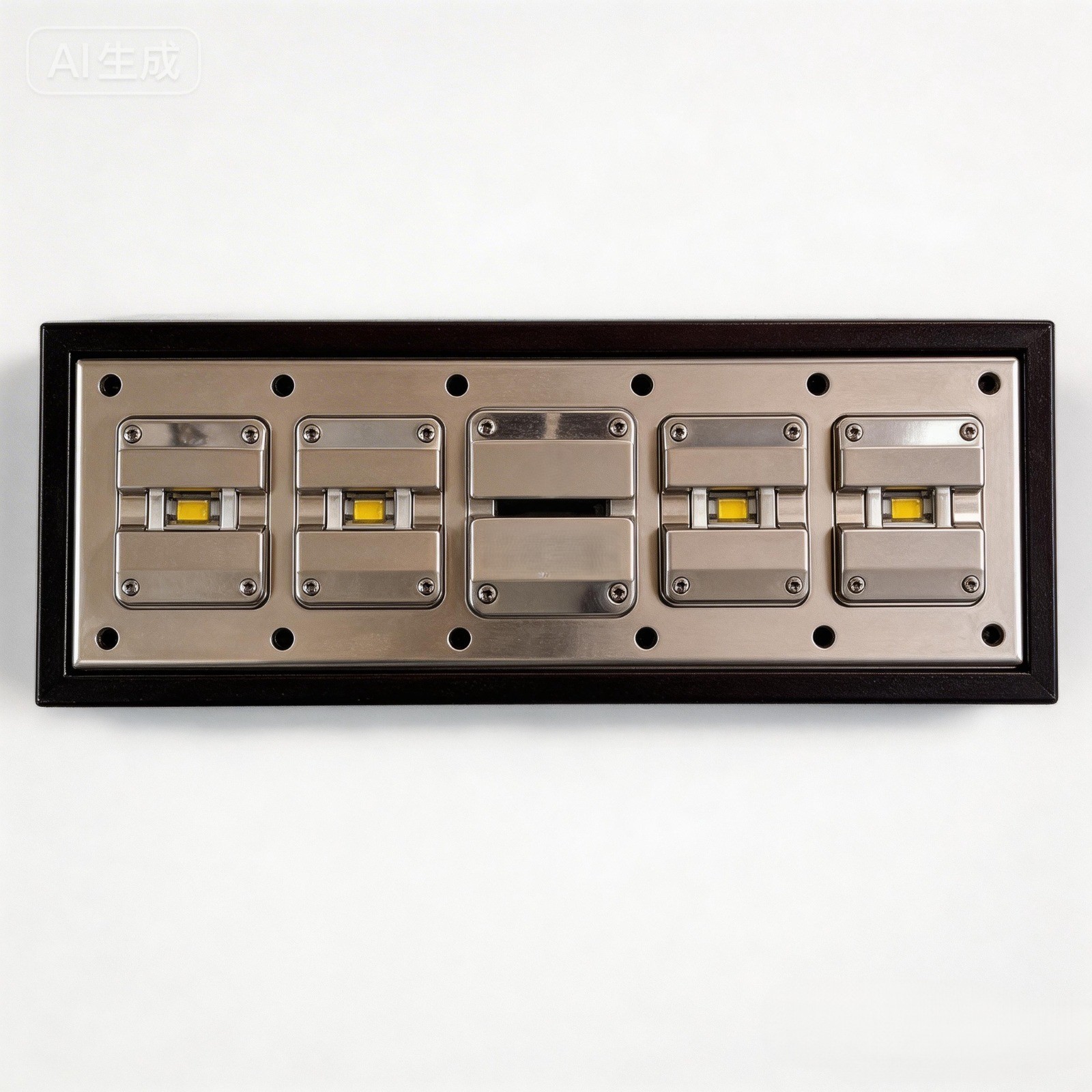

lllumination:LED, Power Supply 24VDC,120W

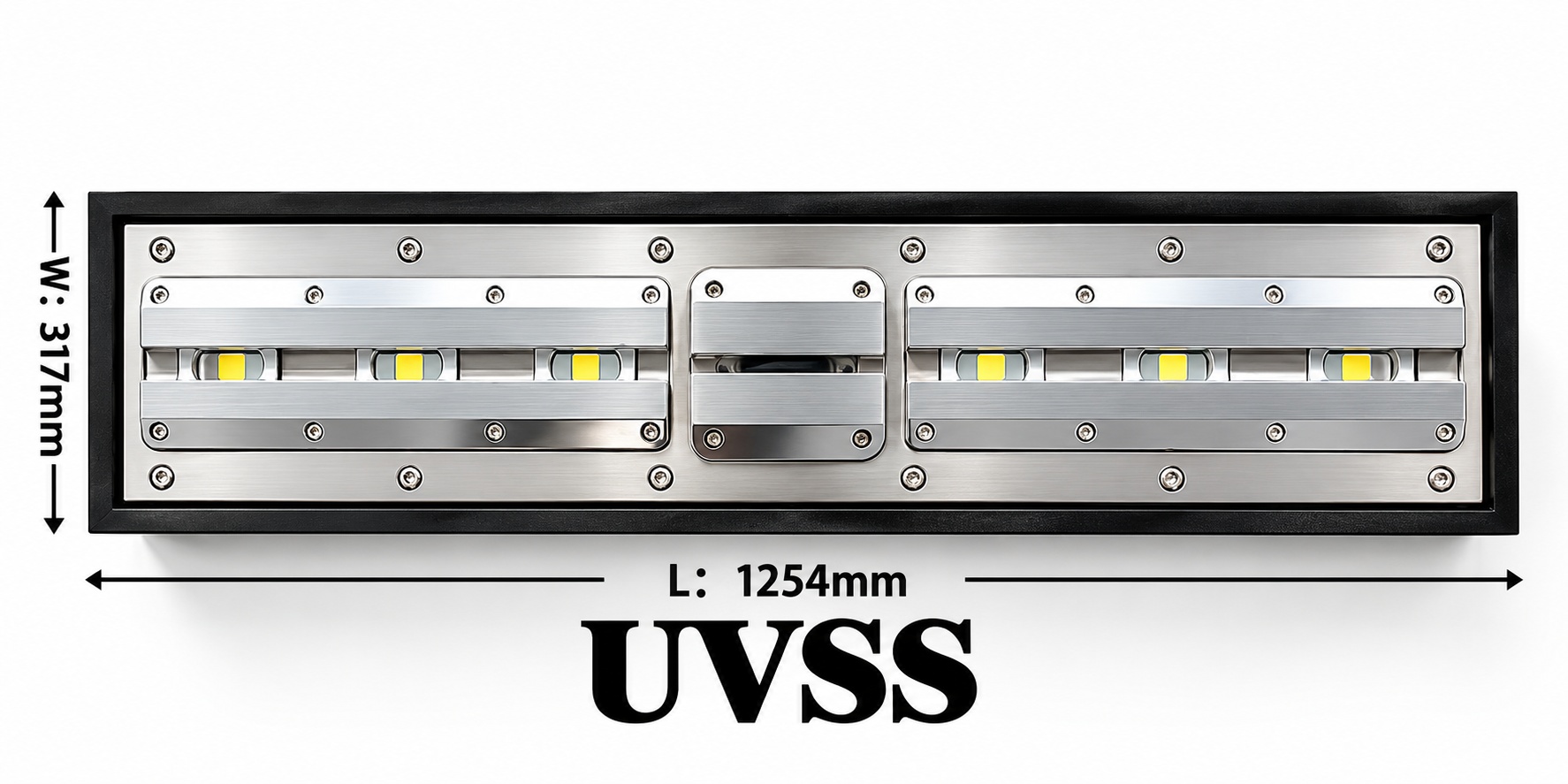

Size 1200mmx350mmx300mm
Operating Temperature Range -20 degree to +60 degree
Input 2 channels induction coil
Output 1Channel switch type 12VDC
Communication Port 24VDC,120W
Size RS485,Ethenet(Optional)
Operating Temperature -10℃to 55℃

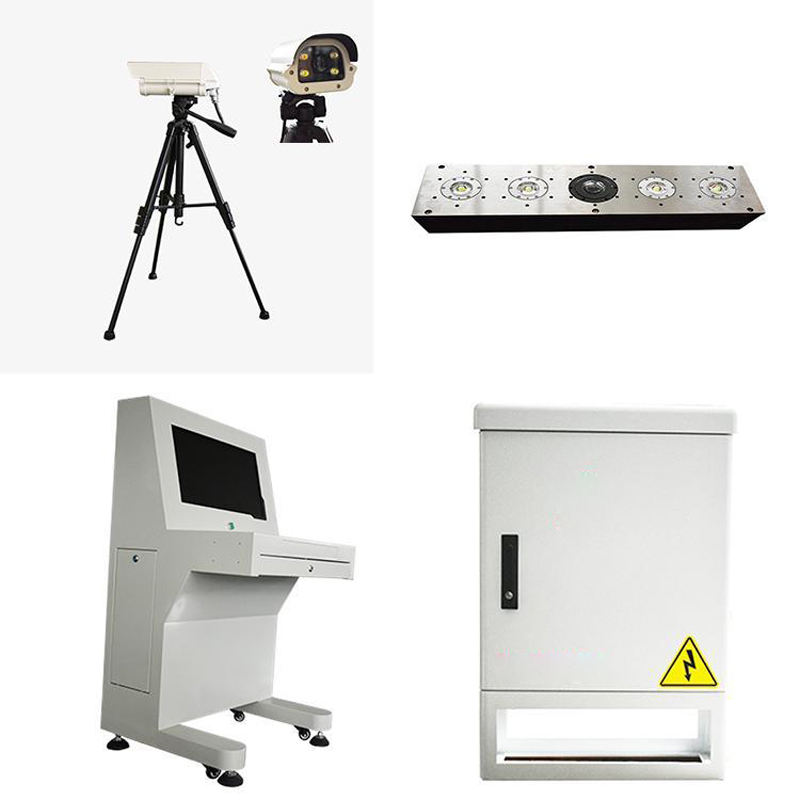

Main Component

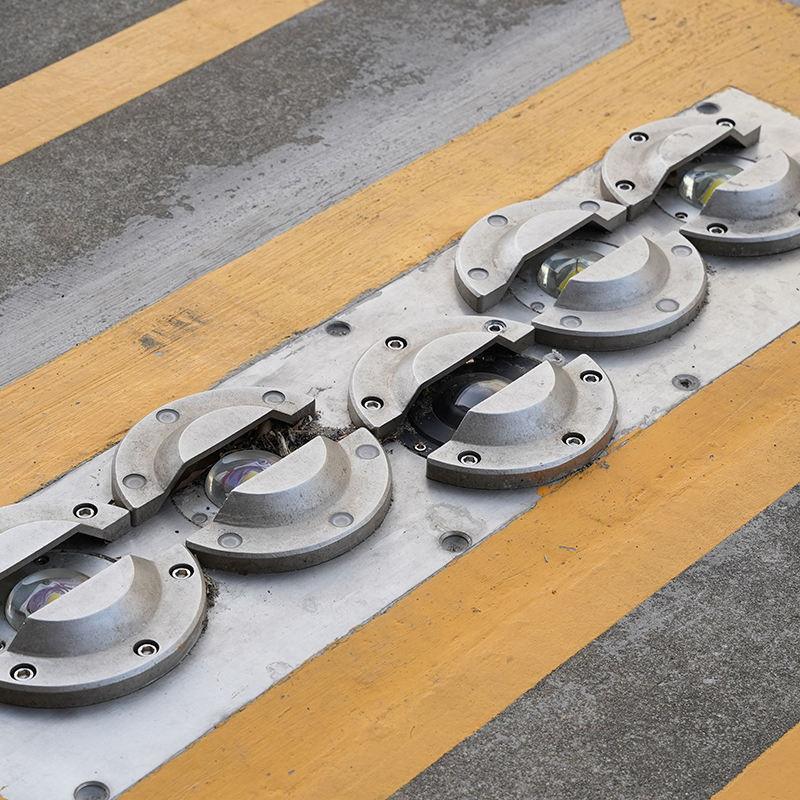

Car Scanner

License Plate Capture Camera

Distribution Box

Speed Limited

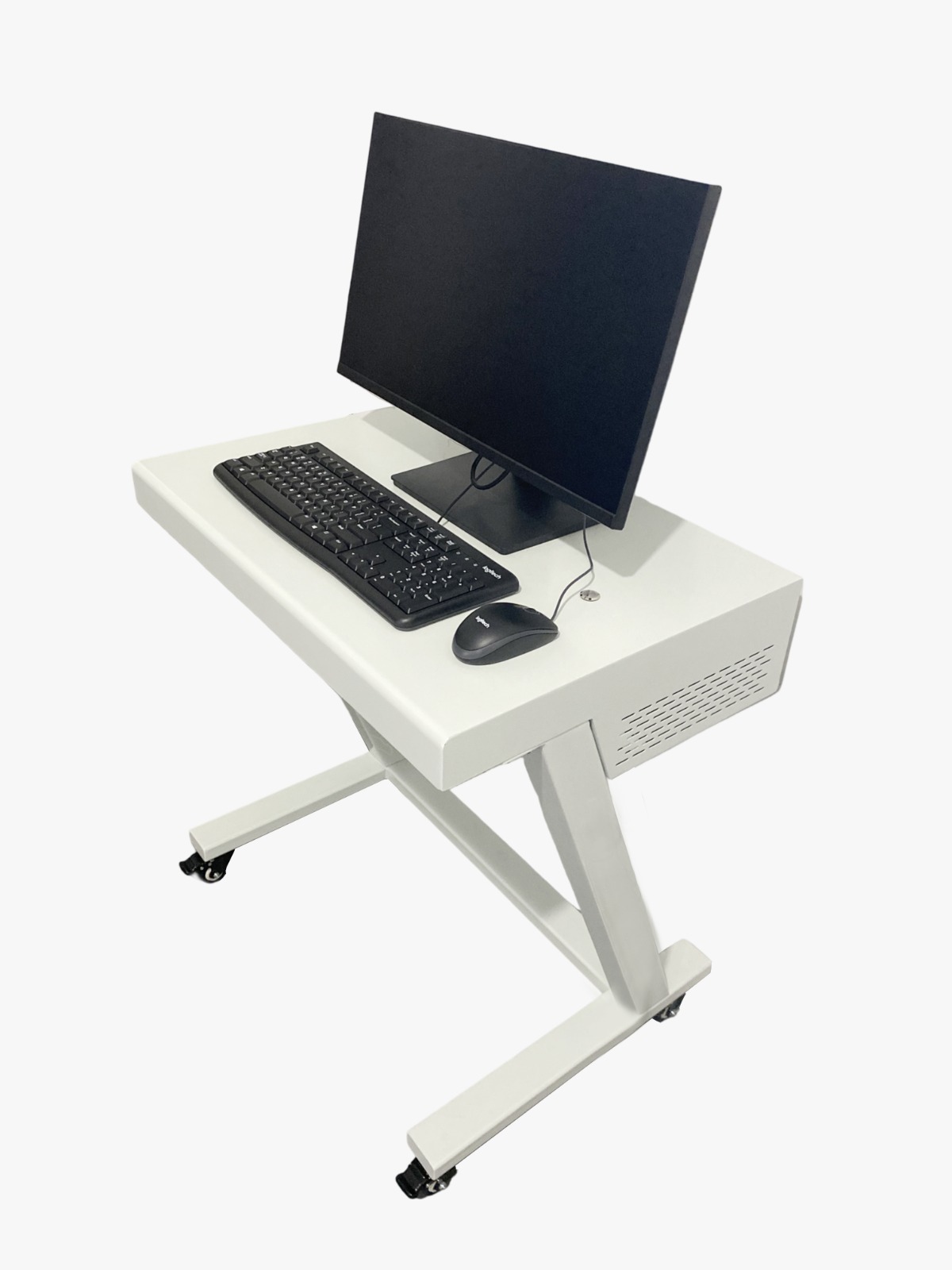

1 Operation Floor
2 Digital Video Recorder Position
3 Display(24 inch)
5 Staring Switch
