Rising Bollard


Product Descriptions

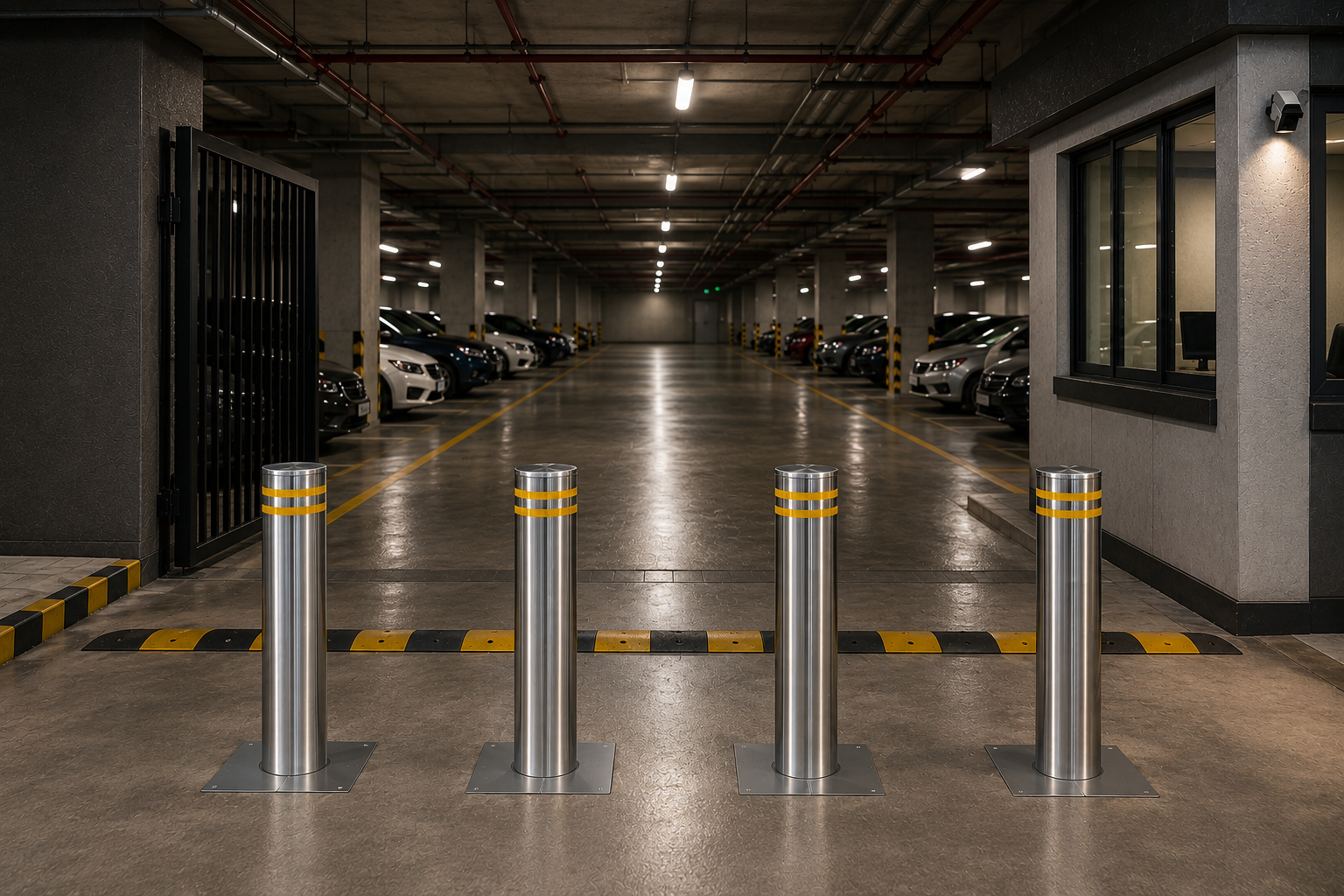

The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.

The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting. The rising bollards can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements).

  • The structure is sturdy and durable, with large load carrying capacity, stable operation and low noise.
  • Adopt PLC control, the system running performance is stable and reliable, and easy to integrate.
  • In the case of power failure or when there is a fault, the vehicle can be manually operated.
  • Adopting international leading low pressure hydraulic drive technology, the whole system is safe, reliable and stable.
  • Remote control device: lift by wireless remote control.
  • swipe control: add a card reader, swipe the card automatically control the lift.
  • Linkage between the gate and the lifting column: plus control to realize the linkage of the gate, and the access control and the lifting column.
  • It is controlled by the computer in conjunction with the computer buried system or the charging system.
  • LED flashing function, flashing warning during the movement of the column, and warning at night.
  • Sound alarm intermittent alarm sound.
Product Name Electric automatic bollard
Control System Electric-hydraulic operated
Maximum Weight Of Passing Cars ≤8 T
Power Supply 220 V (control voltage: 24V)
System Power 1.5kW / 2.2kW
Rising Time ≤ 4 s (adjustable)
Dropping Time ≤ 2 s (adjustable)
Working Temperature -35°C ~75°C
Material #304 stainless steel
The Diameter Of The Pillar 219mm (168mm, 275mm, 324mm are also available)
The Thickness Of Housing 6mm(8mm, 10 mm are also available)
