Sliding Turnstile


TECHNOSPACIO sliding speed gates provide aesthetic and effective control of entry or exit at kinds of toll collection systems like train/metro stations, and access control for commercial centers, stadiums, schools, government and private sector buildings etc.

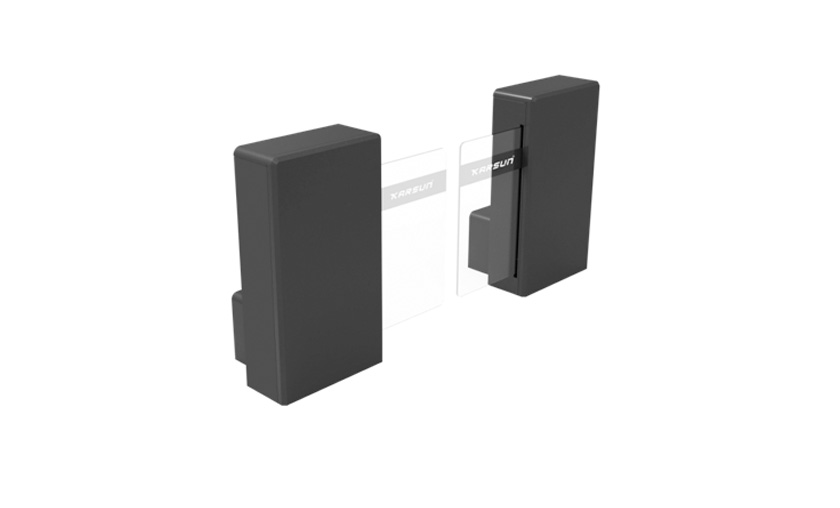

This waist height sliding turnstile TS-WGS-200 features for it’s unique appearance, with half height and compact design,it enjoys high popularity in business center and governmental edifices.Can be widely integrated with various recognition methods available.

Technical Specification
Motor type DC brushless motor
Passage width(mm) 650mm
Rated Power 80W
Cabinet Material SUS 304;1.2mm side /1.5mm top lid
Infared sensor 4 pairs
Door height(mm) 800
Input/Output signal dry contact/relay signal
Flow rate dry contact/relay signal

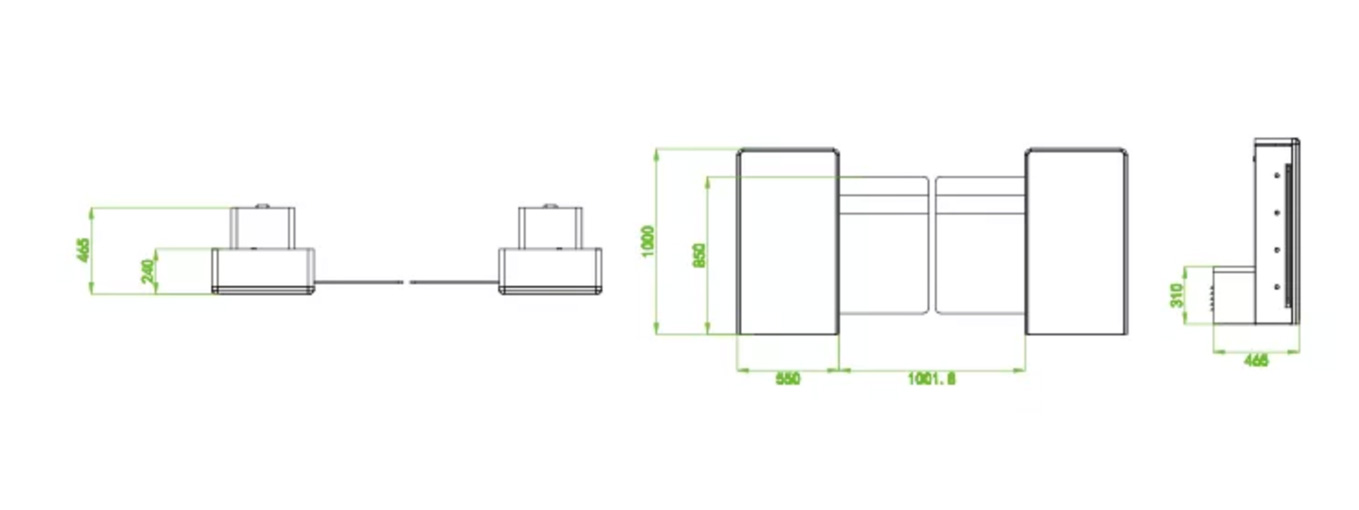

Dimension(mm) 550*465*1000mm
IR sensor(pair) 6 (defaulted)
IR sensor(pair) 6 (defaulted)
Net Weight(kg) 55
Gross weight 58KG
Operating Temperature -10 °C- 60 °C
Operating Humidity 5%-85%
Working Environment Indoor/Outdoor covered
Voice prompt Yes
