TS-WGS-400
Introduction

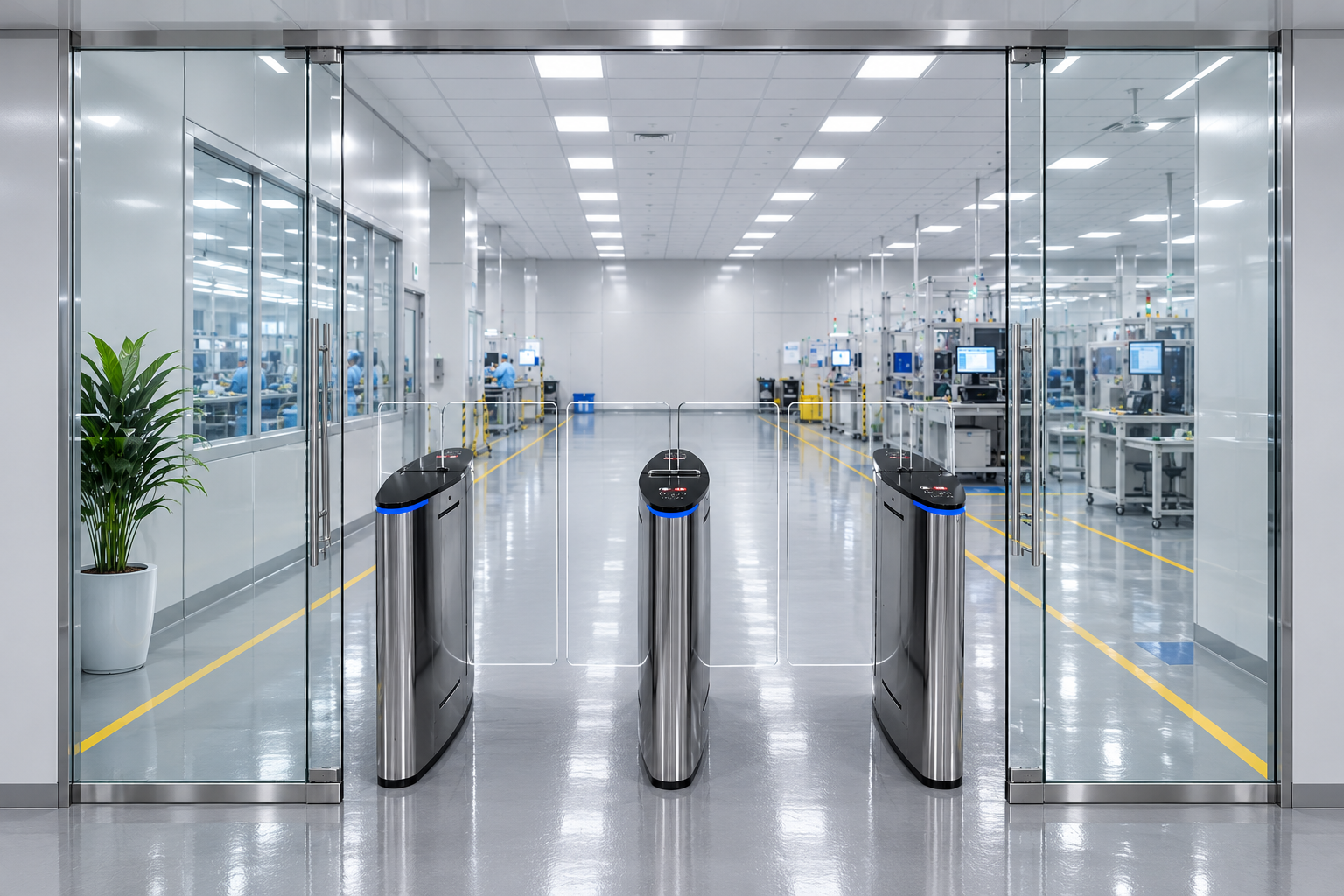

TECHNOSPACIO sliding speed gates provide aesthetic and effective control of entry or exit at kinds of toll collection systems like train/metro stations, and access control for commercial centers, stadiums, schools, government and private sector buildings etc.

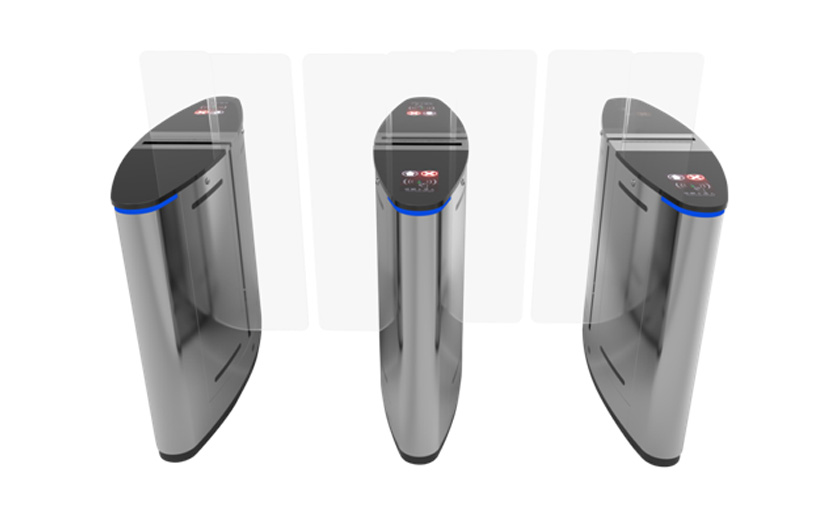

TS-WGS-400 deluxe oval shape sliding speed gates are compact and cost-effective entrance solutions. Designed for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic volume. These turnstiles are highly integrated to be compatible with face recognition, fingerprints access control, QR system, RFID, etc., and are ideal for heavy traffic sites like subway systems, providing a means to count pedestrians entering a facility.
Appearance
Premium, high-end design. Main body and side covers made of AISI 304-grade stainless steel. Top lid constructed from black acrylic panel. Flap panel made of 10mm thick acrylic or tempered glass. Equipped with 6 pairs of IR sensors (customizable upon request).
Drive Technology
Brushless servo motor ensures longer lifespan with smooth and durable operation. Self-developed mainboard with ARM-based control technology. Equipped with well-known, reliable brand electrical components.
Safety and User-Orientated Design
Available with 1.2m / 1.5m / 1.8m high retractable glass doors for strict access control. Precision-engineered and durable mechanisms suitable for high-traffic applications. User-friendly indicator lights and voice prompts for enhanced guidance. Anti-following protection. Anti-climbing and anti-crawling features. Anti-panic function for emergency situations. Anti-pinch design for user safety.
Easy Integration
Default configuration includes a card swiping window covered with a black acrylic panel. Broad compatibility with various access recognition methods. Communication interface: Relay signal. Standard electrical interface available for integration with third-party devices. TECHNOSPACIO provides not only turnstile systems but also complete solutions tailored to our customers’ needs — including online/offline ticketing, attendance management, visitor management, EU Green Pass integration, and more.
Swipe Card
- Access with authorized card and payment cards. Swipe to open the way
Iris Recognition
- Use the authorized eyes of Iris Recognition to pass through the entry gates.
Fingerprint Recognition
- Access with authorized fingerprint authentication.
Manual Operation
- Manual use of wired and wireless to open gates for entry.
Coin/Ticket
- Use disposable coins to coin through to enter.
Face Recognition
- Use authorized face recognition to enter.
Vein Recognition
- Use authorized palm vein recognition to pass into.
QR Code
- Scan in with authorization QR code and barcode.
| Brand name | TECHNOSPACIO |
| Mechanism part | Connecting rod structure |
| Motor type | DC brushless motor/Servo motor |
| Flow rate | 30-40 people/minute |
| Passage width(mm) | 650-900mm |
| Rated Power | 80W |
| Cabinet Material | SUS 304/316; 1.5mm thickness |
| Infrared sensor | 6 pairs |
| Glass panel height(mm) | 800-1500mm |
| Input/Output signal | dry contact/relay signal |

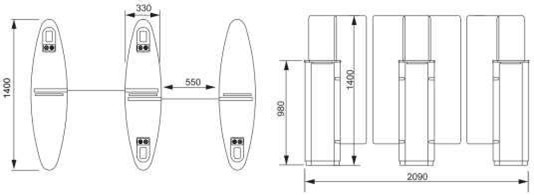

| Dimension(mm) | 1600*300*1000mm |
| IR sensor(pair) | 6 (default) |
| Net Weight(kg) | 70KG |
| Gross weight | 73KG |
| IP | IP55 |
| Operating Temperature | -28 °C- 60 °C |
| Operating Humidity | 5%-85% |
| Working Environment | Indoor/Outdoor covered |
| Voice prompt | Yes |
