TS-WGS-300
Introduction
TECHNOSPACIO sliding speed gates provide aesthetic and effective control of entry or exit at kinds of toll collection systems like train/metro stations, and access control for commercial centers, stadiums, schools, government and private sector buildings etc.

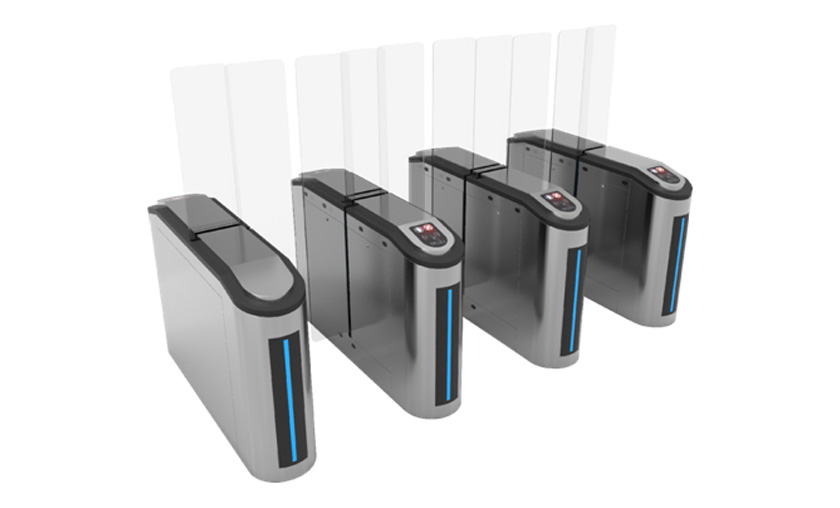

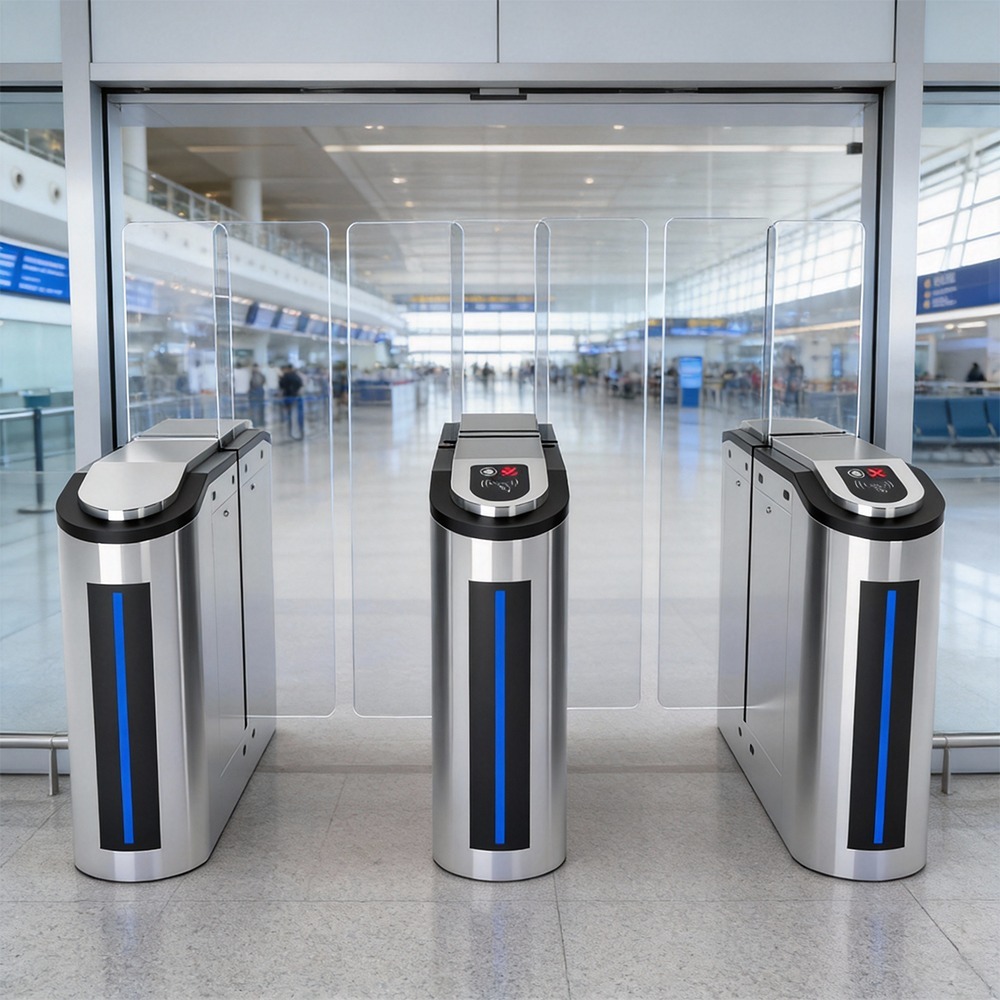

This luxury sliding turnstile TS-WGS-300 features an elegant design, fast speed, highest security, small noise operation, smooth running, and a long life span. It's highly integrated to be compatible with face recognition temperature scanner, fingerprints access control, QR system, ESD access control RFID, etc. Designed for heavy traffic sites with smooth and silent operation. They eliminate the need for attendants at entrances and provide a means to count the number of pedestrians entering into a facility. These turnstiles paired with card readers and electronic operation are the most popular choice for subway systems and can be found in most of them.
Appearance
Premium, high-end design. Main body and side covers made of AISI 304-grade stainless steel. Top lid constructed from black acrylic panel. Flap panel made of 10mm thick acrylic or tempered glass. Equipped with 6 pairs of IR sensors (customizable upon request).
Drive Technology
Brushless servo motor ensures longer lifespan with smooth and durable operation. Self-developed mainboard with ARM-based control technology. Equipped with well-known, reliable brand electrical components.
Safety and User-Orientated Design
Available with 1.2m / 1.5m / 1.8m high retractable glass doors for strict access control. Precision-engineered and durable mechanisms suitable for high-traffic applications. User-friendly indicator lights and voice prompts for enhanced guidance. Anti-following protection. Anti-climbing and anti-crawling features. Anti-panic function for emergency situations. Anti-pinch design for user safety.
Easy Integration
Default configuration includes a card swiping window covered with a black acrylic panel. Broad compatibility with various access recognition methods. Communication interface: Relay signal. Standard electrical interface available for integration with third-party devices. TECHNOSPACIO provides not only turnstile systems but also complete solutions tailored to our customers’ needs — including online/offline ticketing, attendance management, visitor management, EU Green Pass integration, and more.
Swipe Card
- Access with authorized card and payment cards. Swipe to open the way
Iris Recognition
- Use the authorized eyes of Iris Recognition to pass through the entry gates.
Fingerprint Recognition
- Access with authorized fingerprint authentication.
Manual Operation
- Manual use of wired and wireless to open gates for entry.
Coin/Ticket
- Use disposable coins to coin through to enter.
Face Recognition
- Use authorized face recognition to enter.
Vein Recognition
- Use authorized palm vein recognition to pass into.
QR Code
- Scan in with authorization QR code and barcode.
| Brand name | TECHNOSPACIO |
| Mechanism part | Connecting rod structure |
| Motor type | DC brushless motor |
| Flow rate | 30-40people/minute |
| Passage width(mm) | 650-900 |
| Rated Power | 80W |
| Cabinet Material | SUS 304/316 ；1.5mm thickness |
| Infared sensor | 6 pairs |
| Door height(mm) | 800/1200/1500/1800 (optional) |
| Input/Output signal | dry contact/relay signal |

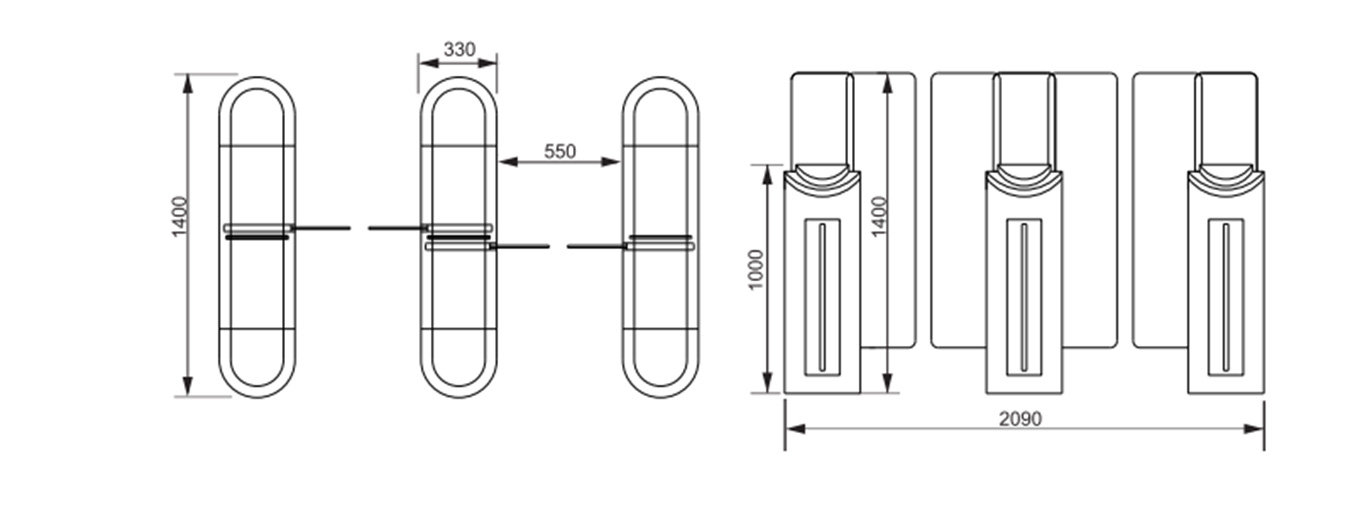

| Dimension(mm) | 1600*300*1000mm |
| IR sensor(pair) | 6 (default) |
| Net Weight(kg) | 75KG |
| Gross weight | 78KG |
| IP | IP55 |
| Operating Temperature | -28 °C- 60 °C |
| Operating Humidity | 5%-85% |
| Working Environment | Indoor/Outdoor covered |
| Voice prompt | Yes |
