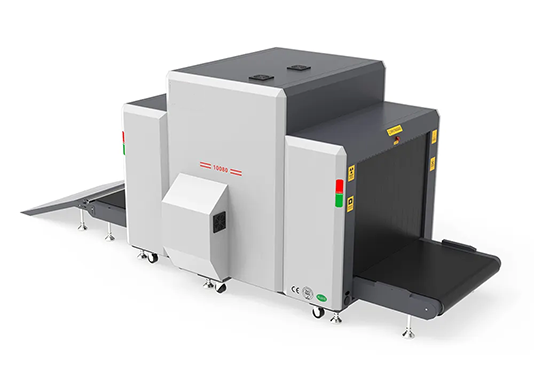

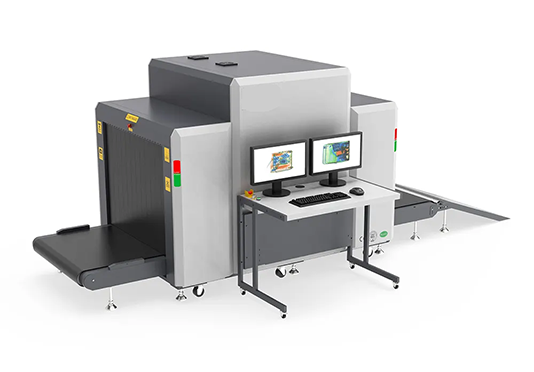

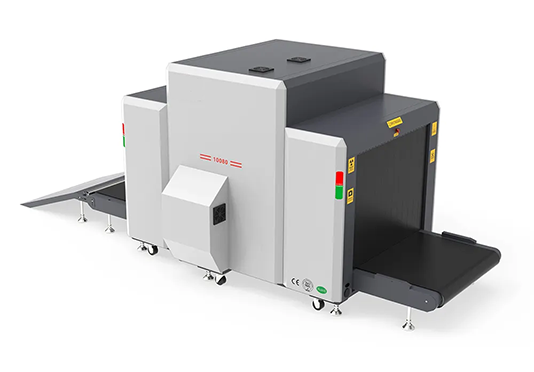

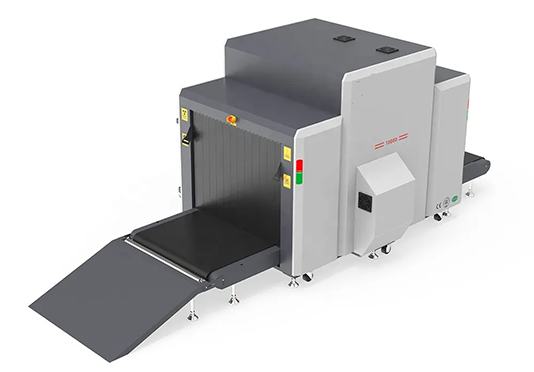

X Ray Baggage Scanner

TS-X-10080B

Introduction

TS-X-10080B is a full-digital security X-ray baggage scanner with clear imaging and strong anti-interference. It features an embedded Linux operating system with a multi-core ARM CPU for efficient, stable, and energy-saving operation. Each unit undergoes strict high and low temperature testing and can run for over 10,000 hours without failure. Certified with CE/FCC/CCC/ROHS.

Manufacturing and Distributing Unique Entrance Automation and Safety Products | Technospacio
System Features
  • Multi-lingual Operation
  • Built-in Test & Diagnosis
  • Secure Access Key
  • UPS (Optional)
  • Threat Alert & Classification
  • Auto Archiving
  • Network Ready
  • Energy Saving Design
  • One-Key Turn Off
  • Drugs & Explosives Inspection
  • Date & Time Indication
  • Baggage Counter

Image System

  • Multi-energy X-ray detection with 12-bit depth
  • High-res imaging and enhancement features
  • Built-in threat and contraband detection

Operating Environment

  • Supports a wide operating and storage temperature range, high humidity tolerance, and international power compatibility.
Unit Weight (kgs) 680
Unit Size (mm) 3138.5 (L) × 1295 (W) × 1716.5 (H)
Gross Weight (kgs, after wooden pallet) 780
Packing Size #1: 226 × 143 × 194 cm
#2: 113 × 91 × 142 cm
Tunnel Size (mm) 1000 (L) × 800 (W)
Conveyor Speed (m/s) 0.22
Conveyor Height (mm) 296
Conveyor Max Load (kgs) 200
X-ray Dose per Inspection 1.5 μGy
X-ray Leakage < 1.0 μGy/h
Penetration 32 mm steel
Wire Resolution Ø 0.102 mm copper wire (AWG38)
Anode Voltage 140 KV
Anode Power 0.4 - 1.2 mA (adjustable)
Generate Angle 80° upward
Generate Direction From top to bottom
Cooling / Duty Cycle Oil Cooling / 100%
Brand TECHNOSPACIO
