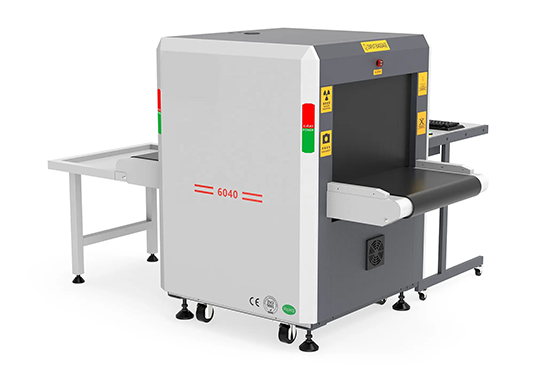

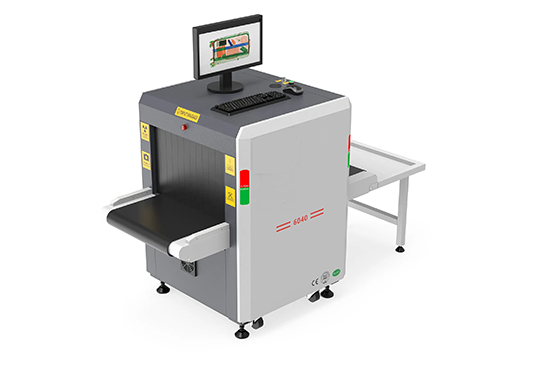

X Ray Baggage Scanner

TS-X-6040

Main features:
  • First full-digital security detector,with clear image and strong anti-interference function.
  • Embedded Linux operating system,more efficient and stable,with multi-core ARM CPU, low power consumption, energy conservation,and environmental protection function.
  • Each machine is tested by strict high and low temperature test before leaving the factory, can run for more than 10000 hours without failure
  • CE/FCC/CCC/ROHS Certificates issued by the Ministry of Public Security
General Specifications
Tunnel Size(mm) 600(W)x400(L)mm
Conveyor Speed(m/s) 0.2+0.02m/s
X Ray Leakage < 0.1μGy/h
Generate Direct from top to bottom+ side to side
Operation Power 220VAC(±10%)50±3HZ
Penetration Resolutoion Top View:φ0.160mm; SideView:φ0.160mm;
Penetration TopView:40mm steel; TopView:40mm steel;
Conveyor Max Load(kgs) 150kg
Noise < 58dB(A)
X Ray Dose Per Each Inspection ≤3.0μGy
Generate Angle 80°
Operation Temperature/Humidity 0℃ -45℃ /20%-95%
